Table mounting box 7M grey - 19787

Pdf

19787
System infrastructure / Enclosures and control units / Connector block boxes / Desktop

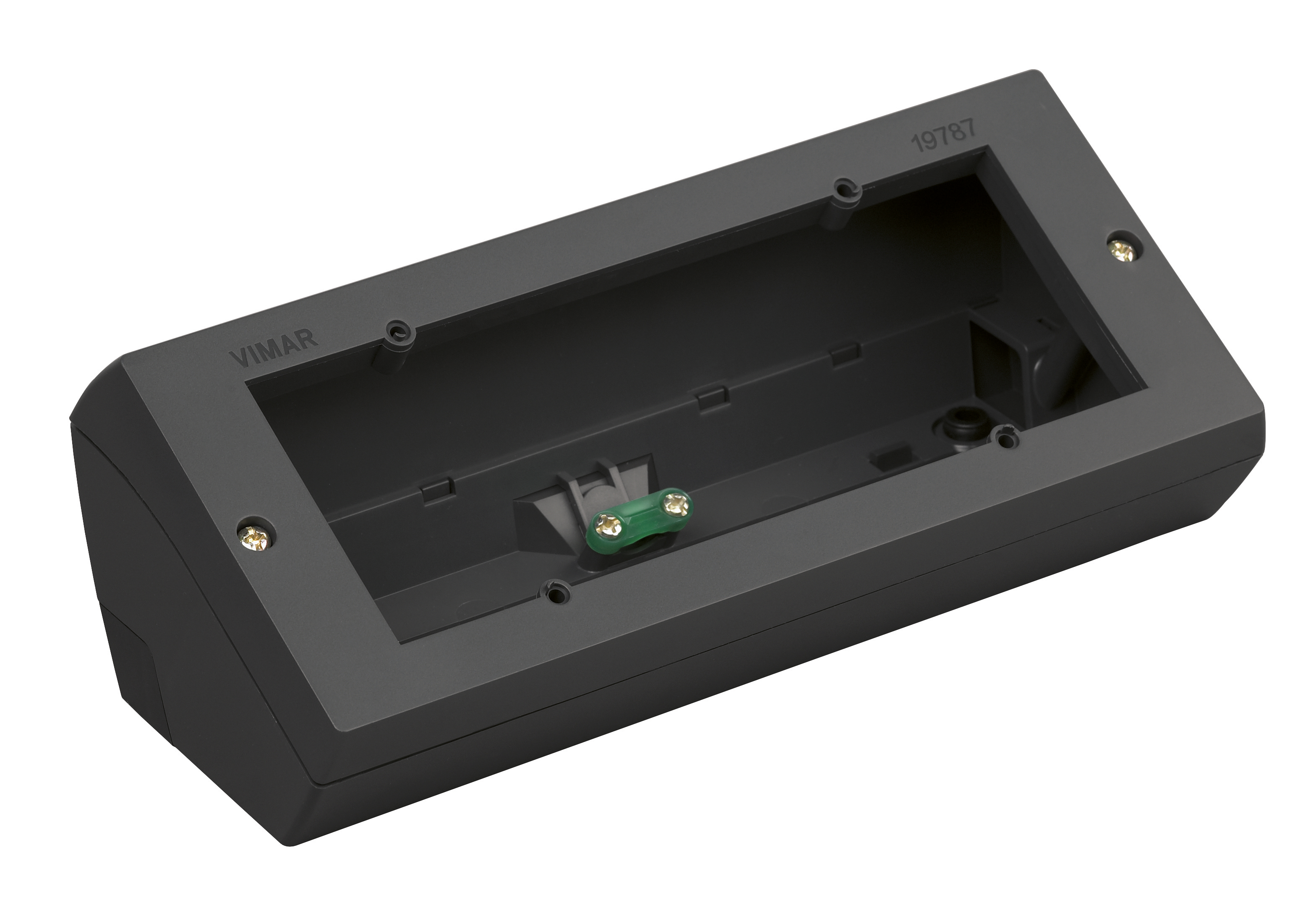

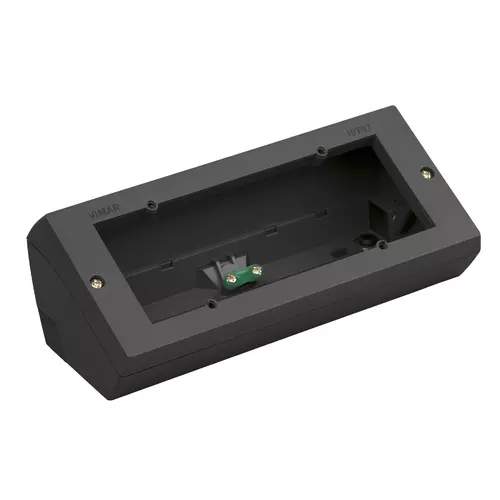

Table mounting box 7M grey
7-module table mounting box, grey. To complete with mounting frame and cover plate

Product Status
3 - Active

Class group
Domestic switching devices
Class
Surface mounted box for flush-mounted switching equipment
Assembly arrangement
Other
Suitable for modular domestic switching devices
Yes
Number of modules (module system)
7
Number of units
7
Mounting direction
Horizontal
Material
Plastic
Material quality
Other
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
With cover frame
No
With duct entry
No
With cable entry
Yes
With screw gland entry
No
Shock resistant
Yes
Degree of protection (IP)
IP20
Device width
206,00 mm
Device height
80,00 mm
Device depth
67,60 mm

00. CE Marking - EU

43. UKCA mark - Great Britain

Minimum order quantity: 2 NR

Barcode

Barcode Qty 1 NR
8007352437029
1 NR
21x9x7.5 [cm]
239.2 [g]
Barcode Qty 2 NR
8007352437036
2 NR
24.4x13.9x10.1 [cm]
561.8 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
