Wi-Fi access point 220-240V 2M white - 30195.B

Pdf
Vimar - 30195.B - Wi-Fi access point 220-240V 2M white
Vimar - 30195.B - Wi-Fi access point 220-240V 2M white

30195.B
System infrastructure / Netsafe structured wiring / LINEA / Devices

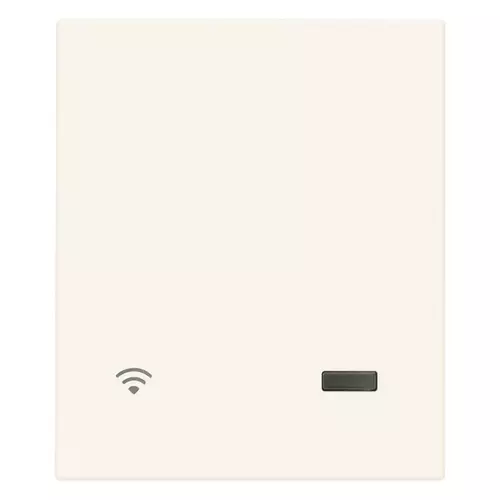

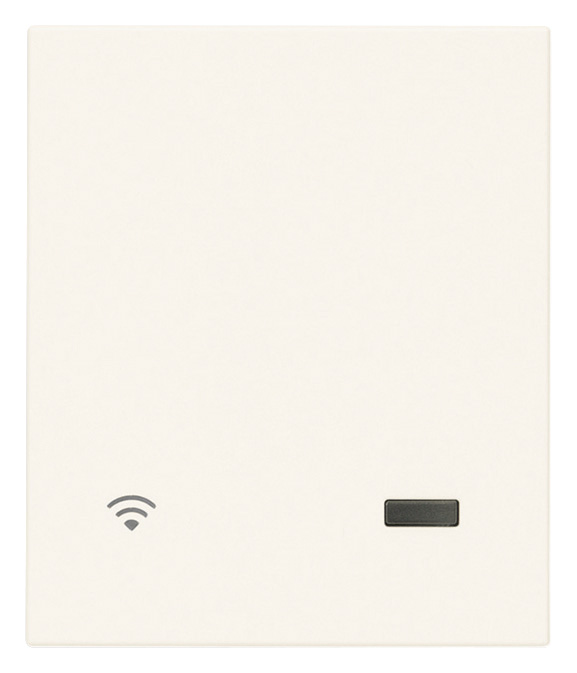

Wi-Fi access point 220-240V 2M white
72.2 Mb/s Wi-Fi access point with 2 LAN 10-100 Mb/s ports, input for remote Wi-Fi radio ON/OFF push button, 220-240V~ 50/60Hz power supply, white - 2 modules

Product Status
3 - Active

Class group
Data and telecommunication
Class
WLAN access point
Max. data transmission rate
54
Frequency band
2.4 GHz
Radio protocol
IEEE 802.11 b/g/n
Ethernet
Yes
Number of ports 10/100 Mbps LAN
2
Number of ports 10/100/1000 Mbps LAN
0
Number of ports 1000 Mbps Mini GBIC
0
Number of ports 10 Gbps Mini GBIC
0
Number of ports 100 Mbps POF
0
Number of ports 1000 Mbps POF
0
Firewall
No
Connection for external antenna
No
Bridge function
Yes
Repeater function
No
Power over Ethernet
No
Colour
White
Width
44,80 mm
Height
5.280,00 mm
Depth
50,60 mm
Degree of protection (IP)
IP40
Suitable for 19 inch mounting
No
Built-in
No
Suitable for DIN rail (top hat rail) mounting
No
Pole fastening
No
Flush-mounted installation
Yes
Suitable for wall mounting
Yes
Socket outlet adapter
No

00. CE Marking - EU

37. Marking - Morocco

43. UKCA mark - Great Britain

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352690752
1 NR
5.7x5.3x7.7 [cm]
70.1 [g]
Barcode Qty 5 NR
8007352690769
5 NR
21.4x11.6x6 [cm]
350.5 [g]
