Dial thermostat 100-240V 2M Next - 02970.N

Download as PDF PDF Add to portfolio
Immagine 02970.N
download product photo

02970.N
Wiring devices / Traditional wiring devices / Shared components / Devices

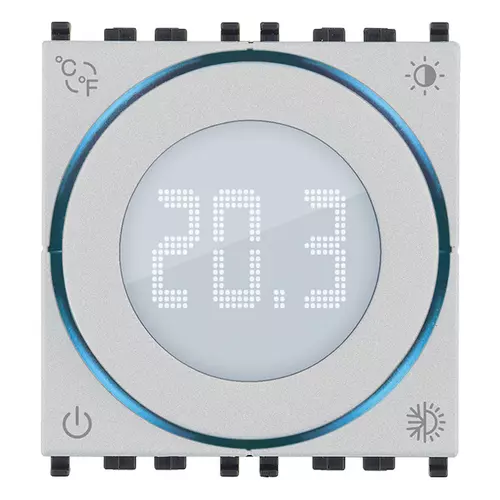

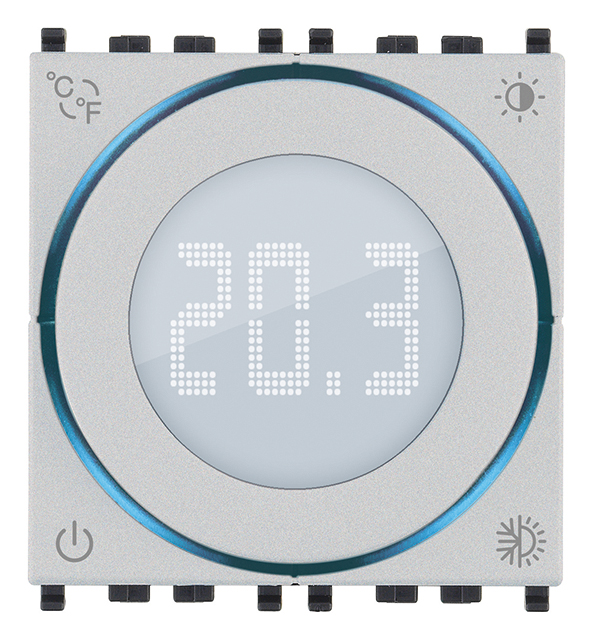

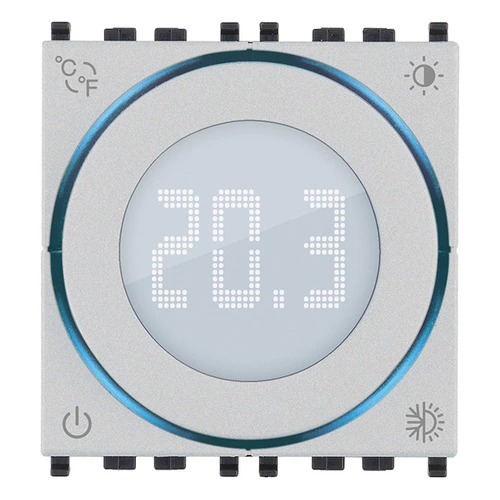

Dial thermostat 100-240V 2M Next
Dial thermostat with relay output 5(2) A 240 V~, heating and air conditioning in ON/OFF mode, class I temperature control device (contribution 1%), white LED backlighting with brightness control, 100-240 V 50/60 Hz power supply, Next - 2 modules. To be completed with Eikon, Arké, Plana cover plates. For Idea, can be installed using the dedicated mounting frame 16723

Product Status
3 - Active

Class group
Stats, switches and controllers
Class
Room thermostat
Model
On/Off
Type of power supply
230 V AC
With receiver
No
External sensor
Yes
Thermal feedback
Parallel
Control characteristic
Other
Suitable for heating
Yes
Number of heater outputs
1
Number of cooler outputs
1
Differential value
0,00 - 1,00 k
Adjustable differential
Yes
Temperature readable
Yes
With sound indicator
No
Sensor/feeler type
Resistance sensor
Mounting method
Flush-mounted
Number of modules (module system)
2
With display
Yes
Operation
Turn
With tap water circuit
No
Max. contact voltage
230 V
Max. contact load
5 A
Degree of protection (IP)
IP20
Explosion-proof
Yes
Colour
Silver
Diameter
0,00 mm
Class of the temperature control
I

00. CE Marking - EU

37. Marking - Morocco

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352688469
1 NR
6x5.4x5.2 [cm]
68.28 [g]
Barcode Qty 60 NR
8007352746374
60 NR
37.5x30x13.5 [cm]
4,404 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
