1P 10AX 2-way switch white - 14004

Pdf
14004

Plana / Devices / Basic devices

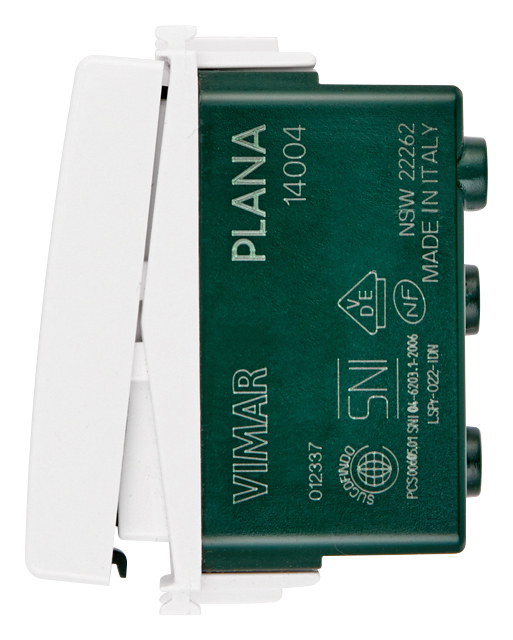

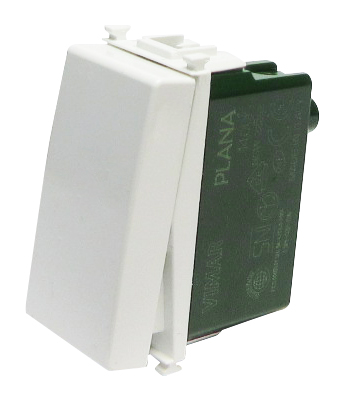

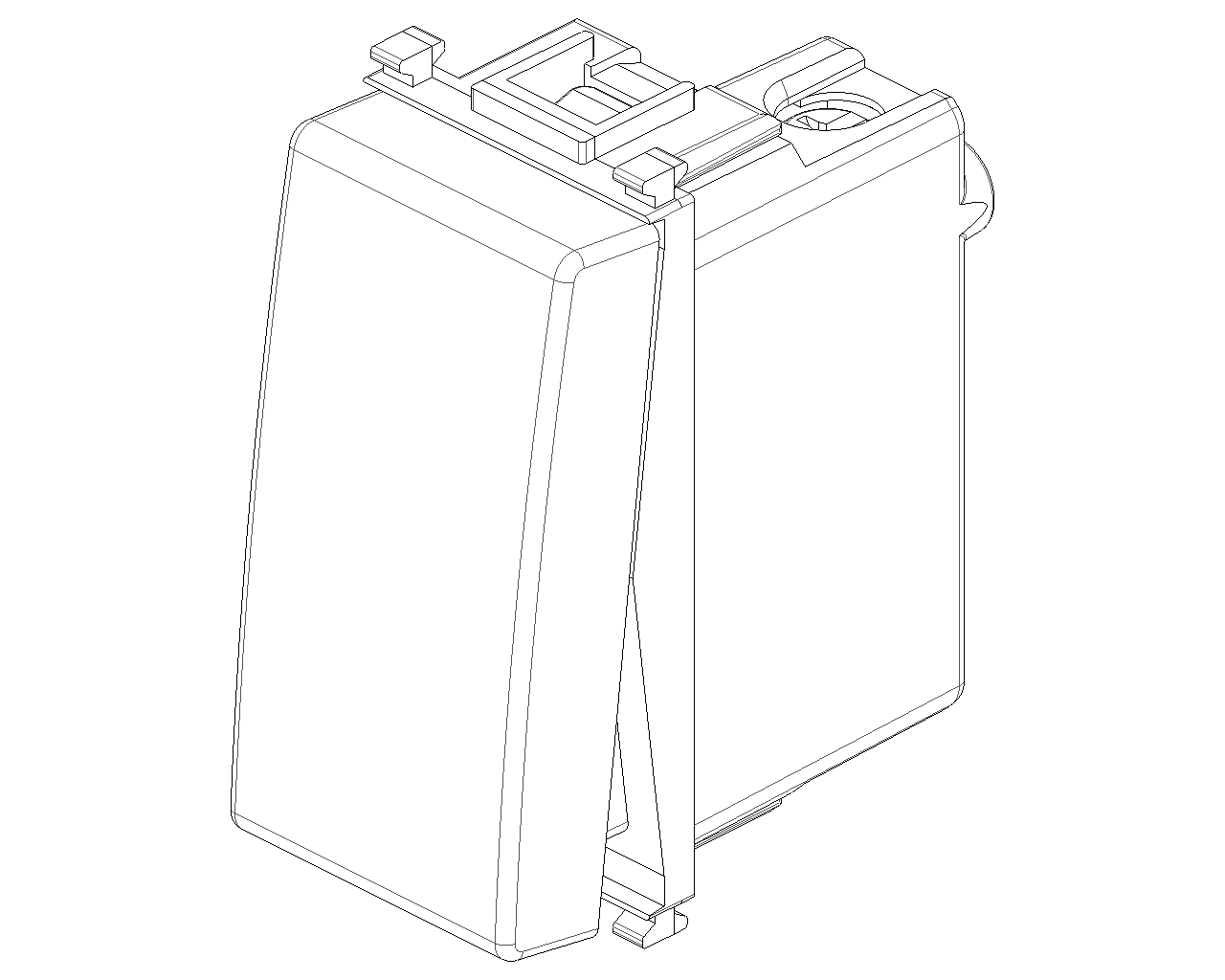

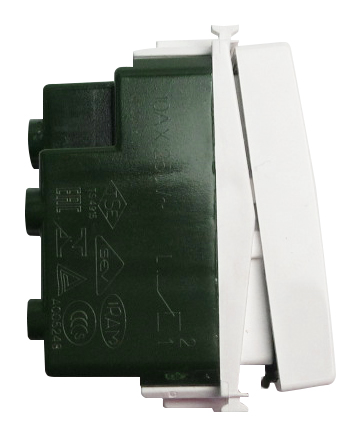

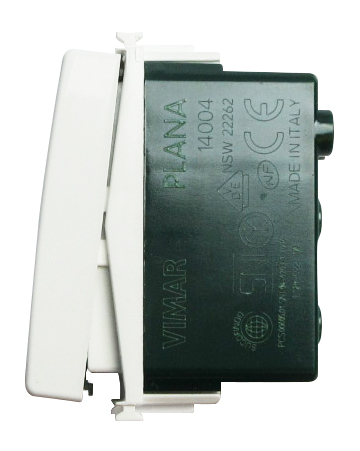

1P 10AX 2-way switch white
1P 10 AX 250 V~ 2-way switch, lightable, replaceable button, white. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)

  • Modular series for flush mounting and surface mounting
  • The efficient, energy-saving LED backlighting available in several colours makes the controls visible even in the dark, while the laser-engraved or customised symbols always clearly indicate the various functions
  • Vimar patented Plack Clack® fixing system, which gives the lighting device added strength once the cover plate is installed
  • Polished and shiny dirt-proof surfaces

Product Status
3 - Active

You may also be interested in

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10 A
Feedback-signal contact
No

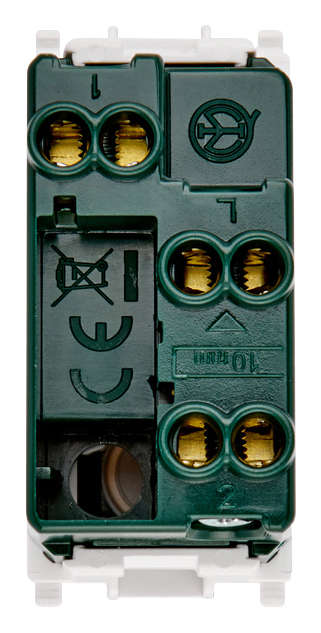

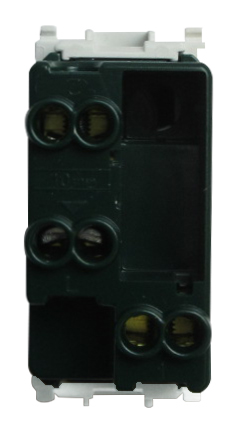

Connection type
Screwed terminal
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm

00. CE Marking - EU

07. INGCER - Chile

10. EAC Eurasian Customs Union

13. SNI - Indonesia

19. NOM - Mexico

20. IRAM - Argentina

31. TISI - Thailand

37. Marking - Morocco

92. RoHS UAE

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352106390
1 NR
4.1x2.8x5.3 [cm]
28.8 [g]
Barcode Qty 50 NR
8007352106406
50 NR
21.6x11.6x14.3 [cm]
1,538 [g]
Barcode Qty 500 NR
8007352263154
500 NR
57.5x22.5x30 [cm]
15,836 [g]
Question: Are other colours available?
Answer: 14004 .SL 1P 10 AX 2-way switch, back-lightable, replaceable silver button
Question: Can the button be backlit?
Answer: It can be backlit using a dedicated pre-wired signalling unit (code 00931) or with LED signalling units in various colours and voltages.
Question: What cable section can I secure with screw terminals?
Answer: The terminals can clamp flexible or semi-rigid cables with a section of between 0.5 mm² and 2.5 mm².
