TORCIA hand lamp 230V grey - 16450

Pdf

16450
Wiring devices / Traditional wiring devices / IDEA / Devices

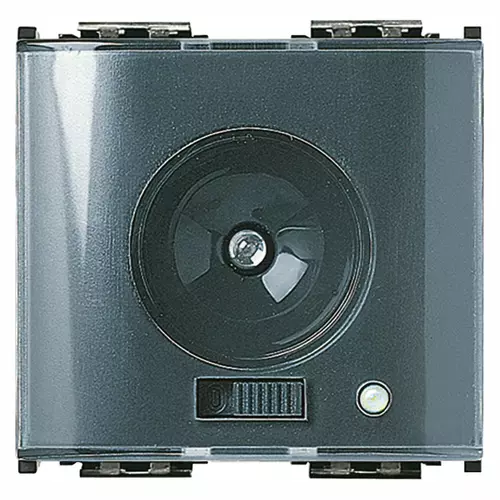

TORCIA hand lamp 230V grey
TORCIA, electronic hand lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, automatic emergency device, replaceable rechargeable Ni-MH battery, 2 hours of operating, ø 4 mm pins, 19 mm distance between centres + charging socket outlet, grey - 2 modules

  • Can be used as auxiliary lighting in the event of a power failure when inserted in the charger socket, while turning into a normal portable rechargeable hand lamp when removed
  • Power supply: 230 V~ and 4-element replaceable rechargeable Ni-MH 4.8 V 80 mAh battery allowing the use of the device as an emergency light
  • Slide switch to turn the TORCIA hand lamp on and off when it is used as a portable device or to enable or disable the auxiliary lighting function
  • Battery charging time of 48 h and operating time after charging approximately 2 h

Product Status
3 - Active

Sheets, Manuals, Documentation

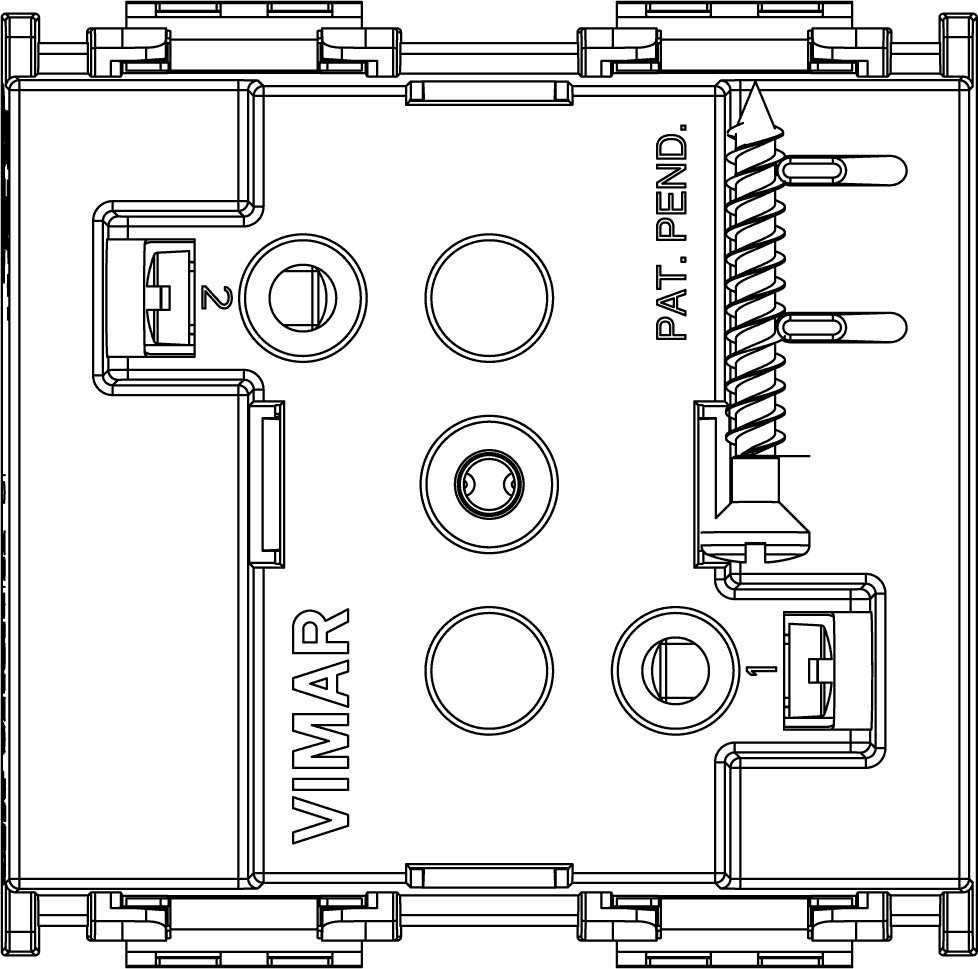

Drawings

Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Plastic
Housing colour
Grey
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W
Width
49,70 mm
Height/depth
50,10 mm
Built-in width
49,70 mm
Built-in height/depth
39,20 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352002098
1 NR
6x5.4x5.3 [cm]
93.67 [g]
Barcode Qty 10 NR
8007352002197
10 NR
28.1x13.1x6 [cm]
1,013.07 [g]
Barcode Qty 120 NR
8007352657182
120 NR
38.5x29x30 [cm]
12,602.4 [g]
Barcode Qty 2,520 NR
8007352587342
2,520 NR
120x80x105 [cm]
271,650 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
