10 buttons in 2 rows - 41010

41010
ELVOX Door entry system / Video entry outdoor stations / Shared A/V components / Modules

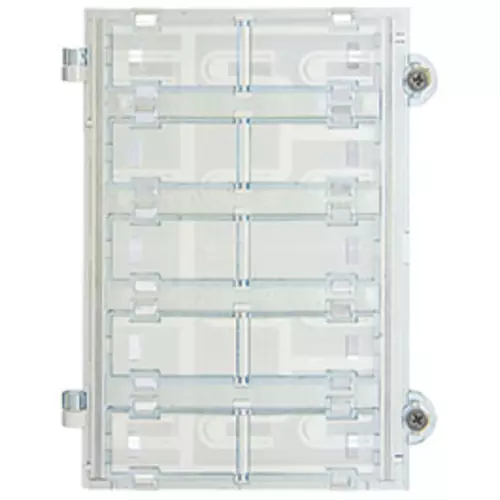

10 buttons in 2 rows
Electronic unit with 10 buttons in two rows backlit with white LEDs, photocell and manual LED brightness adjustment via audio or audio-video units, complete with frame to be completed with single or double axial buttons, rocker buttons, fixed buttons

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (379 kb)
• Label printer module for entrance panels (2191 kb)

Video

• Pixel video door entry panel
• Retrofit with existing back boxes
• After Installation
• Interacting with the TAB Free
• Installation and configuration

---

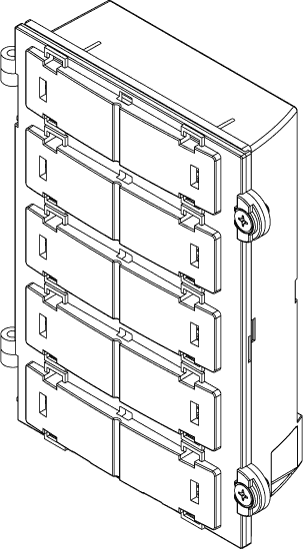

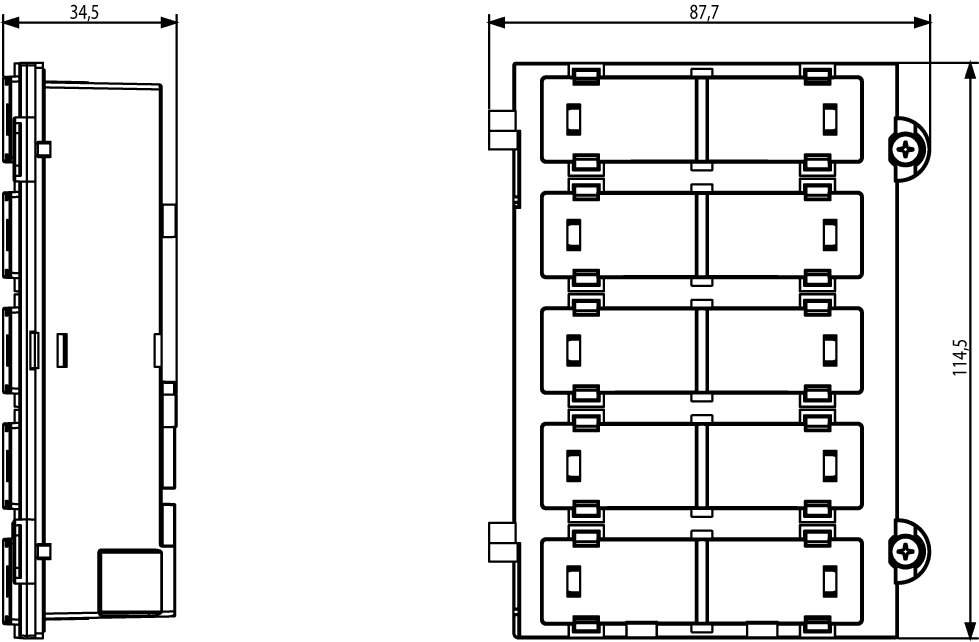

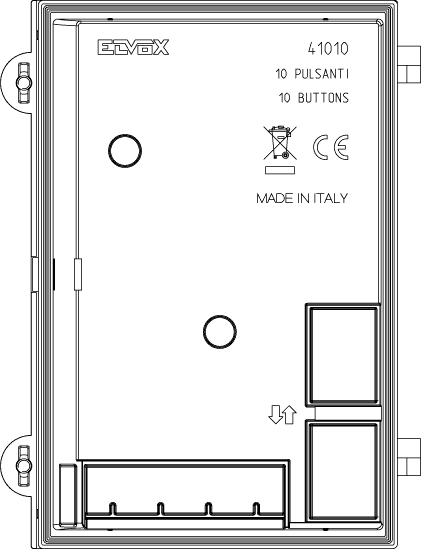

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Functional module for door communication

Model
Call display

Installation technique
Other

Height
114,50 mm

Depth
34,50 mm

Number of call buttons
10

With day/night function
No

Zoom, pan/tilt function
No

Manual adjustable camera
No

Hearing aid compatible
No

Colour
Other

00. CE Marking - EU

35. RCM - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

92. RoHS UAE

99. WEEE Directive

Minimum order quantity: 1 NR

---

Barcode

8013406273314

1 NR

18x12x5.5 [cm]

189.6 [g]

8013406274328

20 NR

38.5x29.5x25 [cm]

4,204 [g]
