Bullet IR IP 2Mpx cam - 2,8mm H.265 - 4621.028B

Download as PDF PDF Add to portfolio
Immagine 4621.028B
download product photo

4621.028B
Safety / ELVOX CCTV / IP / Cameras

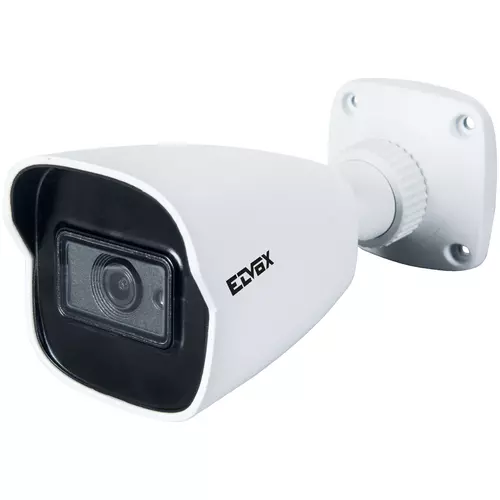

Bullet IR IP 2Mpx cam - 2,8mm H.265
Day & Night colour IP Bullet camera, CMOS 1/2.8” sensor, 2 Mpx resolution (1920x1080), 2.8mm fixed focus lens, mechanical IR filter, H.265 Dual Stream, PoE or 12 VDC power supply, SD CARD slot, IR 20-30 m, AV, WDR, ROI, 3DDNR, HLC, BLC, Mask, Motion, Smart IR, RTSP functions, ONVIF protocol, protection degree IP67. Dimensions: 75x75x168 mm. Weight 435 g

Product Status
2 - Will be discontinued

You may also be interested in

46917.005
46917.005 - Pole bracket IP cams
46922.040
46922.040 - IP camera contacts bracket

Sheets, Manuals, Documentation

Class group
Alarm installations, emergency call and signalling
Class
Camera for surveillance system
Model
Standard (Fixed)
Construction type
Bullet shape
Thermal camera
No
Number of pixels (Megapixel)
2
With lens
Yes
Modular (lens and camera separated)
No
Shutter control
DC
Lens connection
Other
Motor zoom
No
Suitable for wall mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for corner mounting
No
Suitable for surface mounting
Yes
Flush-mounted installation/built-in installation
No
Suitable for outdoor use
Yes
Communication medium wired
Yes
Communication medium wireless
No
Type of interface
Wi-Fi
Protocol
TCP/IP
Power over Ethernet (PoE)
802.3af (PoE)
Picture system
PAL
Frame rate
25
Property picture system
Colour
With infrared lighting
Yes
Max. infrared reach
30 m
With white light
No
Max. white light reach
0 m
Supports H.264 codec
Yes
Supports H.265 codec
Yes
Supports Motion JPEG codec
Yes
Supports MPEG-4 codec
No
With video motion detector
Yes
With integrated AI analysis
Yes
With slot for memory card
Yes
With memory card
No
Memory capacity
256
Number of digital inputs
1
Number of digital outputs
1
With integrated audio analysis
No
HDMI-connection
No
Mini HDMI-connection
No
VGA-connection (D-Sub 15-pole)
No
DVI-connection
No
BNC-connection
No
DisplayPort-connection
No
Mini DisplayPort
No
S-Video-connection
No
USB-C-connection
No
Vandal proof
No
Impact strength
IK00
Degree of protection (IP)
IP66
With microphone
Yes
With loudspeaker
No
Supply voltage
12,00 - 12,01 V
Voltage type
DC
Colour
White
Diameter
7.500,00 mm
Height
75,00 mm
Width
7.500,00 mm
Depth
168,00 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352700727
1 NR
23x10.5x11 [cm]
557 [g]
