02974.M
Wiring devices / View Wireless wiring devices / Shared components / Devices

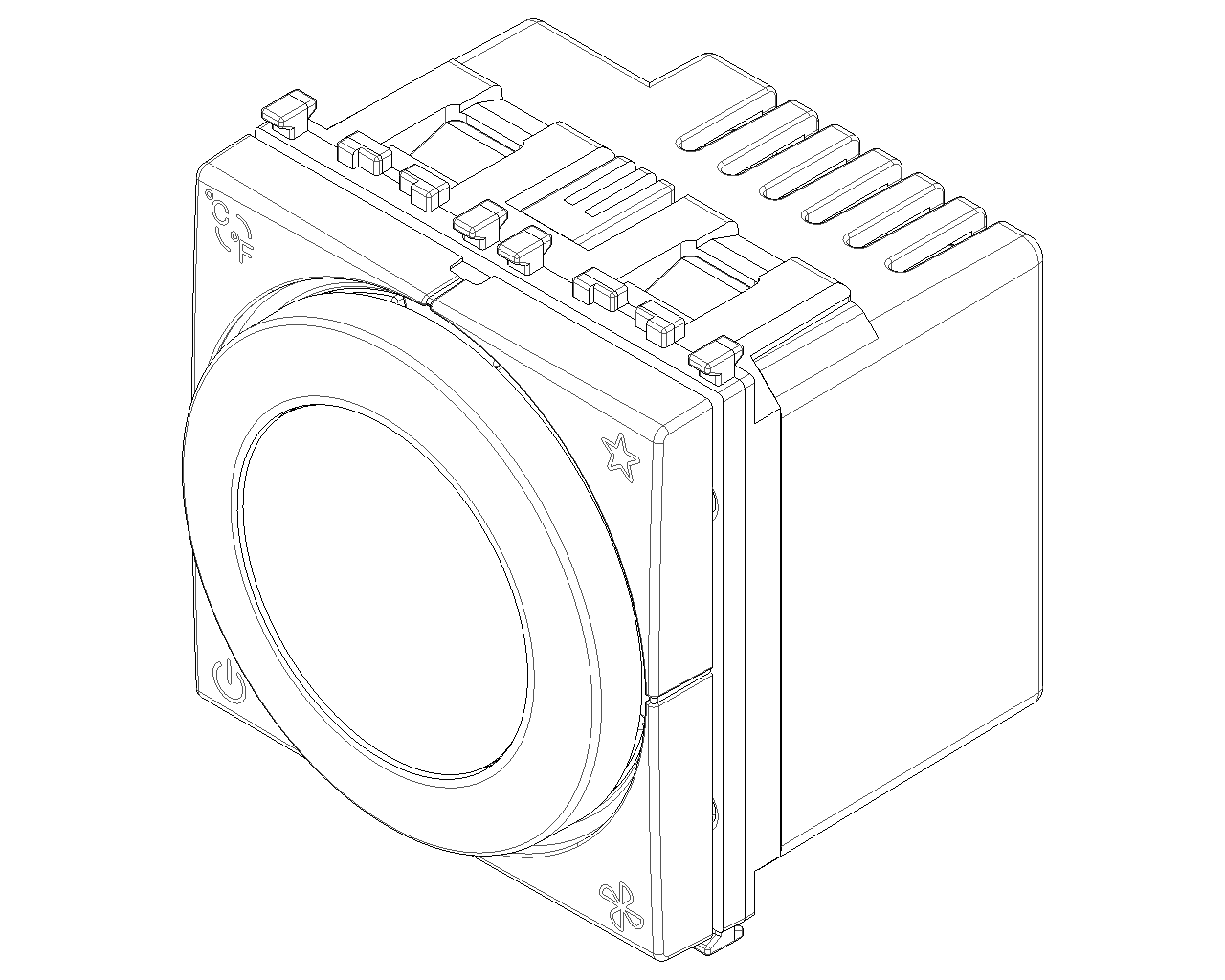

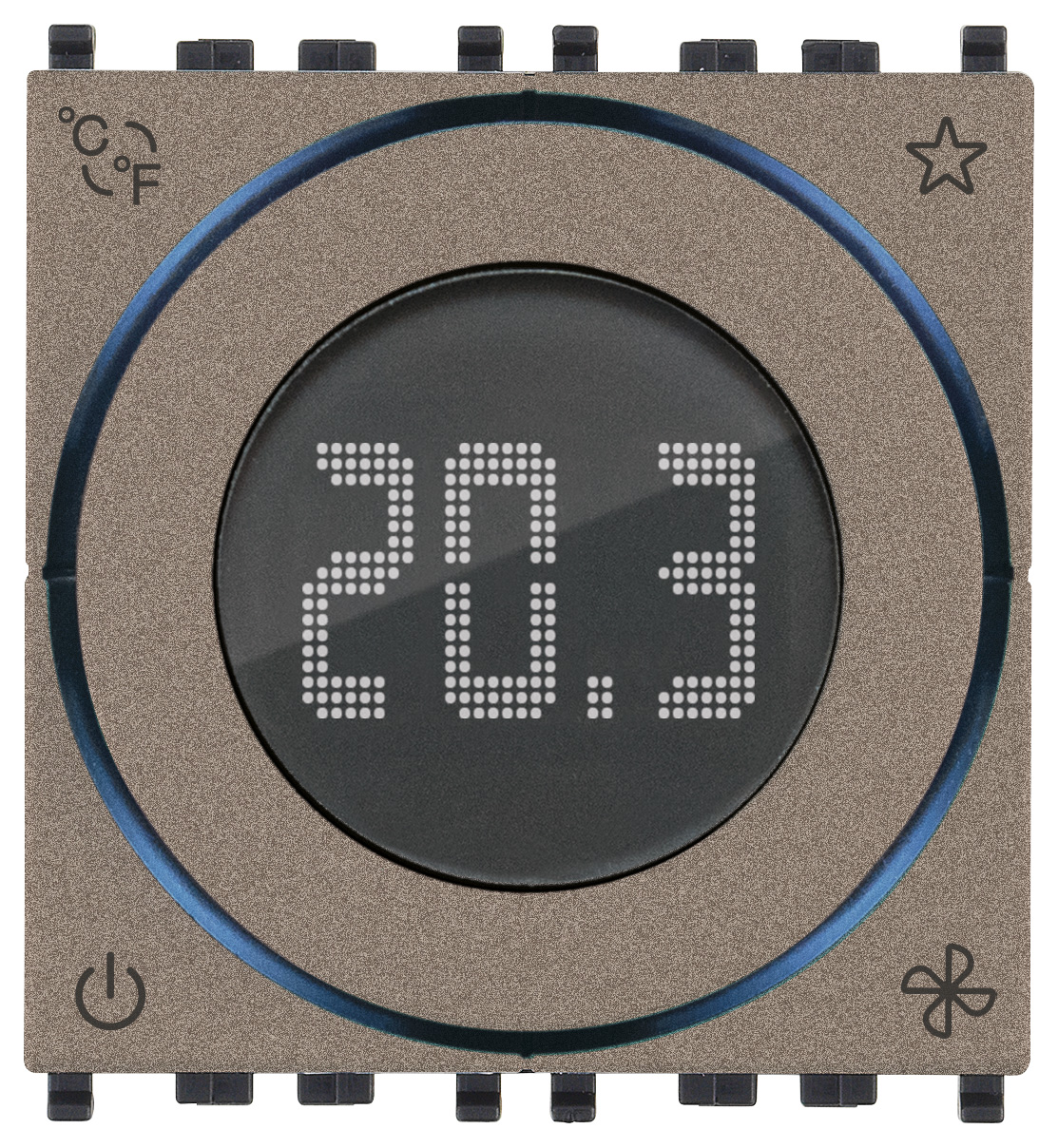

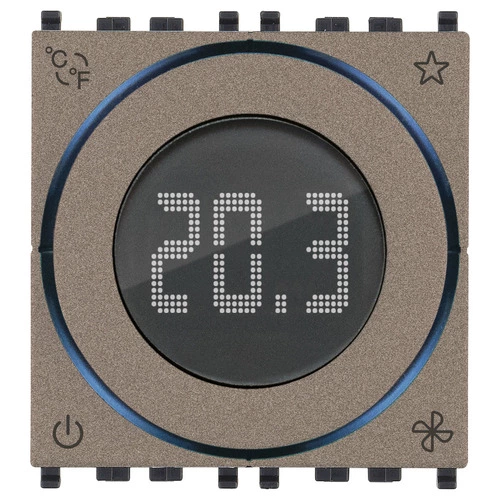

IoT dial thermostat FAN 2M Metal

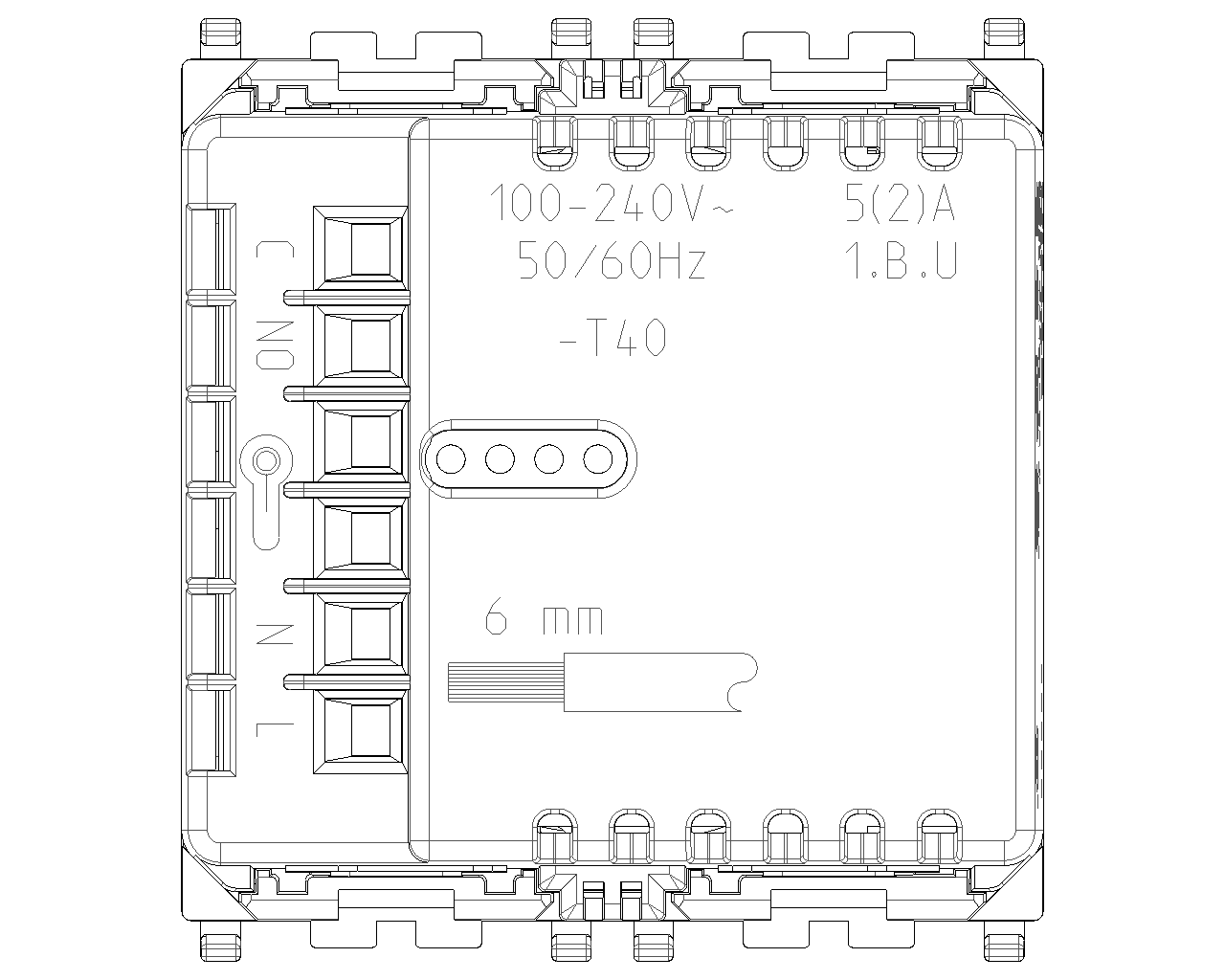

Dial thermostat with relay output NO 5(2) A 240 V~, 3-speed and proportional fan coil control, IoT technology on Bluetooth technology 5.0 standard for the creation of View Wireless mesh system, 1 input for external temperature sensor, heating and air conditioning in ON/OFF and PID mode, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, white LED backlighting with brightness control, 100-240 V 50/60 Hz power supply, Metal - 2 modules. To be completed with Eikon, Arké, Plana cover plates. For Idea, can be installed using the dedicated mounting frame 16723
- Configuration from View Wireless App for Bluetooth technology system and Amazon App for Zigbee technology
产品状态
3 - Active
单, 说明书, 文档
- Light multilanguage instructions sheet (1076 kb)
- Foglio istruzioni Full (2175 kb)
- Notice technique Full (2193 kb)
- Ficha de instrucciones Full (2191 kb)
- Full instructions sheet (2182 kb)
- Φυλλάδιο οδηγιών Full (2335 kb)
- Anweisungsblatt Full (2192 kb)
- ورقة الإرشادات Full (2356 kb)
- Manuale app View Wireless (20463 kb)
- Manual app View Wireless (42960 kb)
- Manual View Wireless app (42999 kb)
- Installationsanleitung View Wireless (42993 kb)

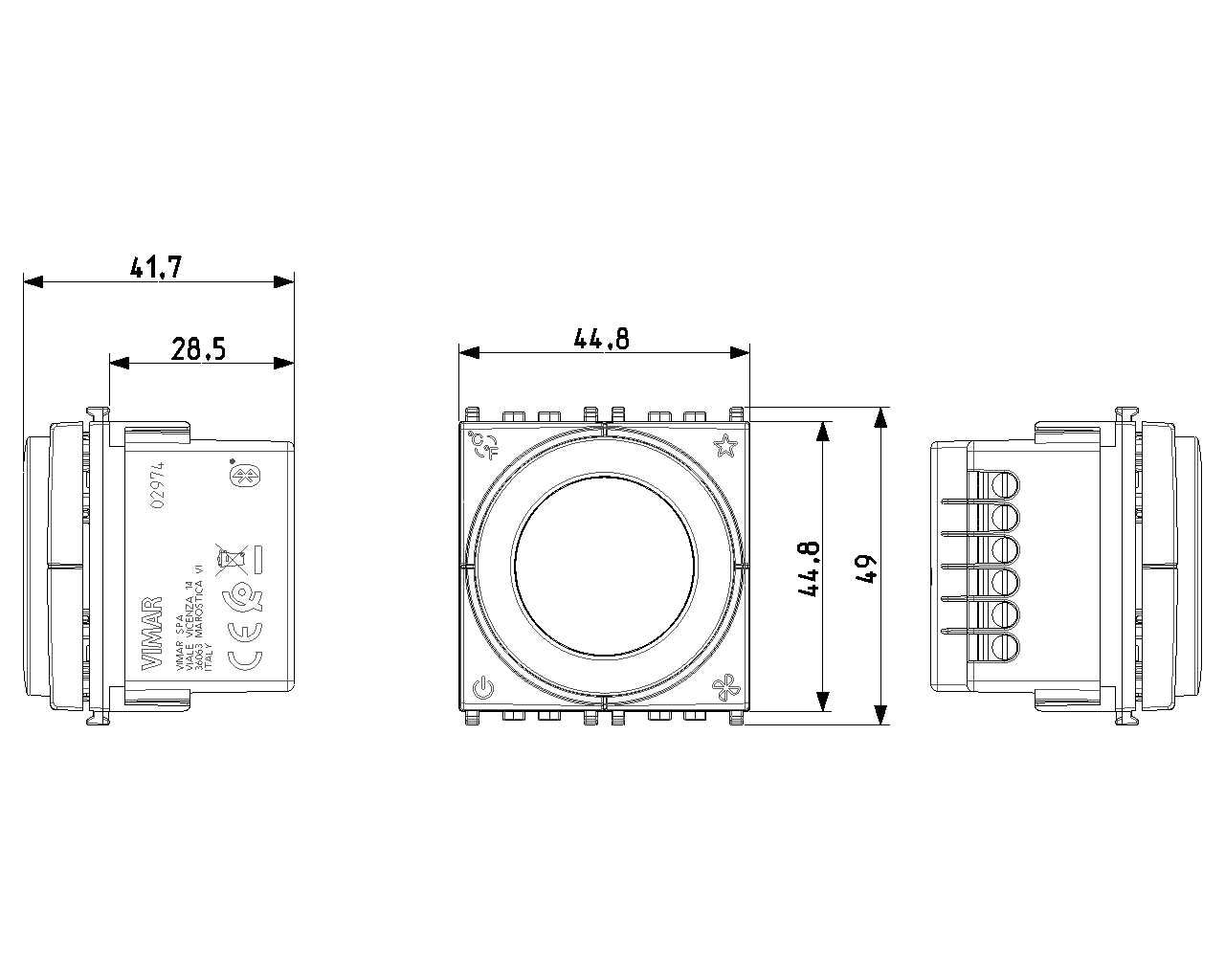

图纸
Stats, switches and controllers
Room thermostat
Silver
37. Marking - Morocco
42. Zigbee certified
条形码
分享
合法
Vimar保留随时修改所示产品的特性的权利，恕不另行通知。 安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。 有关产品卡信息的使用条件，请参阅 使用条件。
