LED-emergency lamp 1M 230V grey - 20382

Pdf
Vimar - 20382 - LED-emergency lamp 1M 230V grey
Vimar - 20382 - LED-emergency lamp 1M 230V grey

20382
Wiring devices / Traditional wiring devices / EIKON / Devices

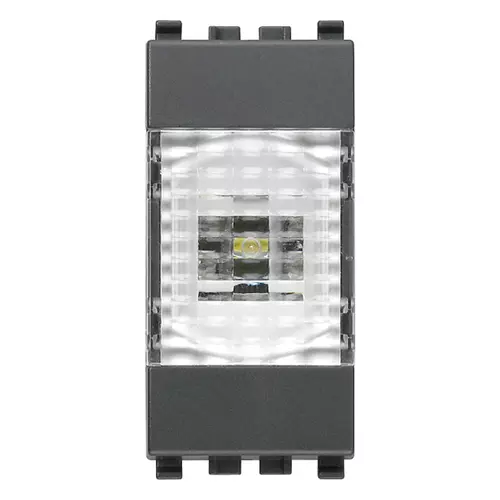

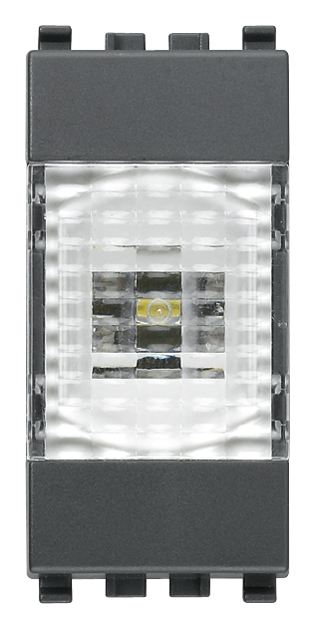

LED-emergency lamp 1M 230V grey
Lamp with high-efficiency LED, supply voltage 230 V~ 50-60 Hz, automatic emergency device, replaceable rechargeable Ni-MH battery, 2 hours of operating time, grey

产品状态
2 - Will be discontinued

其他可选产品

20398
20398 - LED auxiliary emergency lamp 1M
Class group
Luminaires
Class
Emergency luminaire
Mounting method
Built-in
Monitoring equipment
None
With remote switch connection
No
Power supply system
Peripheral (individual battery)
Battery quality
NiMH
Lamp type
LED not exchangeable
With light source
Yes
Housing material
Plastic
Housing colour
Grey
Material cover
Without cover
Voltage type
AC
Nominal voltage
230,00 - 230,01 V
Degree of protection (IP)
IP40
Protection class
II
Max. system power
1,00 W
Rated luminous flux according to IEC 62722-2-1
3
Width
22,30 mm
Height/depth
47,20 mm
Built-in width
22,30 mm
Built-in height/depth
37,00 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352269651
1 NR
5.1x2.8x5.3 [cm]
48.4 [g]
Barcode Qty 10 NR
8007352269668
10 NR
14.4x11.6x6 [cm]
532.07 [g]
Barcode Qty 120 NR
8007352657021
120 NR
36.5x33x13.5 [cm]
6,804 [g]
