Plate 3M glass milky white - 22653.71

Pdf
22653.71

Eikon EXÉ / Cover plates / Glass cover plate

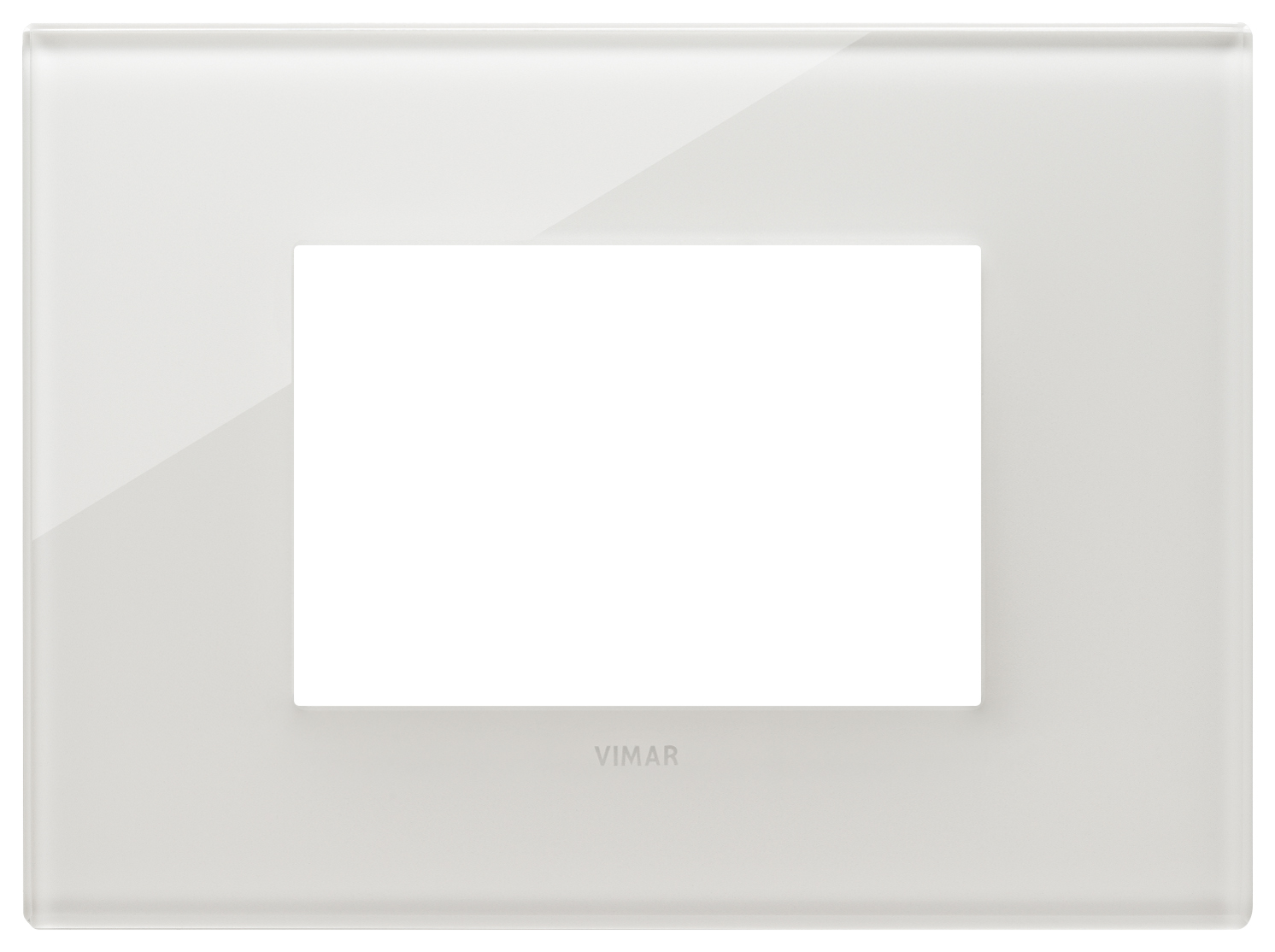

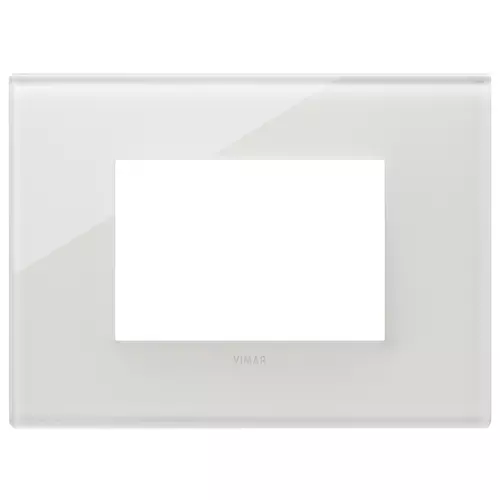

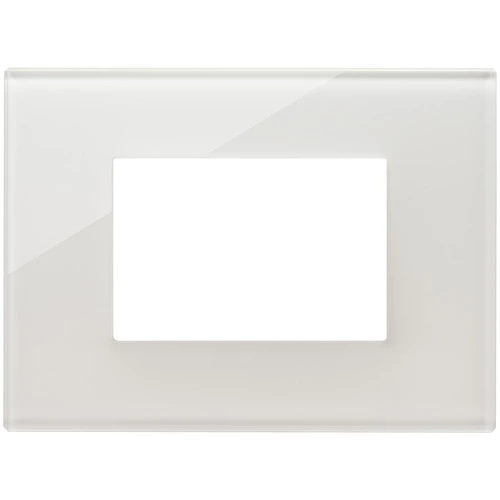

Plate 3M glass milky white
3-module cover plate, crystal, milky white

产品状态
3 - Active

您可能也感兴趣

图纸

Class group
Domestic switching devices
Class
Cover frame for domestic switching devic
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (
3
Number of modules vertical (mo
1
Number of gangs
0
With mounting grid
Yes
Suitable for flush-mounted ins
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installa
Yes
Label space/information surfac
Yes
Material
Glass
Material quality
Real glass
Surface protection
Other
Surface finishing
Glossy
Colour
Cream white (electro white)
RAL-number (akin)
9010
Transparent
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting

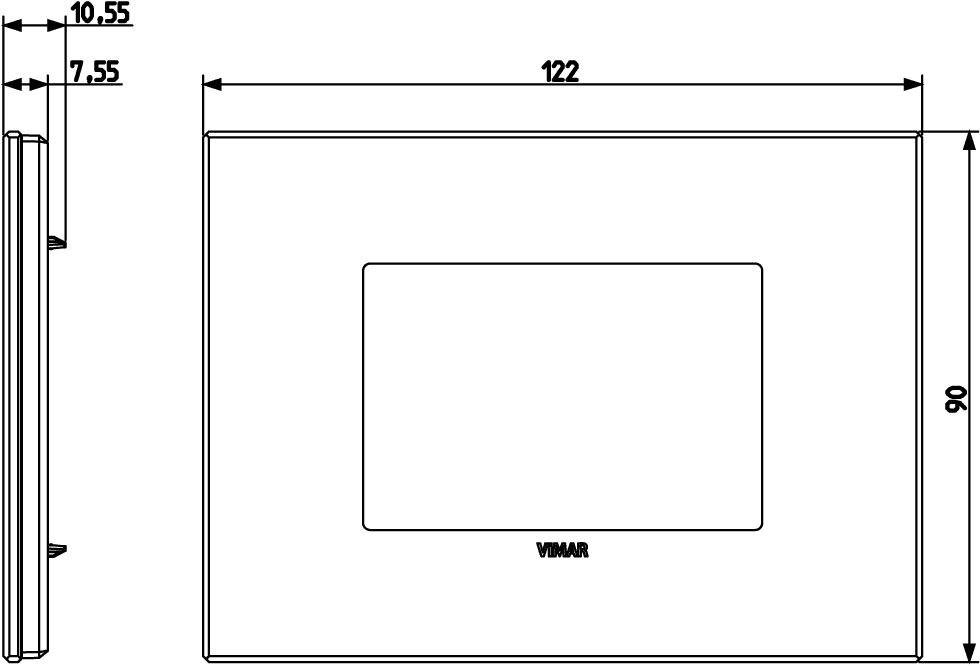

Width
122,00 mm
Height
90,00 mm
Depth
10,55 mm
Built-in width
122,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 1 NR

条形码

Barcode Qty 1 NR
8007352607880
1 NR
15.8x14.1x3.9 [cm]
140.4 [g]
