Zwei 2P+E 15ASteckd. Amerikanisch+GFCI c - 00296.CM

Pdf
00296.CM

Neve Up / Geräte / Sondersteckdosen mit Schutzschalter

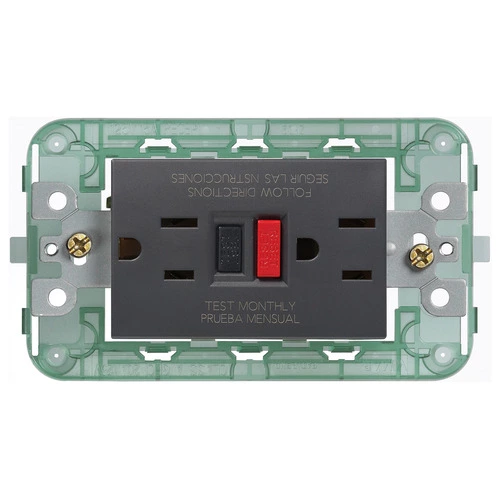

Zwei 2P+E 15ASteckd. Amerikanisch+GFCI c
Zwei Steckdosen 2P+E 15 A 125 V~ 60 Hz amerikanischer Standard mit Fehlerstromschalter (GFCI), Gerät komplett mit Halterung zur Ergänzung mit 3-Modul-Abdeckrahmen Plana oder Neve Up, Carbon Matt

Produktstatus
3 - Aktif

Zeichnungen

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Steckdose
Model
American National Standard
With built-in USB power supply
No
Number of modules (module system)
3
With hinged lid
No
Label space/information surface
Yes
Colour
Anthracite
RAL-number (similar)
7016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Anti-bacterial treatment
No
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
125 v
Frequency
60,00 - 60,01 HZ
Rated fault current
6 mA
Depth of device
41,10 mm

19. NOM - Mexiko

Mindestbestellmenge: 5 NR

Barcode

Barcode Qty 1 NR
8007352667327
1 NR
11,8x6,5x4,11 [cm]
149,47 [g]
Barcode Qty 5 NR
8007352667334
5 NR
29,5x13,5x7,7 [cm]
785 [g]
Barcode Qty 95 NR
8007352667341
95 NR
54,5x37x28,5 [cm]
15.960 [g]
