Taster 1P NC - 00900

Pdf
00900

Beleuchtungen / Geräte / Steuerkontrolle

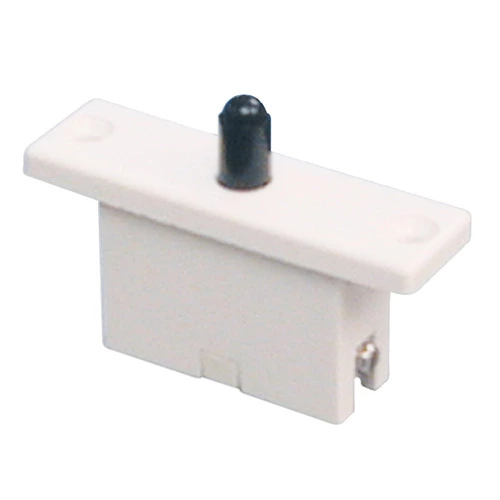

Taster 1P NC
Kühlschranktaster 1P NC 250 V~ 60 W, Buchsenklemmen, weiß

Produktstatus
3 - Aktif

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Geräte-Einbauschalter und -taster
Model
Push button, normally closed
Method of operation
Push button
Number of control elements
1
Connection type
Screwed terminal
Number of poles
1-pole
Type of fastening
Mounting with screw
Hole diameter built-in
0 - 1 mm
Built-in depth
10 mm
Illumination
None
Imprint/indication
None
Nominal voltage
250 v
Nominal current
0,24 A
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Transparent
No
Colour control elements
White
RAL-number (similar) control element
9003
Colour housing
White
RAL-number (similar) housing
9005

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 100 NR

Barcode

Barcode Qty 1 NR
8007352064225
1 NR
2x3x3 [cm]
11,6 [g]
Barcode Qty 10 NR
8007352349049
10 NR
20x4x2,5 [cm]
118,6 [g]
Barcode Qty 100 NR
8007352055629
100 NR
24,4x13,9x8,4 [cm]
1.257,2 [g]
Barcode Qty 1.000 NR
8007352642294
1.000 NR
47,5x27x29 [cm]
13.020 [g]
