Steckdose 2P+E 16A P17/11 rot - 08145.R

Pdf
08145.R

8000 / Geräte / Steckdosen - dedizierte Versorgung

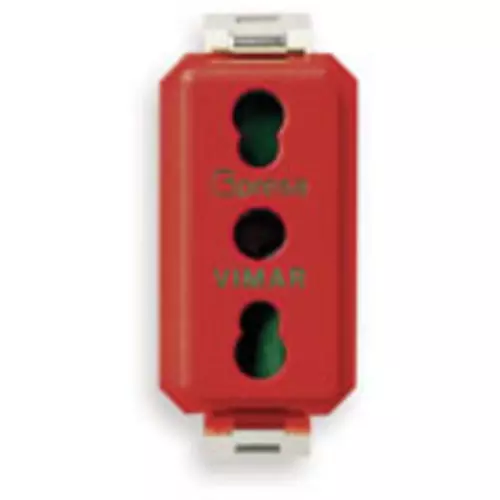

Steckdose 2P+E 16A P17/11 rot
SICURY-Bpresa-Steckdose 2P+E 16 A 250 V~ italienischer Standard Typ P17/11, rot

Produktstatus
3 - Aktif

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Steckdose
Model
Italian type Bipasso
With built-in USB power supply
No
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Red
RAL-number (similar)
3001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Over voltage protection
No
Fault current protection
No
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Width of device
22,00 mm
Height of device
50,10 mm
Depth of device
32,50 mm

00. CE-Kennzeichnung - EU

00. CE-Kennzeichnung - EU

07. INGCER - Chile

10. EAC Eurasian Customs Union

37. Kennzeichnung - Marokko

Mindestbestellmenge: 50 NR

Barcode

Barcode Qty 1 NR
8007352153035
1 NR
4,1x2,8x5,3 [cm]
27,33 [g]
Barcode Qty 50 NR
8007352153042
50 NR
21,4x11,6x14,2 [cm]
1.438,73 [g]
