Ausschalter-Mech.1P 10AX Steckklemmen - 14000.FX.0

Pdf
14000.FX.0

Plana / Geräte / Steuerkontrolle

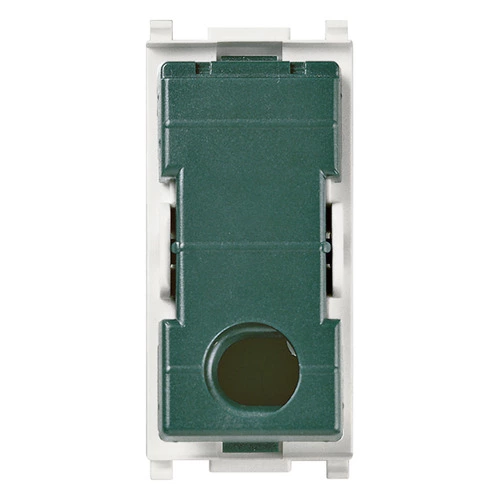

Ausschalter-Mech.1P 10AX Steckklemmen
Ausschalter-Mechanismus 1P 10 AX 250 V~,

Produktstatus
3 - Aktif

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Installationsschalter
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Green
RAL-number (similar)
9003
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
40,50 mm
Built-in depth
26,10 mm

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 50 NR

Barcode

Barcode Qty 1 NR
8007352513679
1 NR
5,1x2,8x5,3 [cm]
22,3 [g]
Barcode Qty 50 NR
8007352513686
50 NR
27x15x12 [cm]
1.201 [g]

Teilen

Codice QR scheda articolo

Legal

Vimar behält sich das Recht vor, jederzeit und ohne Vorankündigung die Merkmale der gemeldeten Produkte zu ändern. Die Installation muss durch Fachpersonal gemäß den im Anwendungsland des Geräts geltenden Vorschriften zur Installation elektrischen Materials erfolgen. Für die Nutzungsbedingungen der im Produktblatt enthaltenen Informationen verweisen wir auf Nutzungsbedingungen.
