Wechselschalter1P10AX2M Steckklem.Silver - 14004.FX.2.SL

Pdf
14004.FX.2.SL

Plana Silver / Geräte / Steuerkontrolle

Wechselschalter1P10AX2M Steckklem.Silver
Wechselschalter 1P 10 AX 250 V~, Steckkl

Produktstatus
3 - Aktif

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Installationsschalter
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Feedback-signal contact
No

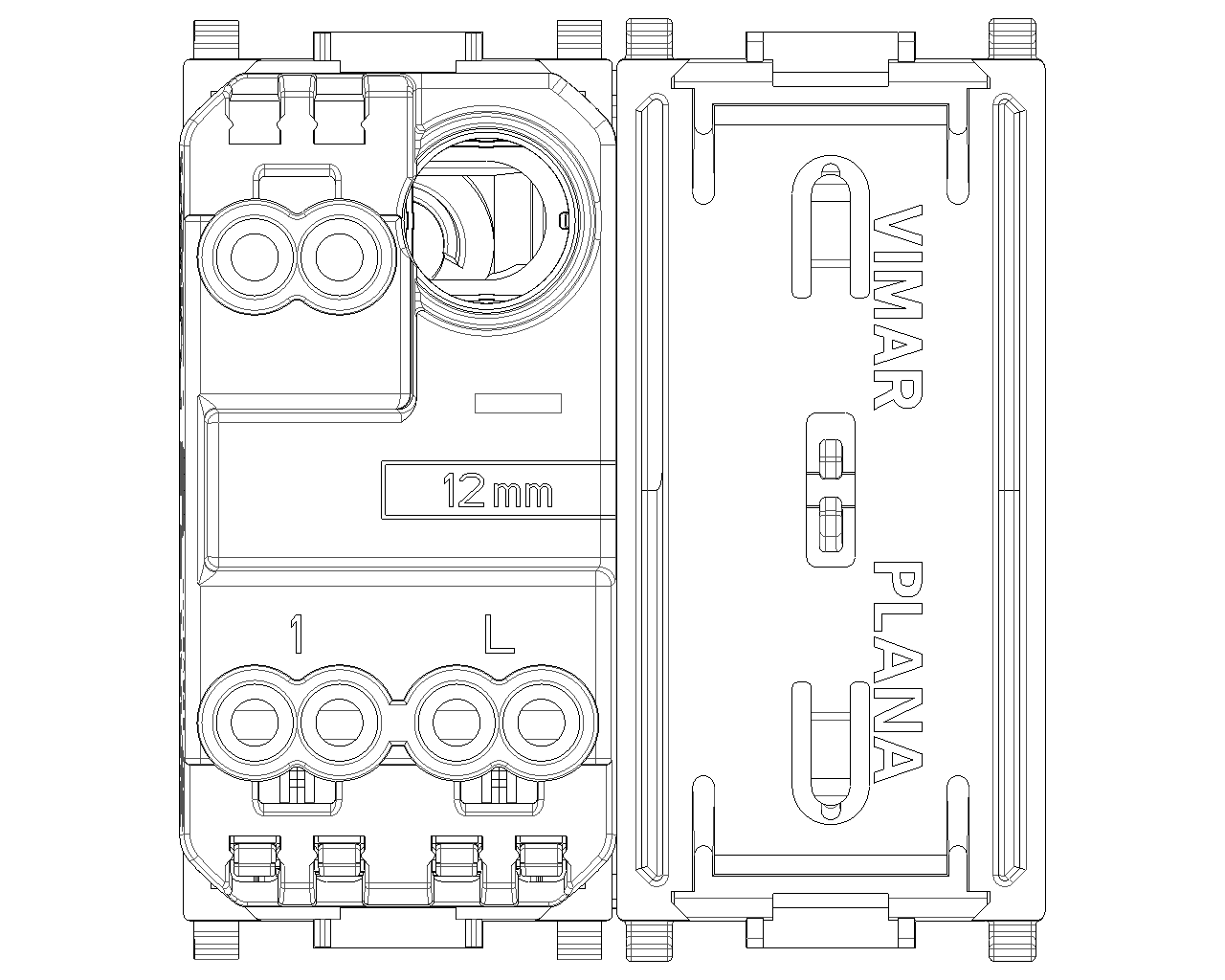

Connection type
Push-in clamp
Washing machine switch
No

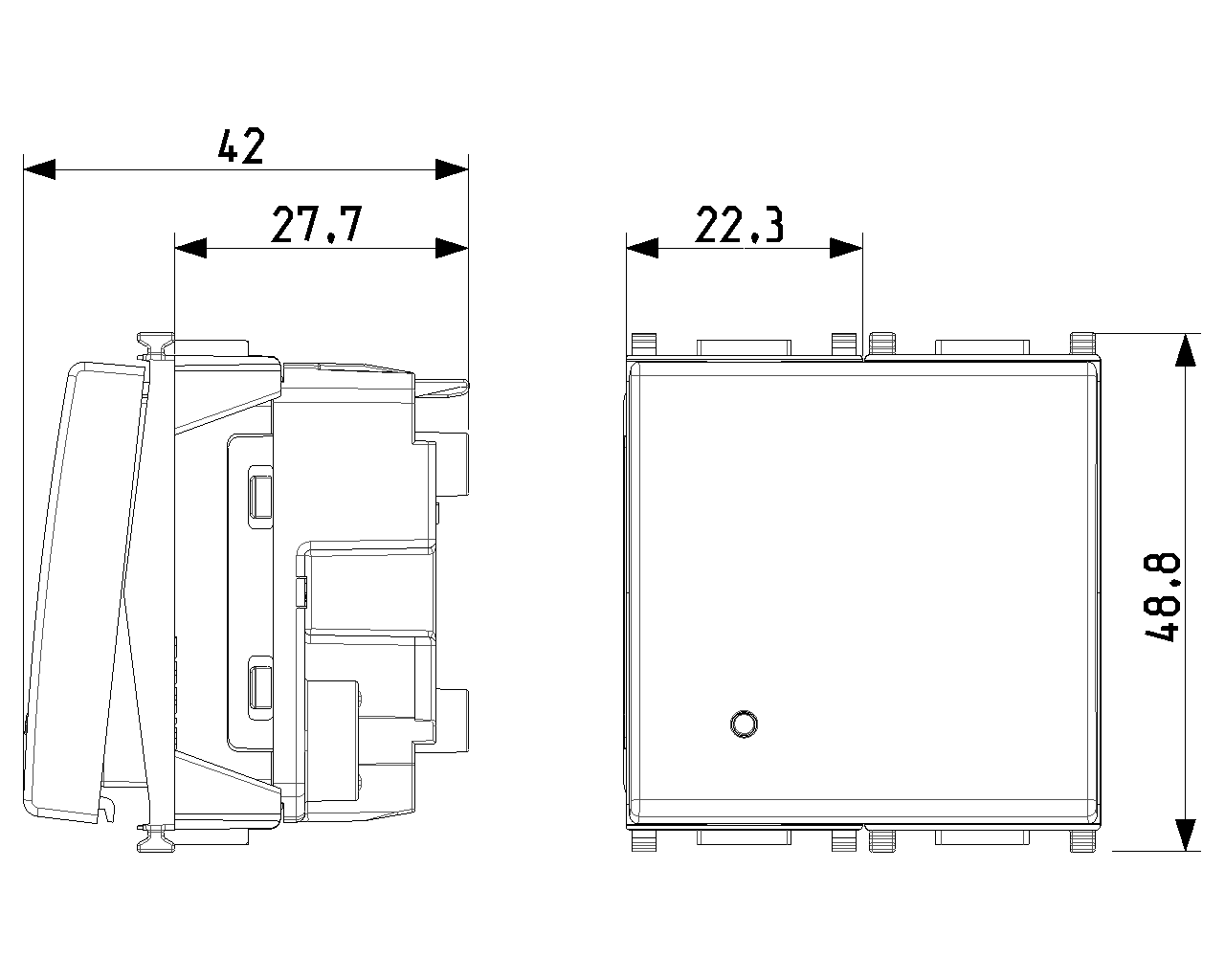

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
42,10 mm
Built-in depth
27,70 mm

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

31. TISI - Thailand

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 20 NR

Barcode

Barcode Qty 1 NR
8007352513938
1 NR
5,1x4,3x5,3 [cm]
36,3 [g]
Barcode Qty 20 NR
8007352513945
20 NR
26,9x11,6x9 [cm]
805,6 [g]
