14009.FX.SL

Plana Silver / Geräte / Steuerkontrolle

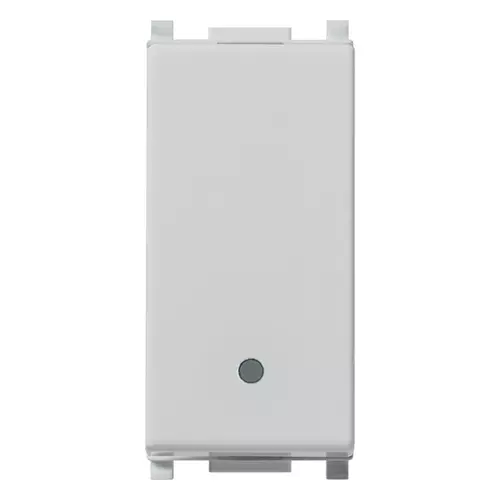

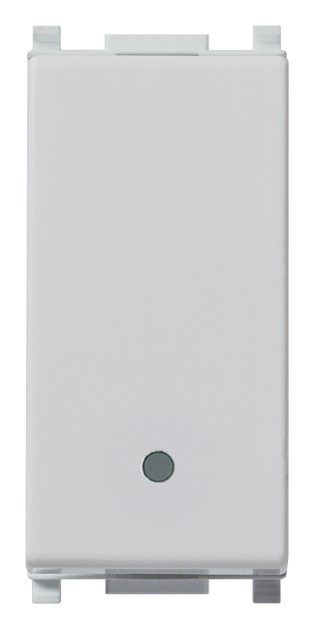

Kreuzschalter 1P 16AX Steckklemmen Silve
Umschalter 1P 10 AX 250 V~, Steckklemmen

Produktstatus
3 - Aktif

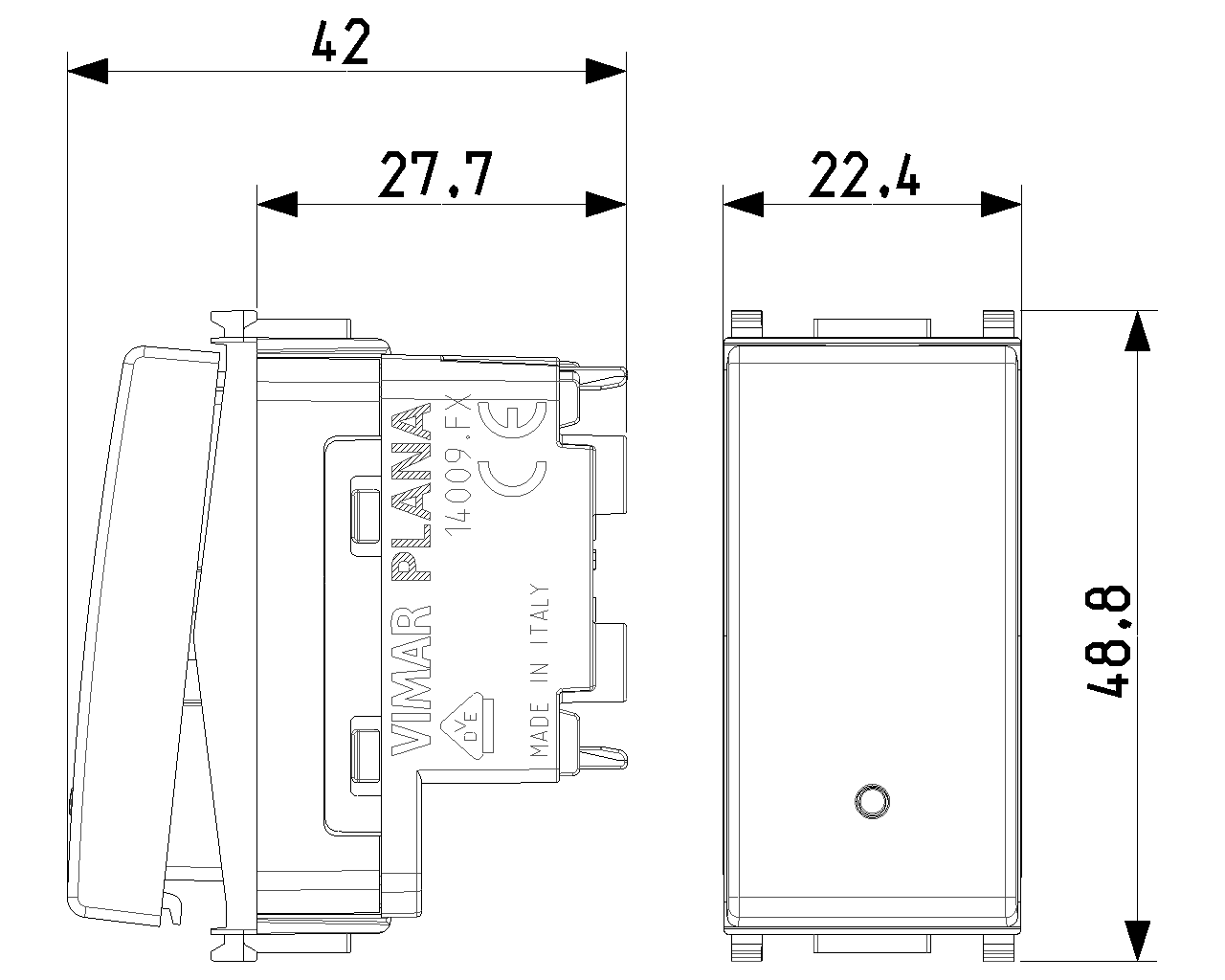

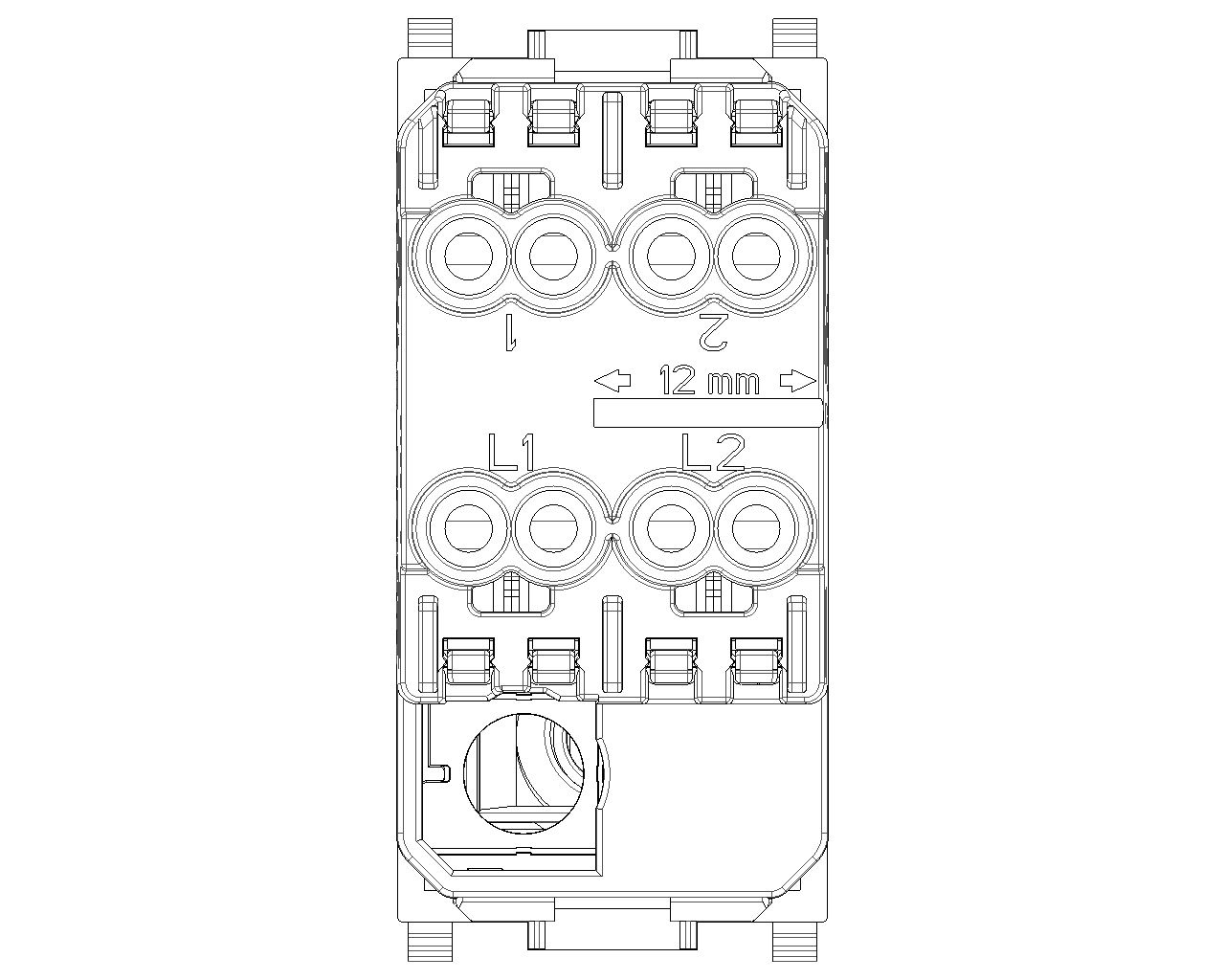

Zeichnungen

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Installationsschalter
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
40,50 mm
Built-in depth
26,10 mm

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 1 NR

Barcode

Barcode Qty 1 NR
8007352629653
1 NR
5,1x2,8x5,3 [cm]
30,5 [g]
Barcode Qty 50 NR
8007352629660
50 NR
27x15x12 [cm]
1.610,5 [g]
