Umschalter 2P 10AX Gebläsekonvektor Meta - 19063.M

Pdf
19063.M

Arké Metal / Geräte / Steuerkontrolle - andere Schalter

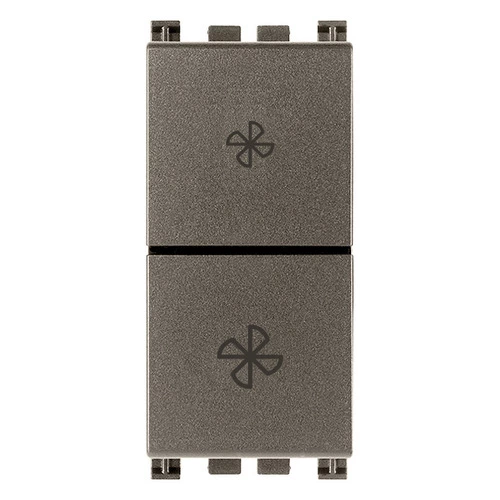

Umschalter 2P 10AX Gebläsekonvektor Meta

Produktstatus
3 - Aktif

Zeichnungen

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Installationsschalter
Wiring system
Other
Method of operation
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
No
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
No
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Impact strength
Other
Nominal voltage
250 v
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
43,60 mm
Built-in depth
33,50 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

29. QCERT - Kolumbien

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 10 NR

Barcode

Barcode Qty 1 NR
8007352720732
1 NR
5,1x2,8x5,3 [cm]
42,8 [g]
Barcode Qty 10 NR
8007352720749
10 NR
14,4x11,6x6 [cm]
471,2 [g]
Barcode Qty 120 NR
8007352720756
120 NR
36,5x33x13,5 [cm]
5.064 [g]
