Wechselschalter 1P 16AX 2M weiß - 20005.2.B

Pdf
20005.2.B

Eikon weiß / Geräte / Steuerkontrolle

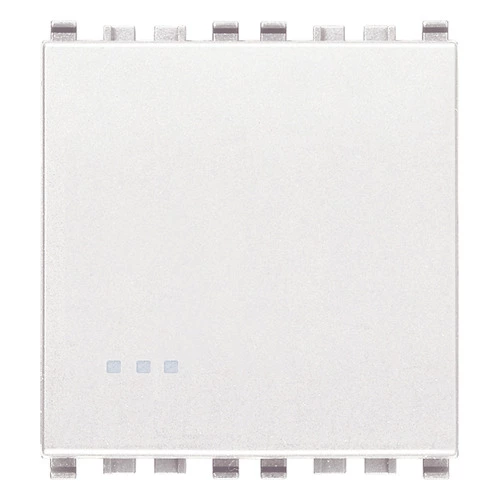

Wechselschalter 1P 16AX 2M weiß
Wechselschalter 1P 16 AX 250 V~, beleuchtbar, auswechselbare Wippe, weiß - 2 Module. Max. 200 W für Lampen mit integriertem Vorschaltgerät

Produktstatus
3 - Aktif

Zeichnungen

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Installationsschalter
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
35,90 mm
Built-in depth
25,00 mm

00. CE-Kennzeichnung - EU

10. EAC Eurasian Customs Union

13. SNI - Indonesien

14. TSE - Turkei

19. NOM - Mexiko

29. QCERT - Kolumbien

31. TISI - Thailand

36. ISI - Indien

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

92. RoHS VAE

Mindestbestellmenge: 20 NR

Barcode

Barcode Qty 1 NR
8007352316324
1 NR
5,1x4,3x5,3 [cm]
36,8 [g]
Barcode Qty 20 NR
8007352316331
20 NR
26,9x11,6x9 [cm]
817,07 [g]
Barcode Qty 240 NR
8007352647244
240 NR
38x28,5x35,5 [cm]
10.332 [g]

Teilen

Codice QR scheda articolo

Legal

Vimar behält sich das Recht vor, jederzeit und ohne Vorankündigung die Merkmale der gemeldeten Produkte zu ändern. Die Installation muss durch Fachpersonal gemäß den im Anwendungsland des Geräts geltenden Vorschriften zur Installation elektrischen Materials erfolgen. Für die Nutzungsbedingungen der im Produktblatt enthaltenen Informationen verweisen wir auf Nutzungsbedingungen.
