Taster-Mechanismus 1P NO 10A - 20008.0

Pdf
20008.0

Eikon / Geräte / Steuerkontrolle

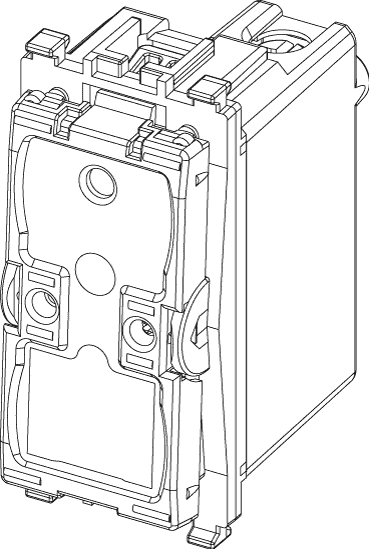

Taster-Mechanismus 1P NO 10A
Taster-Mechanismus 1P NO 250 V~, beleuchtbar, komplettieren mit Wippen 1, 2, 3 Module

Produktstatus
3 - Aktif

Zeichnungen

Gruppe
Installationsschalterprogramme/Steckvorr
Klasse
Taster
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
1
Number of poles
1
Nominal voltage
250 v
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
7024
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

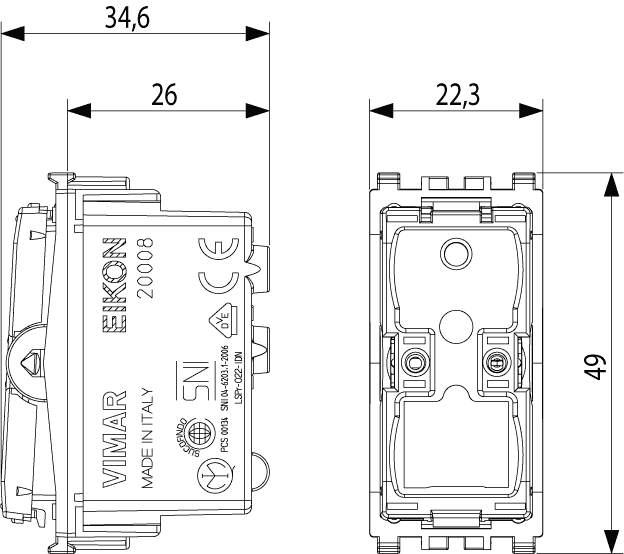

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
34,60 mm

00. CE-Kennzeichnung - EU

01. IMQ - Italien

10. EAC Eurasian Customs Union

19. NOM - Mexiko

29. QCERT - Kolumbien

36. ISI - Indien

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

92. RoHS VAE

Mindestbestellmenge: 20 NR

Barcode

Barcode Qty 1 NR
8007352250581
1 NR
4,1x2,8x5,3 [cm]
23,53 [g]
Barcode Qty 20 NR
8007352250598
20 NR
21,4x11,6x6 [cm]
513 [g]
Barcode Qty 460 NR
8007352636422
460 NR
57,5x22,5x30 [cm]
12.296 [g]
