2 Steuerkontrolle-Schnittstelle 1M grau - 20518

Pdf
20518

Eikon / Systeme / Domotik - Geräte

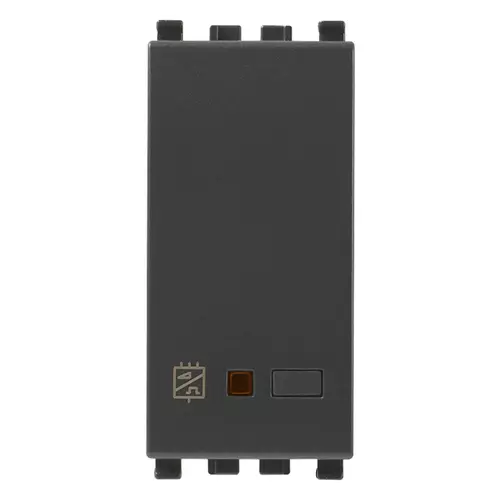

2 Steuerkontrolle-Schnittstelle 1M grau
Schnittstelle für 2 traditionelle Steuerungen, grau

Produktstatus
3 - Aktif

Gruppe
Installationsbussysteme
Klasse
Bussystem-Datenschnittstelle
Bus system KNX
No
Bus system KNX radio
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Model
Other
Mounting method
Flush mounted (plaster)
Width in number of modular spacings
1
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
With bus connection
Yes
With LED indication
Yes
Degree of protection (IP)
IP40

00. CE-Kennzeichnung - EU

37. Kennzeichnung - Marokko

43. UKCA-Marke Großbritannien

Mindestbestellmenge: 1 NR

Barcode

Barcode Qty 1 NR
8007352345065
1 NR
5,1x4,3x5,3 [cm]
41 [g]
Barcode Qty 5 NR
8007352345072
5 NR
14,4x11,6x6 [cm]
251,6 [g]
Barcode Qty 60 NR
8007352648418
60 NR
36,5x33x13,5 [cm]
3.438 [g]

Teilen

Codice QR scheda articolo

Legal

Vimar behält sich das Recht vor, jederzeit und ohne Vorankündigung die Merkmale der gemeldeten Produkte zu ändern. Die Installation muss durch Fachpersonal gemäß den im Anwendungsland des Geräts geltenden Vorschriften zur Installation elektrischen Materials erfolgen. Für die Nutzungsbedingungen der im Produktblatt enthaltenen Informationen verweisen wir auf Nutzungsbedingungen.
