Class group
Appareils / Prises pour interrupteurs
Class
Détecteur de mouvement complet
Model
Movement sensor
Sensor type
High frequency
With DALI interface
No
Constant light control
No
HVAC-control
No
Forced switch on
Yes
Forced switch off
No
Animal zone
Yes
Creep-under protection
No
Networkable
Yes
Scan angle
90
Staircase monitoring
No
Bridging switch
No
Max. presence range
28 m2
Max. transmission range frontally
4 m
Diameter detection range on floor
6 m
Suitable for wireless transmission
Yes
Remote operation
Yes
With remote control
No
Response value sensitivity adjustable
Yes
With signal unit
Yes
Teach-function for response value luminosity
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
Yes
Dim function with dimmer basic element
No
Mounting method
Other
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Anti-bacterial treatment
No
Colour
Other
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP40
Voltage type
AC
Frequency
50 - 60 HZ
Nominal voltage
240 v
Min. switch-on time
70 s
Switch-off delay
1.080 s
Max. switching power
960 W
Temperature
-10 - 40 °C
Number of switching zones
1
Min. starting current
0 A
Substation input
No
With alarm function
Yes

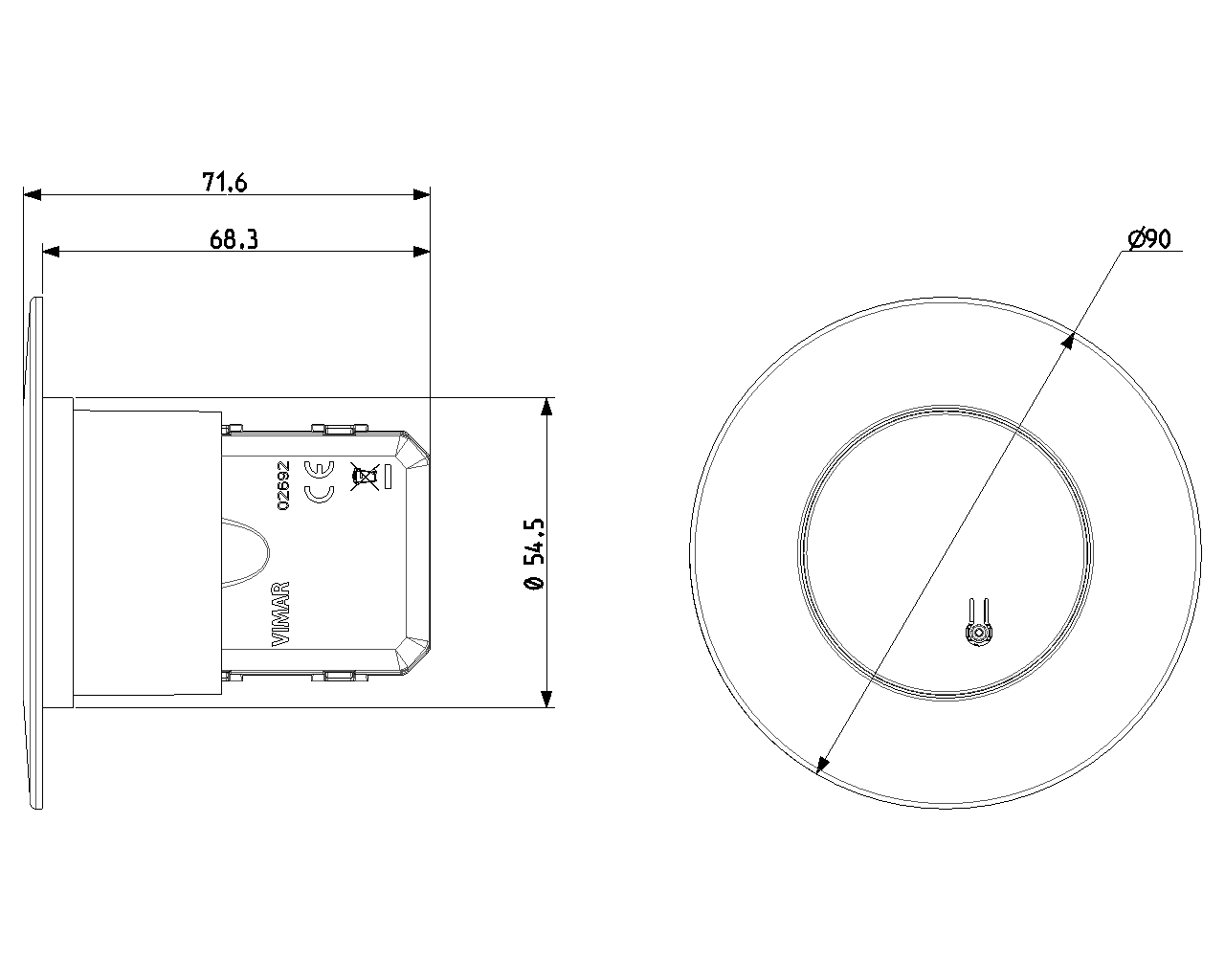

Width
9.000 mm
Height
90,00 mm
Depth
7.160 mm
Diameter
9.000 mm
Built-in depth
6.830 mm
Built-in diameter
5.450 mm
Compatible with Apple HomeKit
Yes
Compatible with Google Assistant
Yes
Compatible with Amazon Alexa
Yes
