Prise 2P+T 10A P11 - 08140

Pdf
08140

8000 / Appareils / Prises de courant standard italien

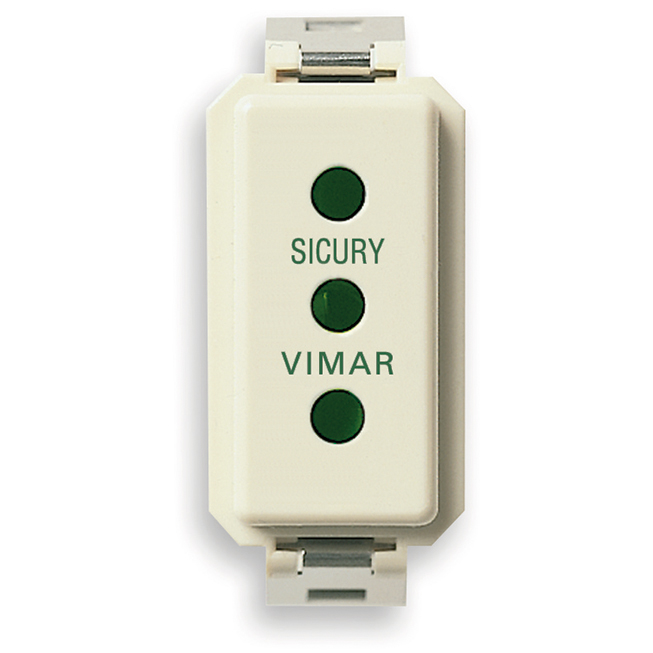

Prise 2P+T 10A P11
Prise SICURY 2P+T 10 A 250 V~ standard italien P11

État Produit
3 - Actif

Class group
Appareils / Prises pour interrupteurs
Class
Prise de courant
Model
Italian type P11
With built-in USB power supply
No
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush mounted (plaster)
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 v
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Width of device
22,00 mm
Height of device
50,10 mm
Depth of device
32,50 mm

00. Marquage CE - UE

00. Marquage CE - UE

07. INGCER - Chili

10. EAC Eurasian Customs Union

37. Marquage - Maroc

Q.té minimum commande: 50 NR

Code barre

Barcode Qty 1 NR
8007352014084
1 NR
4,1x2,8x5,3 [cm]
25,5 [g]
Barcode Qty 50 NR
8007352005112
50 NR
21,4x11,6x14,2 [cm]
1.356,47 [g]
Barcode Qty 200 NR
8007352361171
200 NR
30,5x26x22 [cm]
5.765,88 [g]
Barcode Qty 500 NR
8007352710405
500 NR
57,5x22,5x30 [cm]
14.414,5 [g]

Partagez

Codice QR scheda articolo

Legal

Vimar se réserve le droit de modifier les caractéristiques des produits à tout moment et sans préavis. L'installation doit être confiée à des techniciens qualifiés et exécutée conformément aux dispositions qui régissent l'installation du matériel électrique en vigueur dans le pays concerné. Pour les conditions d'utilisation des informations données sur la fiche produit, consulter Conditions d'utilisation.
