Interrupteur 1P 10AX 2M Silver - 14000.2.SL

Pdf
14000.2.SL

Plana Silver / Appareils / Appareils de base

Interrupteur 1P 10AX 2M Silver
Interrupteur 1P 10 AX 250 V~, éclairable, touche remplaçable, Silver - 2 modules. Maxi 100 W pour lampes autoballastées (CEI 60669-1:2017)

État Produit
3 - Actif

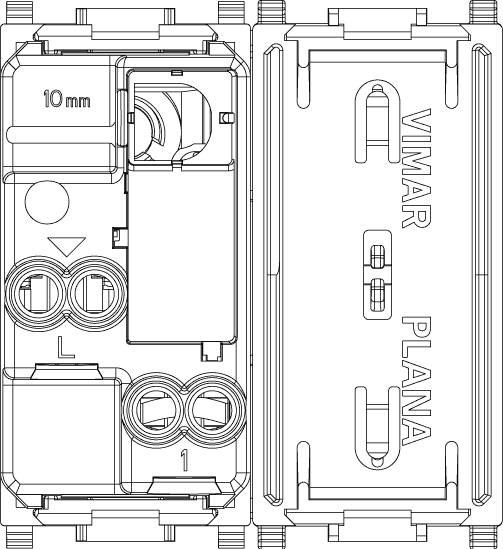

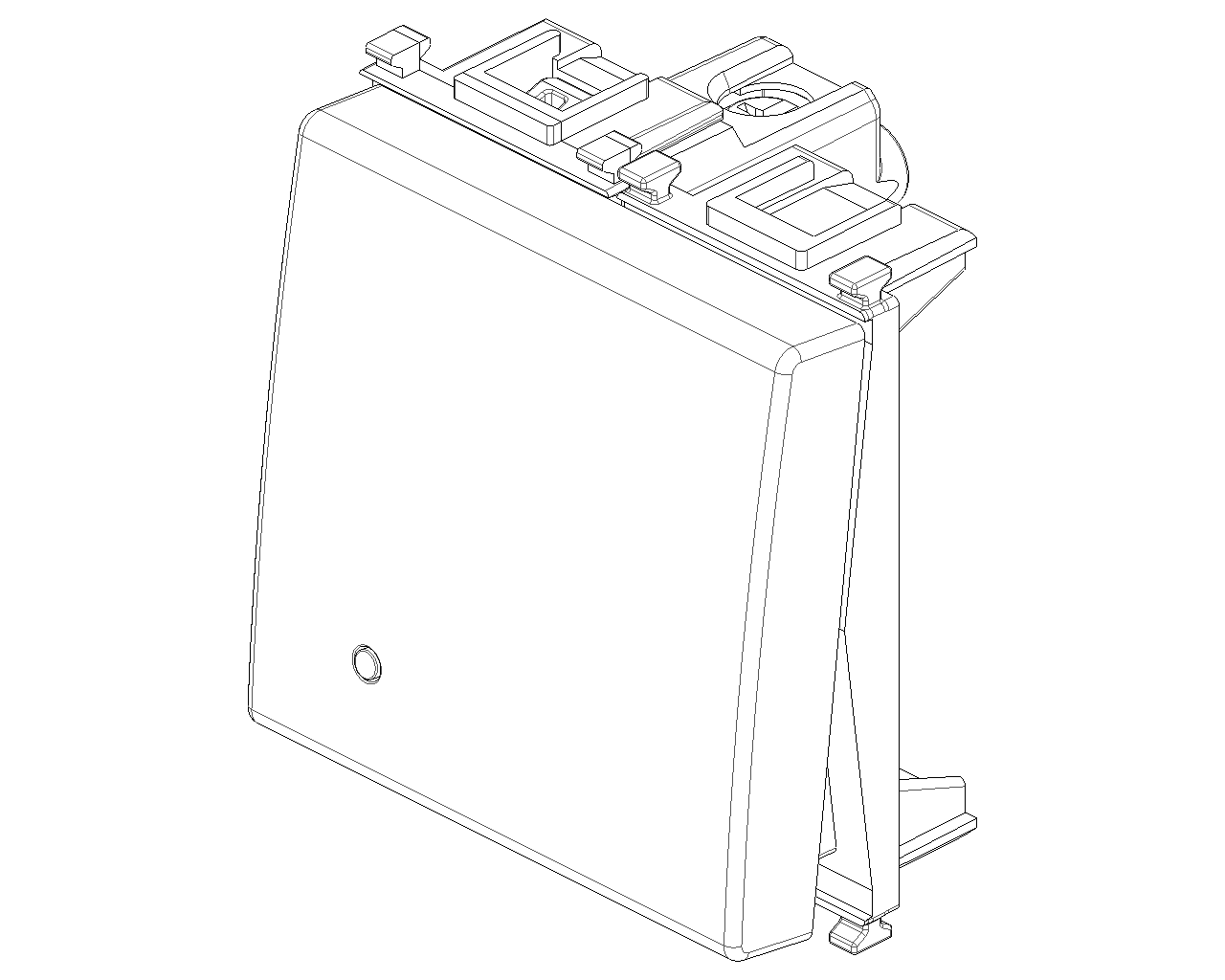

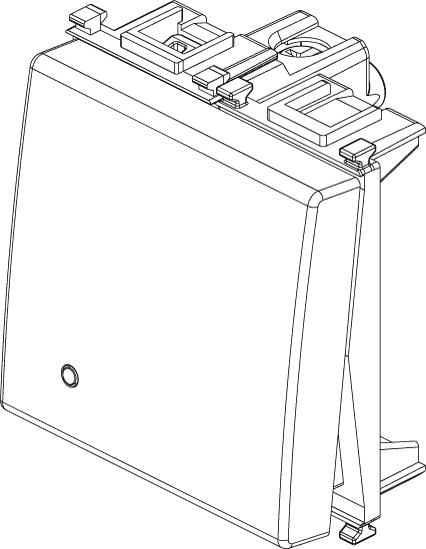

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Silver
RAL-number (similar)
9006
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No

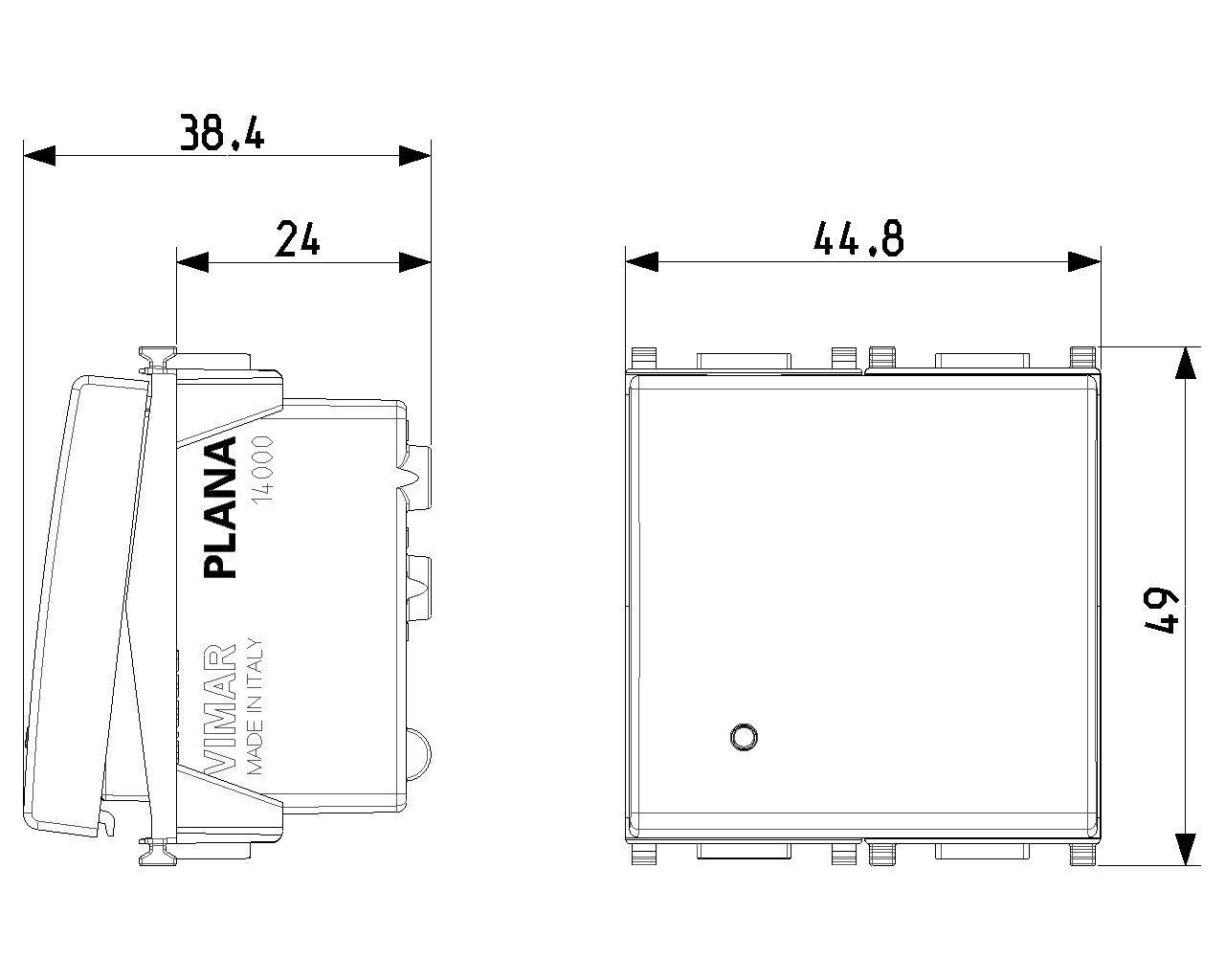

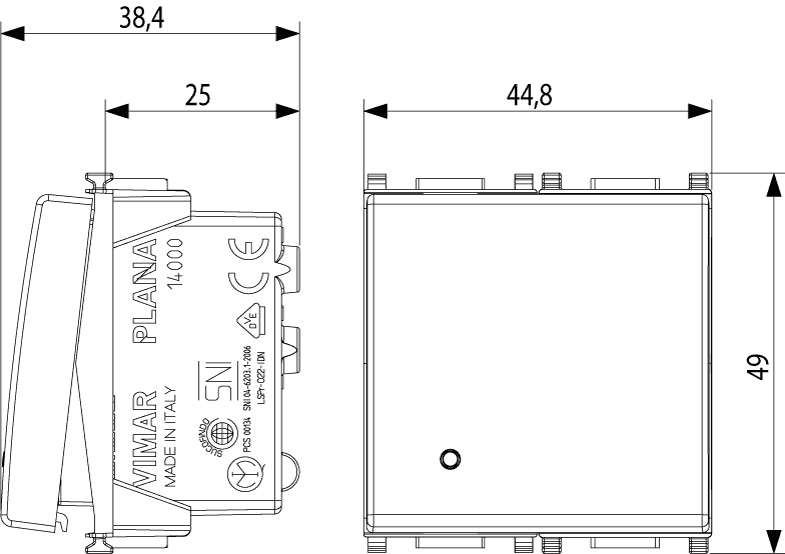

Width of device
44,80 mm
Height of device
49,00 mm
Depth of device
38,40 mm
Built-in depth
24,00 mm

00. Marquage CE - UE

01. IMQ - Italie

10. EAC Eurasian Customs Union

29. QCERT - Colombie

31. TISI - Thailande

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 20 NR

Code barre

Barcode Qty 1 NR
8007352319851
1 NR
5,1x4,3x5,3 [cm]
36,6 [g]
Barcode Qty 20 NR
8007352319868
20 NR
26,9x11,6x9 [cm]
810,07 [g]
