Va-et-vient 1P 10AX 2M gris - 19004.2

Pdf
19004.2

Arké / Appareils / Appareils de base

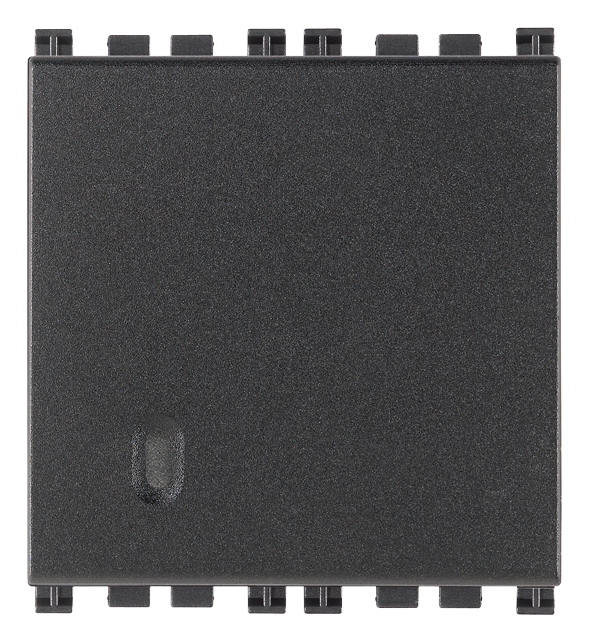

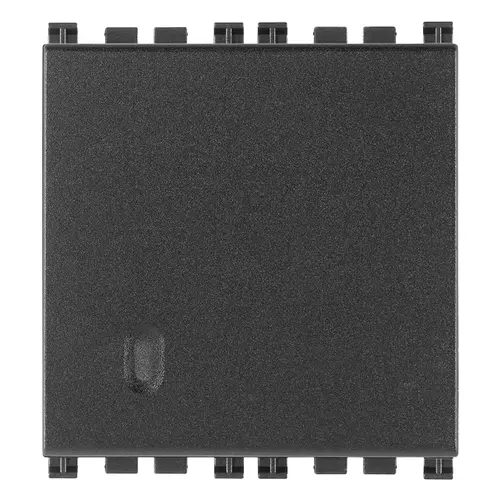

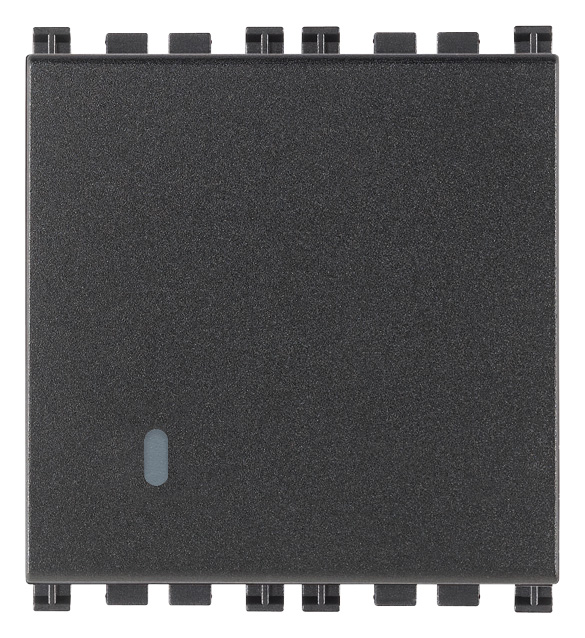

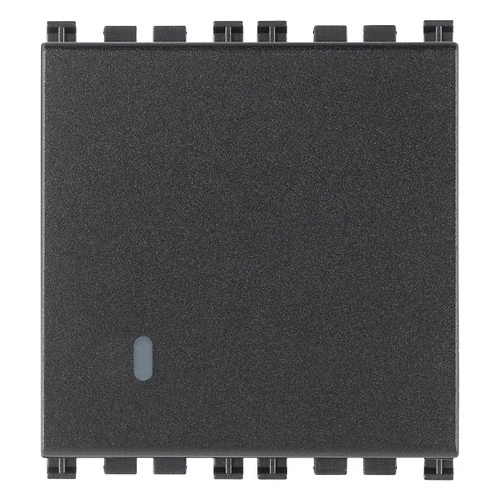

Va-et-vient 1P 10AX 2M gris
Va-et-vient 1P 10 AX 250 V~, éclairable, touche interchangeable, gris - 2 modules. Maxi 100 W pour lampes avec alimentation intégrée (CEI 60669-1:2017)

État Produit
3 - Actif

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
10,00 A
Switching current for fluorescent lamps
10
Feedback-signal contact
No
Connection type
Push-in clamp
Washing machine switch
No

00. Marquage CE - UE

10. EAC Eurasian Customs Union

29. QCERT - Colombie

36. ISI - Inde

37. Marquage - Maroc

43. Marque UKCA - GB

92. RoHS EAU

Q.té minimum commande: 20 NR

Code barre

Barcode Qty 1 NR
8007352685222
1 NR
5,1x4,3x5,3 [cm]
36,9 [g]
Barcode Qty 20 NR
8007352685239
20 NR
26,9x11,6x9 [cm]
817 [g]
Barcode Qty 240 NR
8007352685246
240 NR
38x28x35,5 [cm]
10.332 [g]
