Interrupteur 2P 20AX gris - 19016

Pdf
19016

Arké / Appareils / Appareils de base

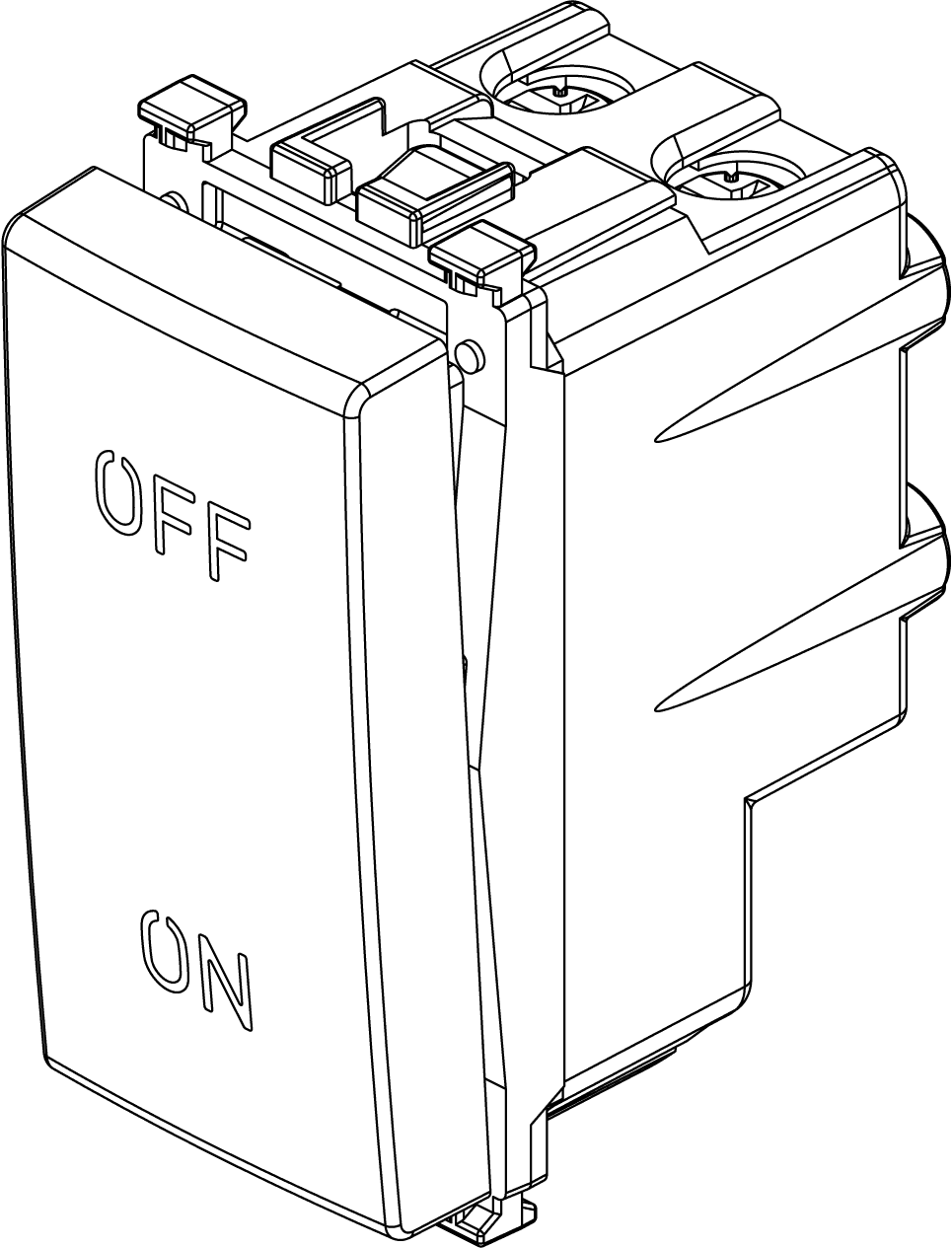

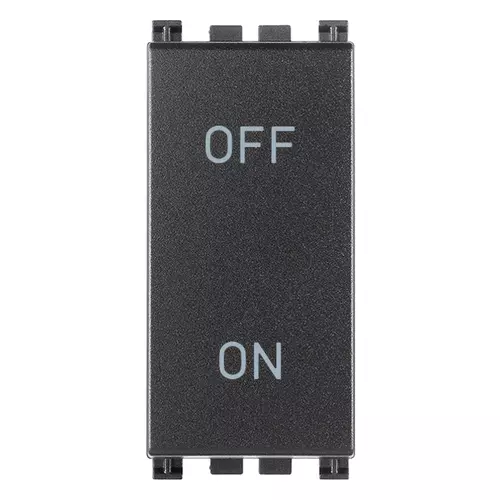

Interrupteur 2P 20AX gris
Interrupteur 2P 20 AX 250 V~, éclairable, touche remplaçable, gris. Maxi 250 W pour lampes autoballastées (CEI 60669-1:2017)

État Produit
3 - Actif

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes

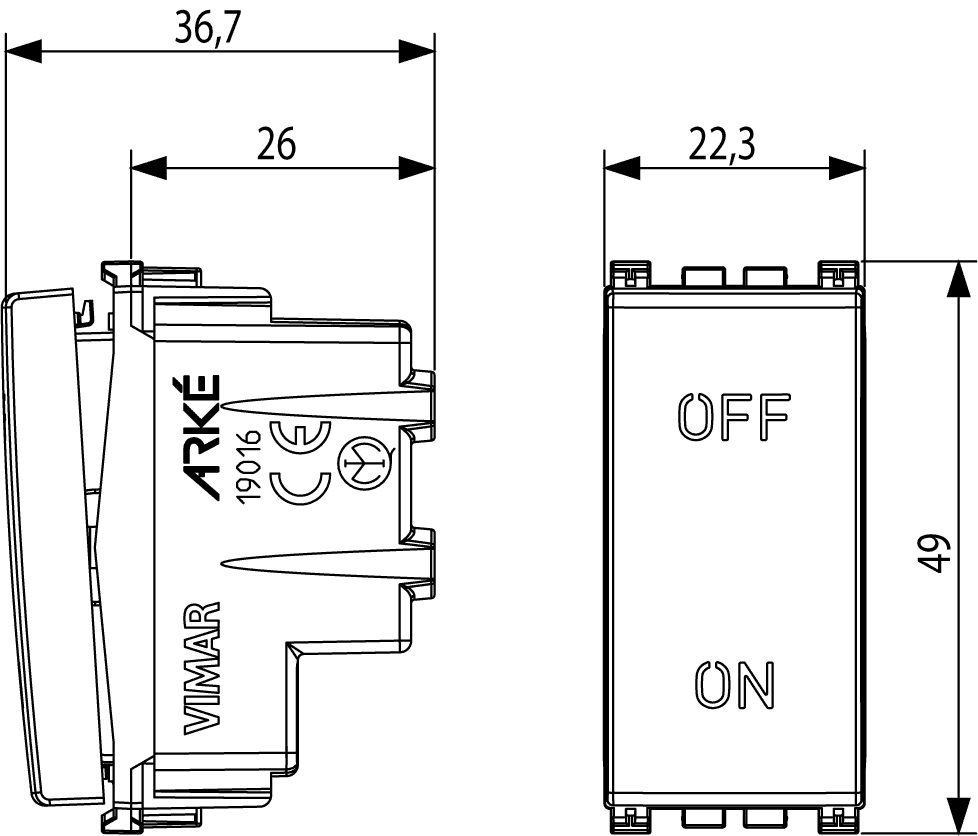

Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
36,70 mm
Built-in depth
26,00 mm

00. Marquage CE - UE

36. ISI - Inde

37. Marquage - Maroc

43. Marque UKCA - GB

92. RoHS EAU

Q.té minimum commande: 50 NR

Code barre

Barcode Qty 1 NR
8007352599048
1 NR
4,1x2,8x5,3 [cm]
35 [g]
Barcode Qty 50 NR
8007352599055
50 NR
21,4x11,6x14,2 [cm]
1.832 [g]
