Inverseur 1P 16AX Next - 20013.N

Pdf
20013.N

Eikon Next / Appareils / Appareils de base

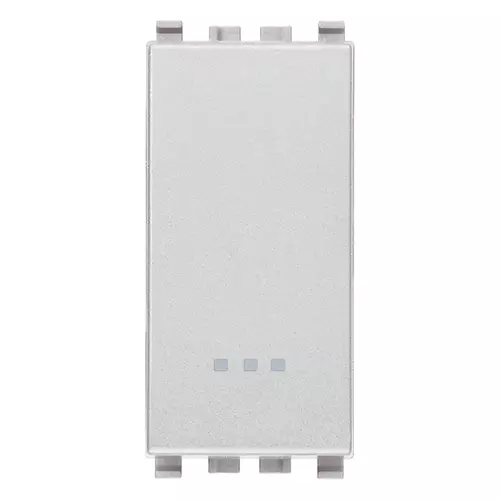

Inverseur 1P 16AX Next
Inverseur 1P 16 AX 250 V~, éclairable, touche interchangeable, Next. Maxi 200 W pour lampes autoballastées (CEI 60669-1:2017)

État Produit
3 - Actif

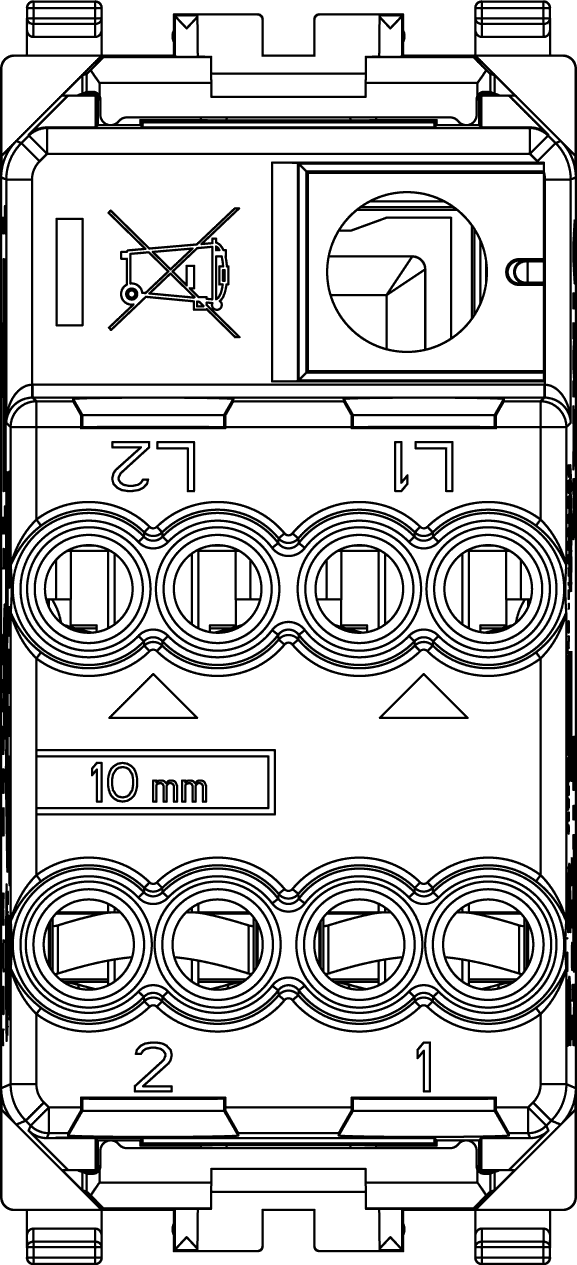

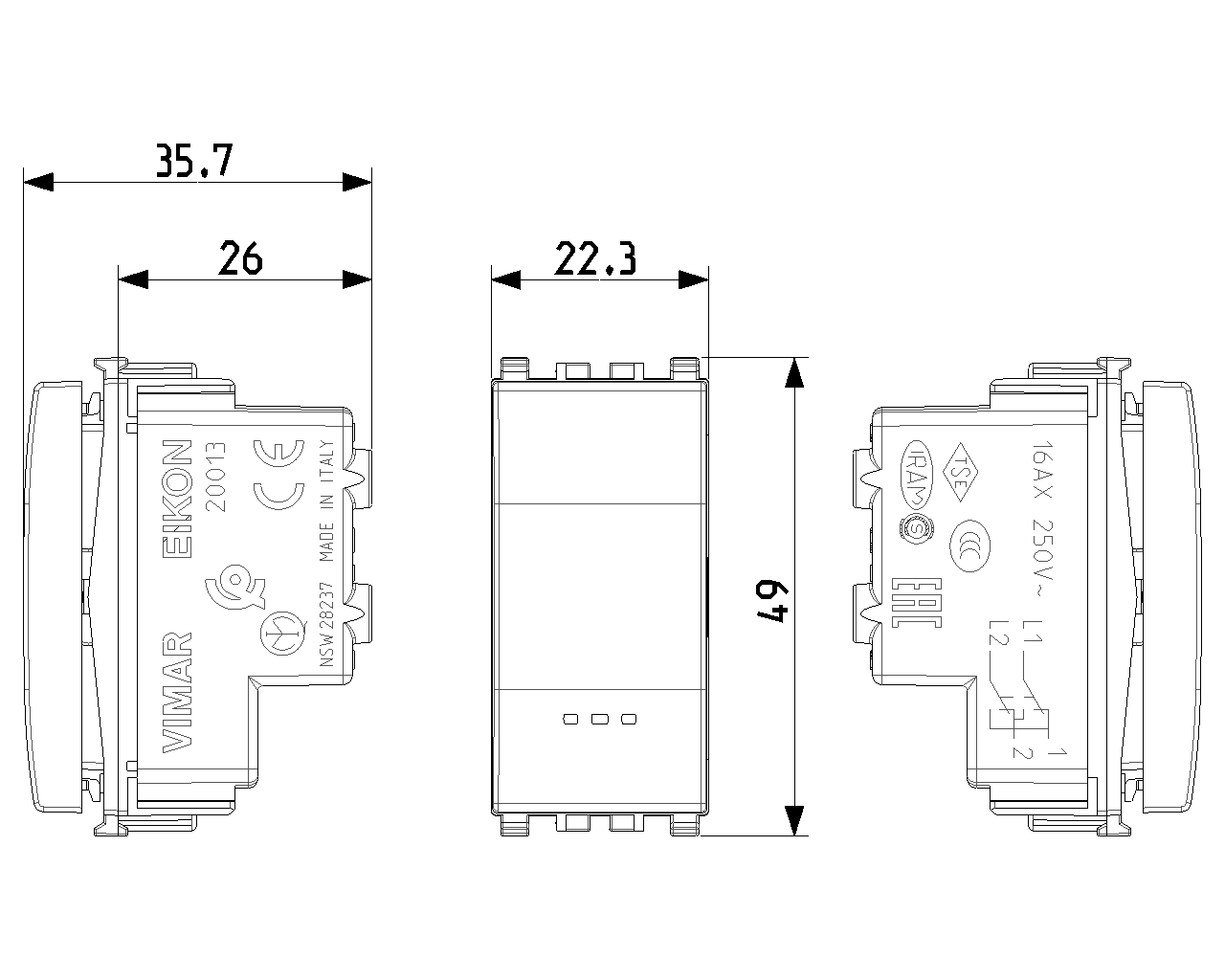

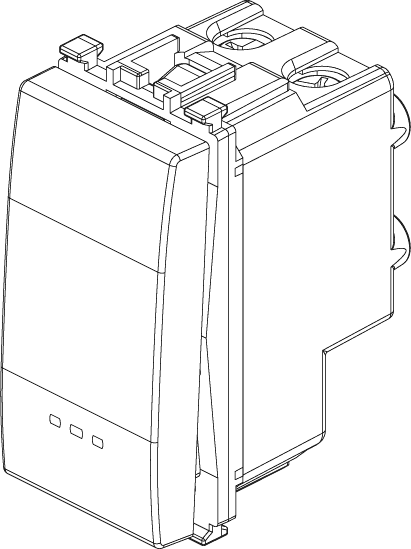

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
Intermediate switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
36,15 mm
Built-in depth
25,00 mm

00. Marquage CE - UE

10. EAC Eurasian Customs Union

19. NOM - Mexique

29. QCERT - Colombie

31. TISI - Thailande

36. ISI - Inde

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 50 NR

Code barre

Barcode Qty 1 NR
8007352285712
1 NR
4,1x2,8x5,3 [cm]
33,87 [g]
Barcode Qty 50 NR
8007352285729
50 NR
21,4x11,6x14,2 [cm]
1.787,8 [g]
Barcode Qty 500 NR
8007352640719
500 NR
57,5x22,5x30 [cm]
18.370 [g]
