Interrupteur axial 1P 16AX Next - 20101.N

Pdf
20101.N

Eikon Next / Appareils / Appareils de base

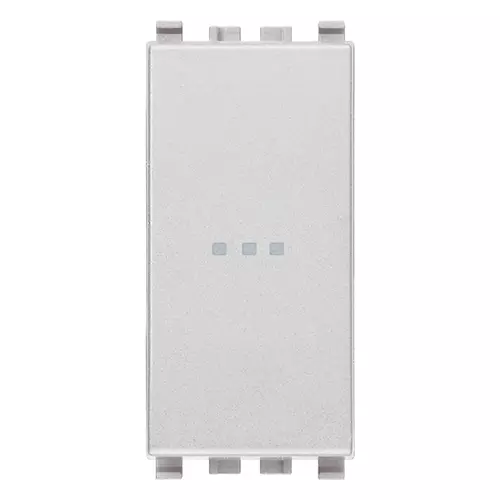

Interrupteur axial 1P 16AX Next
Interrupteur axial 1P 16 AX 250 V~, éclairable, touche interchangeable, Next. Maxi 200 W pour lampes autoballastées (CEI 60669-1:2017)

État Produit
3 - Actif

Ceci pourrait également vous intéresser

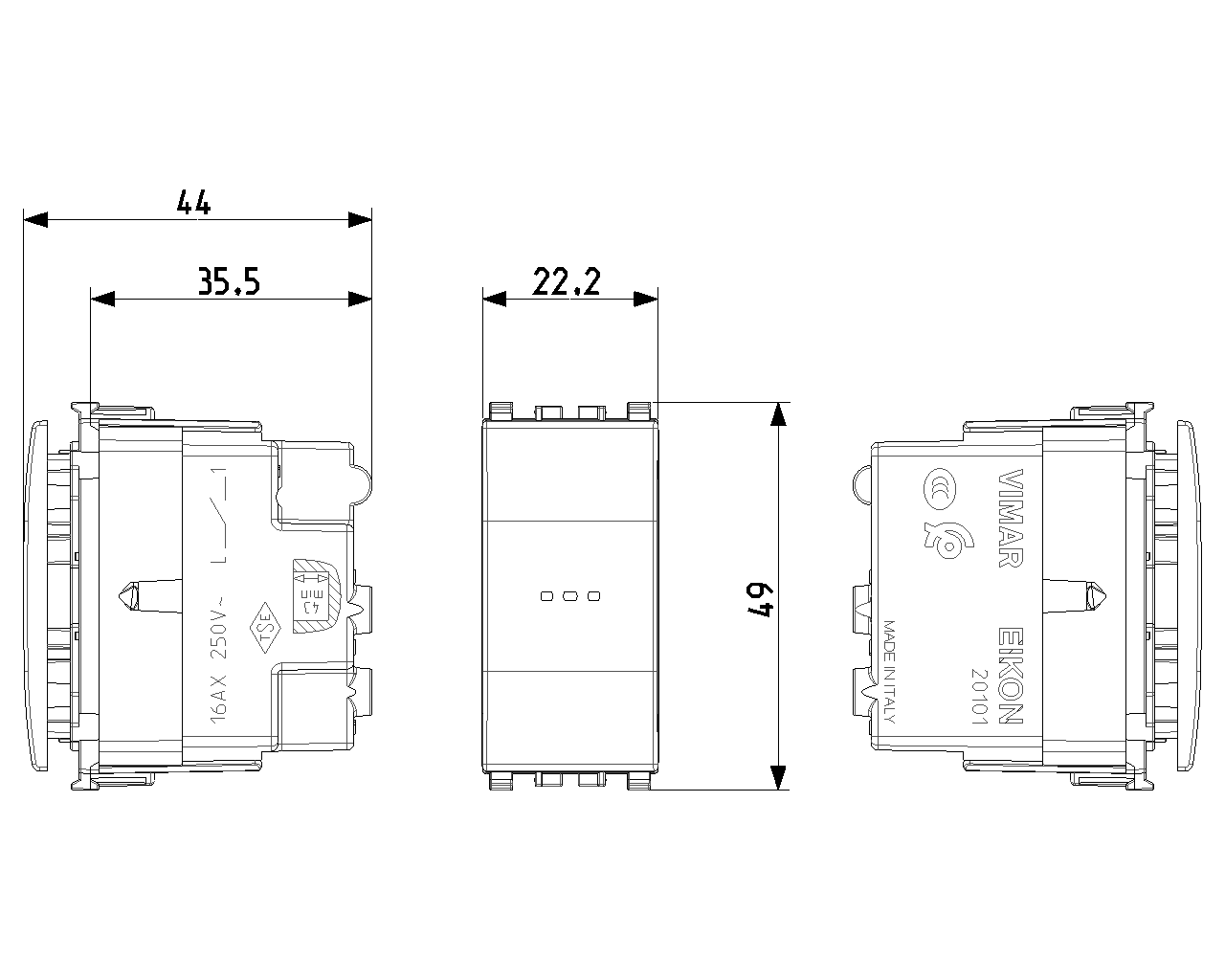

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Appareillage domestique
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
22,30 mm
Height of device
49,00 mm
Depth of device
44,00 mm
Built-in depth
34,50 mm

00. Marquage CE - UE

10. EAC Eurasian Customs Union

14. TSE - Turquie

29. QCERT - Colombie

31. TISI - Thailande

34. PSE - Japon

36. ISI - Inde

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 20 NR

Code barre

Barcode Qty 1 NR
8007352459861
1 NR
5,1x2,8x5,3 [cm]
28,4 [g]
Barcode Qty 20 NR
8007352459878
20 NR
27x11,6x6 [cm]
637 [g]
Barcode Qty 120 NR
8007352651319
120 NR
37,5x30x13,5 [cm]
4.176 [g]
