Deux prises 2P+T 15A USA avec GFCI blanc - 21296.B

Pdf
21296.B

Eikon EVO / Appareils / Prises de courant protégées

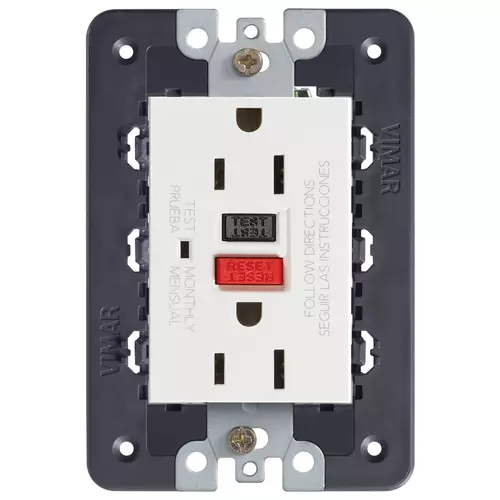

Deux prises 2P+T 15A USA avec GFCI blanc
Deux prises 2P+T 15 A 125 V~ 60 Hz standard américain avec protection différentielle (GFCI), appareil équipé d’un support à compléter d’une plaque 3 modules Eikon EVO ou Eikon, blanc

État Produit
3 - Actif

Dessins

Class group
Appareils / Prises pour interrupteurs
Class
Prise de courant
Model
American National Standard
With built-in USB power supply
No
Number of units
3
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
No
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
Yes
With orientation lighting
No
Over voltage protection
No
Fault current protection
Yes
With miniature fuse
No
Mounting method
Flush mounted (plaster)
Type of fastening
Mounting with screw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With on/off switch
No
With loop through function
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
125 v
Frequency
60,00 - 60,01 HZ
Rated fault current
6 mA
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Width of device
73,00 mm
Height of device
107,00 mm
Depth of device
41,10 mm

00. Marquage CE - UE

19. NOM - Mexique

37. Marquage - Maroc

Q.té minimum commande: 5 NR

Code barre

Barcode Qty 1 NR
8007352503342
1 NR
7,3x10,7x4,1 [cm]
148,2 [g]
Barcode Qty 5 NR
8007352503359
5 NR
29,5x13,5x7,7 [cm]
846,7 [g]
Barcode Qty 95 NR
8007352503366
95 NR
54,5x37x28,5 [cm]
16.966 [g]
