Boîte de dérivation IP55 150x110x70 mm - V55106

Pdf
V55106

Enveloppes et boîtes / Boîtes de dérivation en saillie / Avec embout passe-câbles

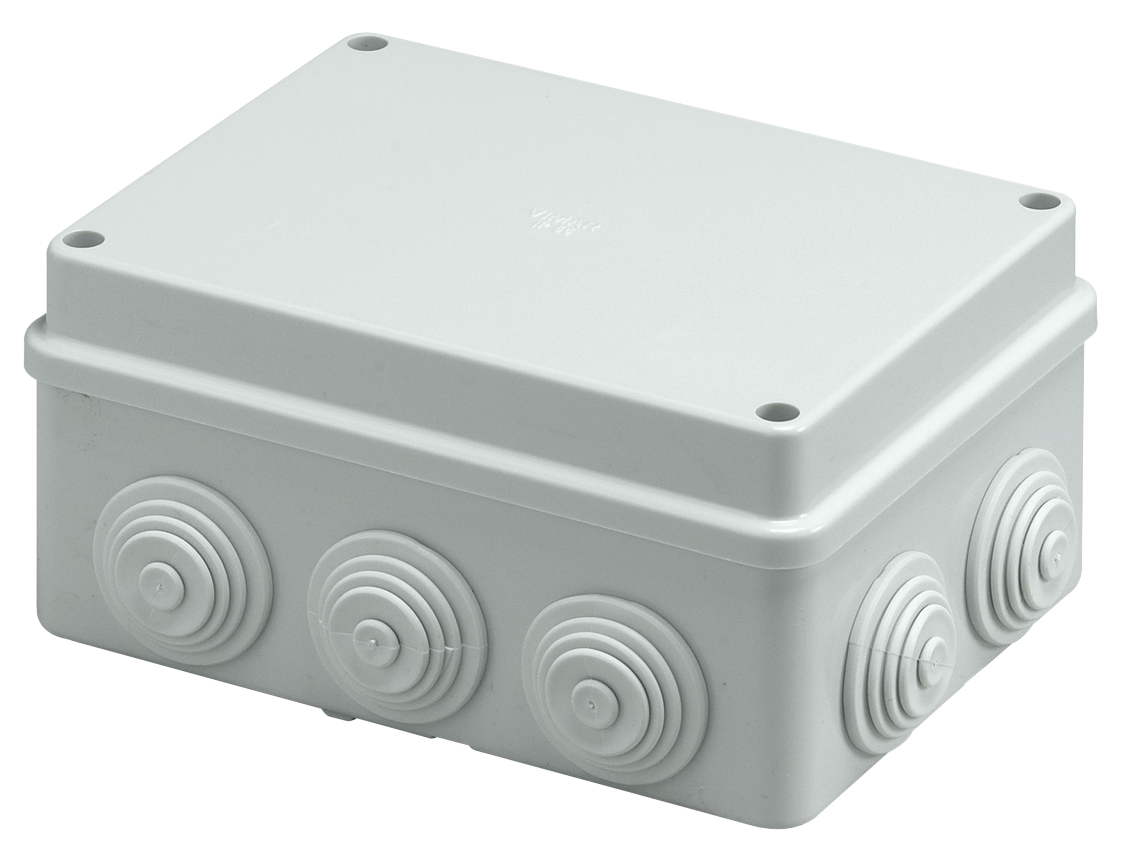

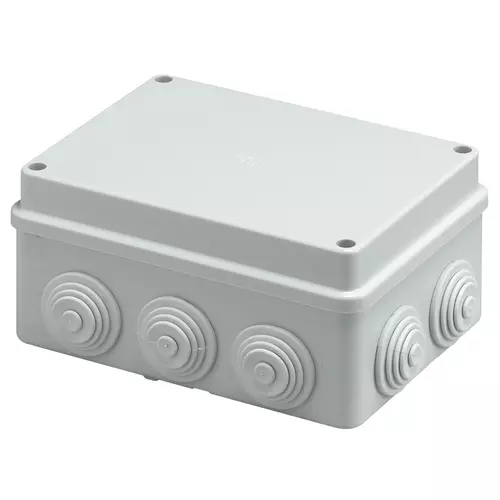

Boîte de dérivation IP55 150x110x70 mm
Boîte de dérivation en saillie IP55, avec sorties de câbles, couvercle fixé avec vis en acier inoxydable, gris RAL 7035. Dimensions 150x110x70 mm

État Produit
3 - Actif

Class group
Raccordement
Class
Boîte / boîtier sailli
Max. conductor cross section
0
Equipped with
None
Shape
Rectangular
Mounting method
Wall-/ceiling mounting
Mounting in the soil
No
Mounting under water
No
For tube diameter
20/25 mm
Inlet from the rear
No
Length
150,00 mm
Width
173,00 mm
Depth
76,00 mm
Diameter
0 mm
Tackable
No
Number of inlets
10
Type of housing feed-through
Trimmable step membrane
Material
Plastic
Halogen free
No
Surface protection
Untreated
Colour
Grey
Degree of protection (IP)
IP55
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Castable
No
With casting compound
No
Sealable
No
Rated insulation voltage Ui
450 v
Circuit integrity
None
With screening
No
Weatherproof
Yes
Operating temperature
0 - 60 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-Zone dust
None

00. Marquage CE - UE

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 45 NR

Code barre

Barcode Qty 1 NR
8007352079588
1 NR
17x13x7,6 [cm]
227,87 [g]
Barcode Qty 45 NR
8007352079595
45 NR
41,5x61x36 [cm]
11.251,33 [g]
