Boîte dérivation clois.sèch490x164x73,5m - V72009

Pdf
V72009

Enveloppes et boîtes / Boîtes de dérivation d'encastrement / Pour cloisons sèches

Boîte dérivation clois.sèch490x164x73,5m

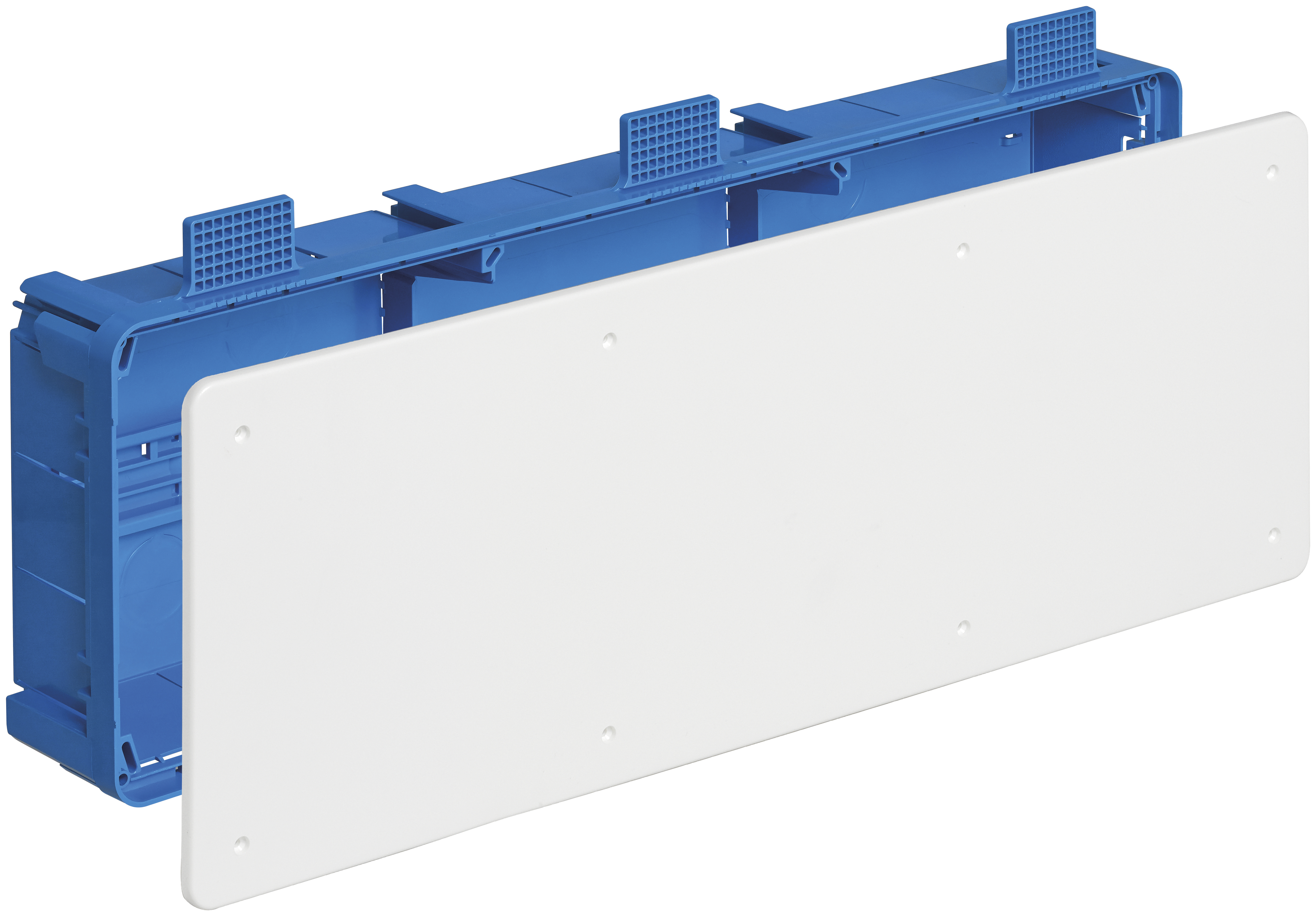

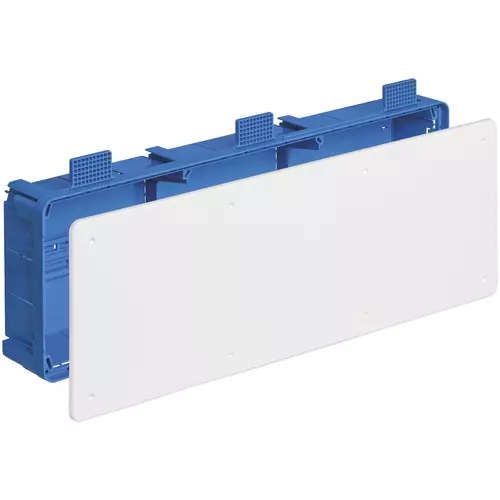

Boîte de dérivation d'encastrement pour cloisons sèches avec couvercle blanc et vis defixation. Dimensions 490x164x73,5 mm

État Produit
3 - Actif

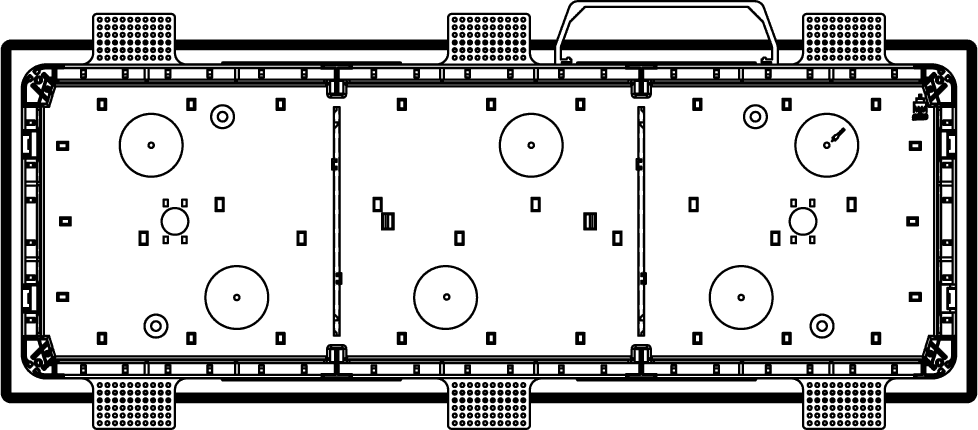

Dessins

Class group
Raccordement
Class
Boîte d'appareillage encastré
Mounting method
Flush mounted (plaster)
Shape
Rectangular
Construction type
Cable junction box
Model
Other
Provided with revolving ring
No
Connectable
Yes
Equipped with
None
Diameter
0 mm
Length
490,00 mm
Width
490,00 mm
Depth
0,00 - 73,50 mm
Internal depth
73,50 mm
For number of electric fittings
0
Mounting switching equipment
Spread
With screws
Yes
Housing feed-through by break-out opening
Yes
Housing feed-through by seal membrane
No
Housing feed-through by nozzle
No
Housing feed-through by step membrane
No
For tube diameter
Other
Pipe locking
Yes
Pipe locking optional
Yes
Inlet from the rear
Yes
Number of inlets
24
Number of included spouts
0
Material
Plastic
Halogen free
Yes
Surface protection
Untreated
Colour
Blue
Degree of protection (IP)
IP20
Cover model
Blind cover
Transparent cover
No
Cover attachment
Screwed
Sealable
No
With screening
No
Air tight
No
Max. conductor cross section
0
Number of poles of the clamp
0
Clamp position fixed
No
Luminaire hook mounting
No
Nozzle
None
With nail lugs
Yes
Special application
None

00. Marquage CE - UE

37. Marquage - Maroc

43. Marque UKCA - GB

Q.té minimum commande: 4 NR

Code barre

Barcode Qty 1 NR
8007352589995
1 NR
51,2x22,6x7,6 [cm]
738 [g]
Barcode Qty 4 NR
8007352590007
4 NR
60x33x27,5 [cm]
3.600 [g]
