01825
Safety / By-alarm Plus / Surface mounting components / Non-modular components

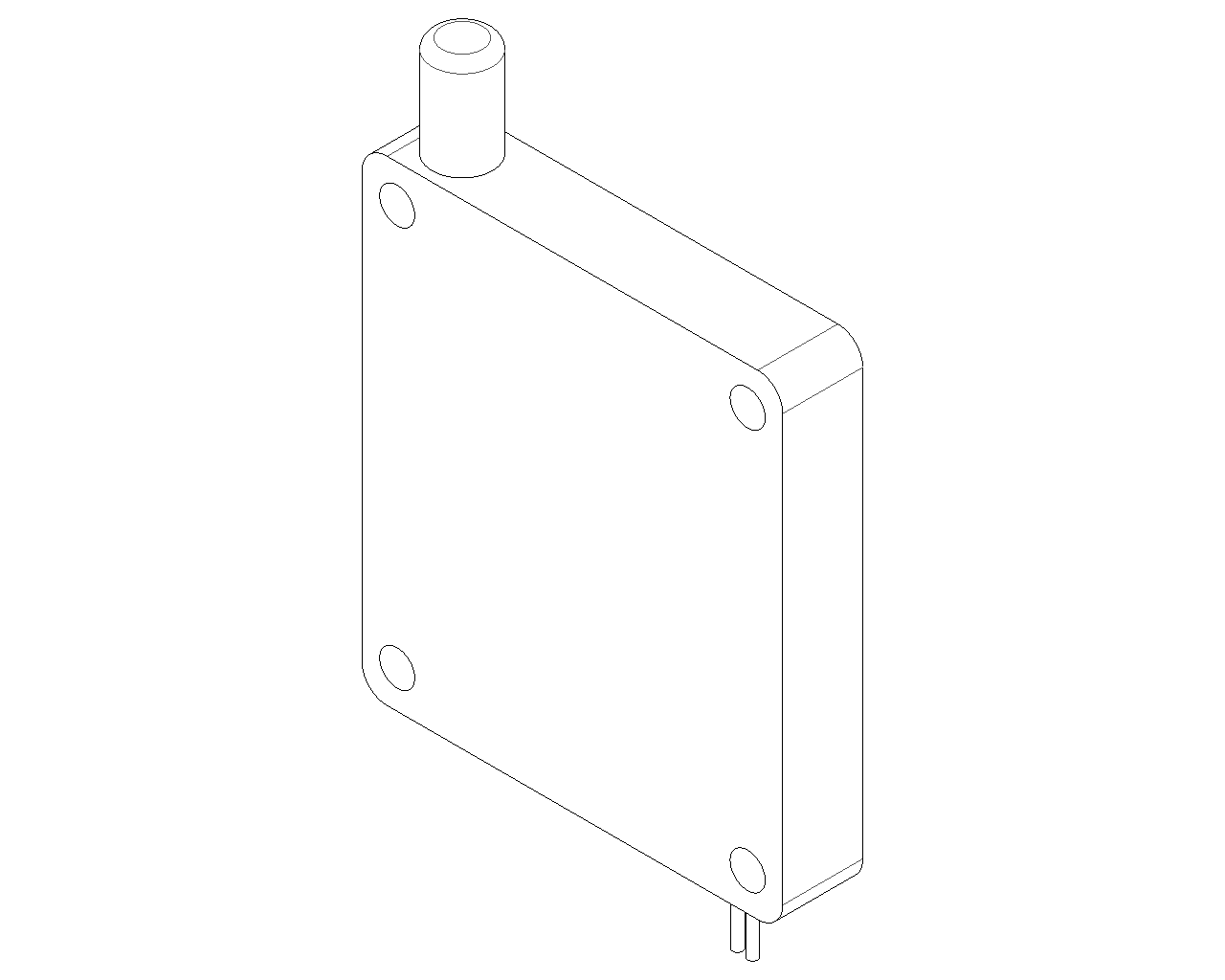

By-alarm Plus cord-operated contact
By-alarm Plus electromechanical cord-operated contact to protect roller shutters and shutters
产品状态
3 - Active
您可能也感兴趣
Class group
Alarm installations, emergency call and signalling
Alarm installations, emergency call and signalling
Class
Opening detector for danger detection system
Opening detector for danger detection system
Colour
Other
Other

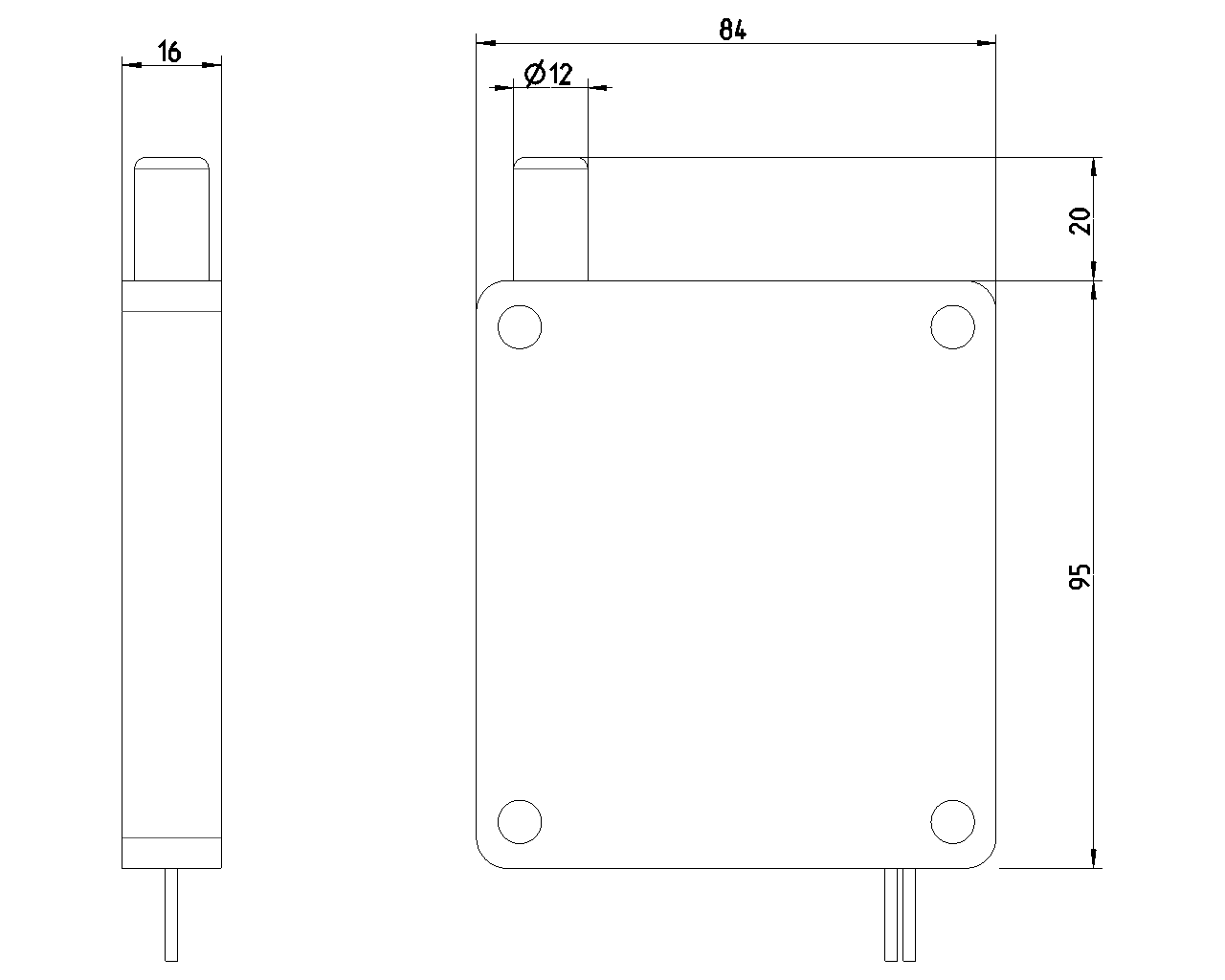

Diameter sensor
12,00 mm
12,00 mm
Width sensor
84,00 mm
84,00 mm
Height of sensor
115,00 mm
115,00 mm
最小订单数量: 1 NR
条形码
8007352135260
1 NR
11.2x9.6x9.8 [cm]
158.32 [g]
8007352648142
18 NR
37.5x30x21 [cm]
3,284 [g]
| 问题： | I connected a roller shutter sensor art.01825 to the input expansion module art. 01709 but it does not read the shutter movement. |
|---|---|
| 回答： | In the control panel parameters (on By-alarm Manager) Inputs > Special functions > Switch alarm–impulses per alarm, you can vary the number and length of the impulses (default 1 impulse, 160ms). Generally, for a roller shutter contact the settings are: from 3 to 6 impulses (check the shutter movement), 2ms. |
| 问题： | Can I connect roller shutter or inertia sensors (art.01825, art.01826) directly on the control panel 01700 or 01703 inputs? |
| 回答： | No. These sensors are managed exclusively by the expansion module art.01709 inputs. |
| 问题： | What are the dimensions of the sensor? |
| 回答： | The product dimensions are as follows: 102mm*98mm*16mm. |
