1P NO 24V 4-button device 2M - 02686.AX

Pdf
Vimar - 02686.AX - 1P NO 24V 4-button device 2M
Vimar - 02686.AX - 1P NO 24V 4-button device 2M

02686.AX
Wiring devices / Traditional wiring devices / EIKON / Devices

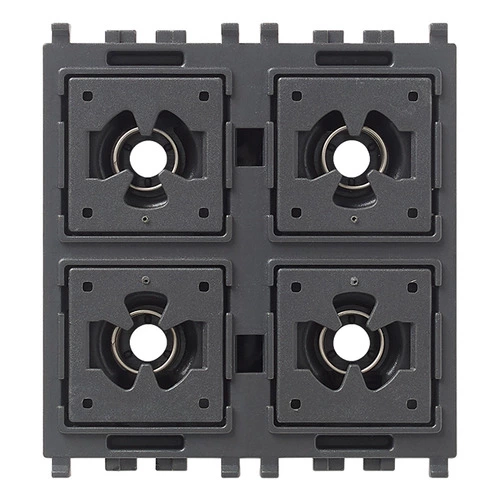

1P NO 24V 4-button device 2M
Control device with four push buttons 1P NO 24 VDC 50 mA max., to be completed with Flat interchangeable buttons, lighTable - 2 modules

产品状态
3 - Active

Class group
Domestic switching devices
Class
Push button
Number of modules (module system)
200
Nominal voltage
24 V
Rated current
50,00 A
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Matt
Colour
Other
RAL-number (similar)
9004
Transparent
No
Label space/information surface
Yes
Device width
44,80 mm
Device height
49,00 mm
Device depth
22,20 mm

10. EAC Eurasian Customs Union

92. RoHS UAE

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352656871
1 NR
5.1x4.3x5.3 [cm]
43 [g]
Barcode Qty 10 NR
8007352656888
10 NR
26.9x11.6x4.9 [cm]
511 [g]
