Home autom.dial thermostat 2M grey代码 02971
- 02971
- Smart systems&products / By-me Plus / Shared components / Devices

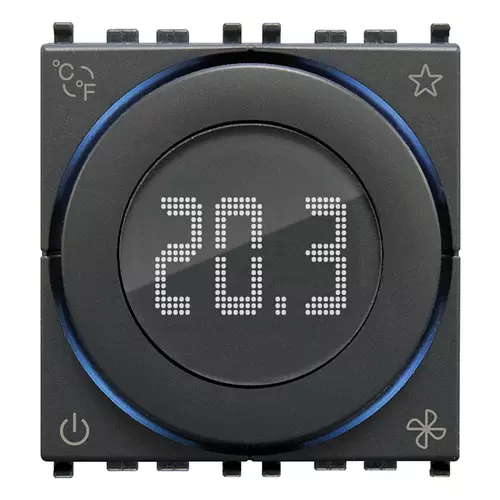

- Home autom.dial thermostat 2M grey
- Home automation rotary dial thermostat for room temperature control (heating and air conditioning), 2- and 4-pipe system management, 3-speed and proportional fan coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, can be interfaced with actuator with proportional analogue outputs 01466.1 to realize a class V modulating room thermostat (contribution 3%), 1 input for electronic temperature sensor 20432, 19432 or 14432 or wired temperature sensor 02965.1, white LED backlighting, grey - 2 modules. To be completed with Eikon, Arké and Plana cover plates, for Idea with dedicated mounting frame 16723
- 产品状态
- 3 - Active
您可能也感兴趣

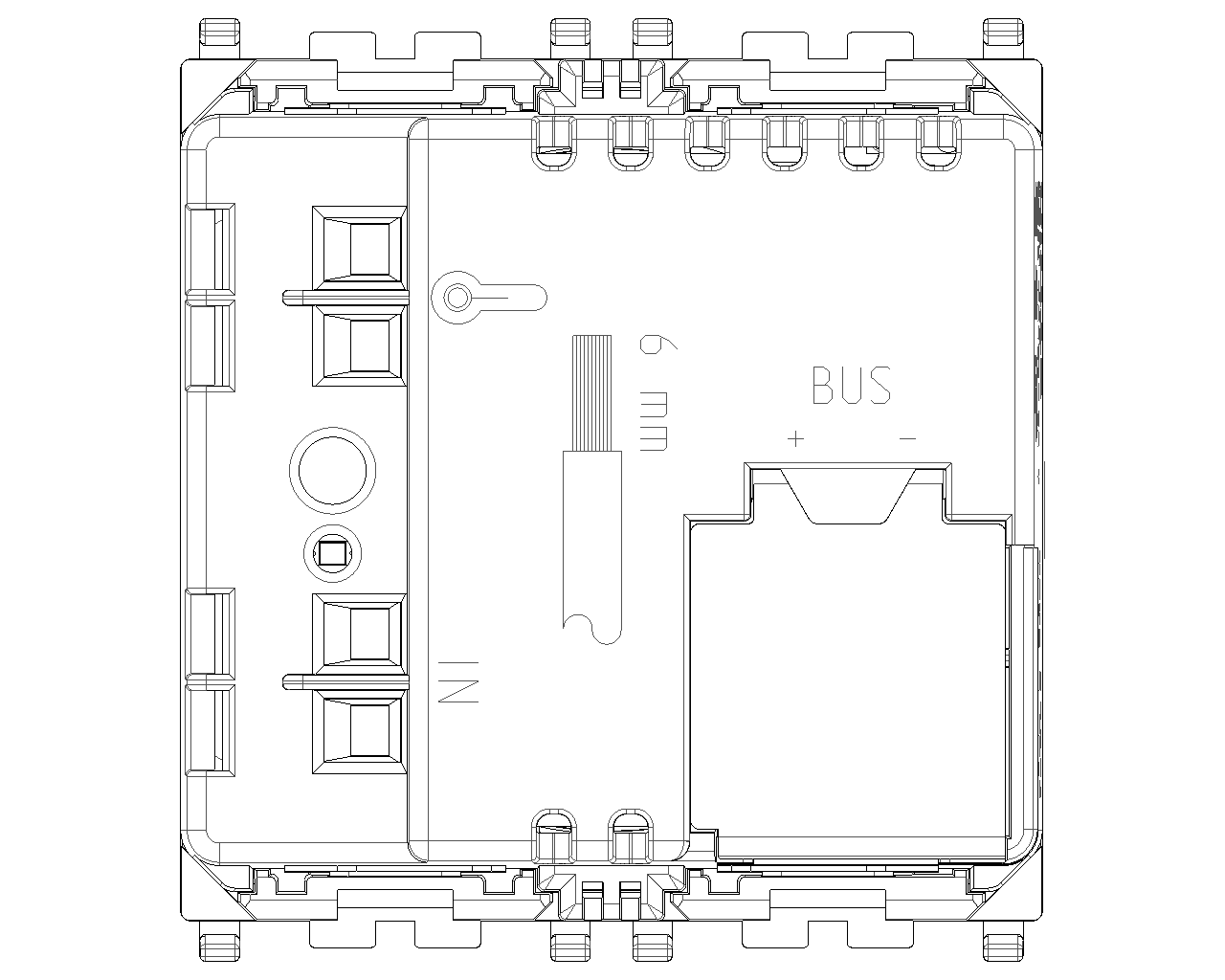

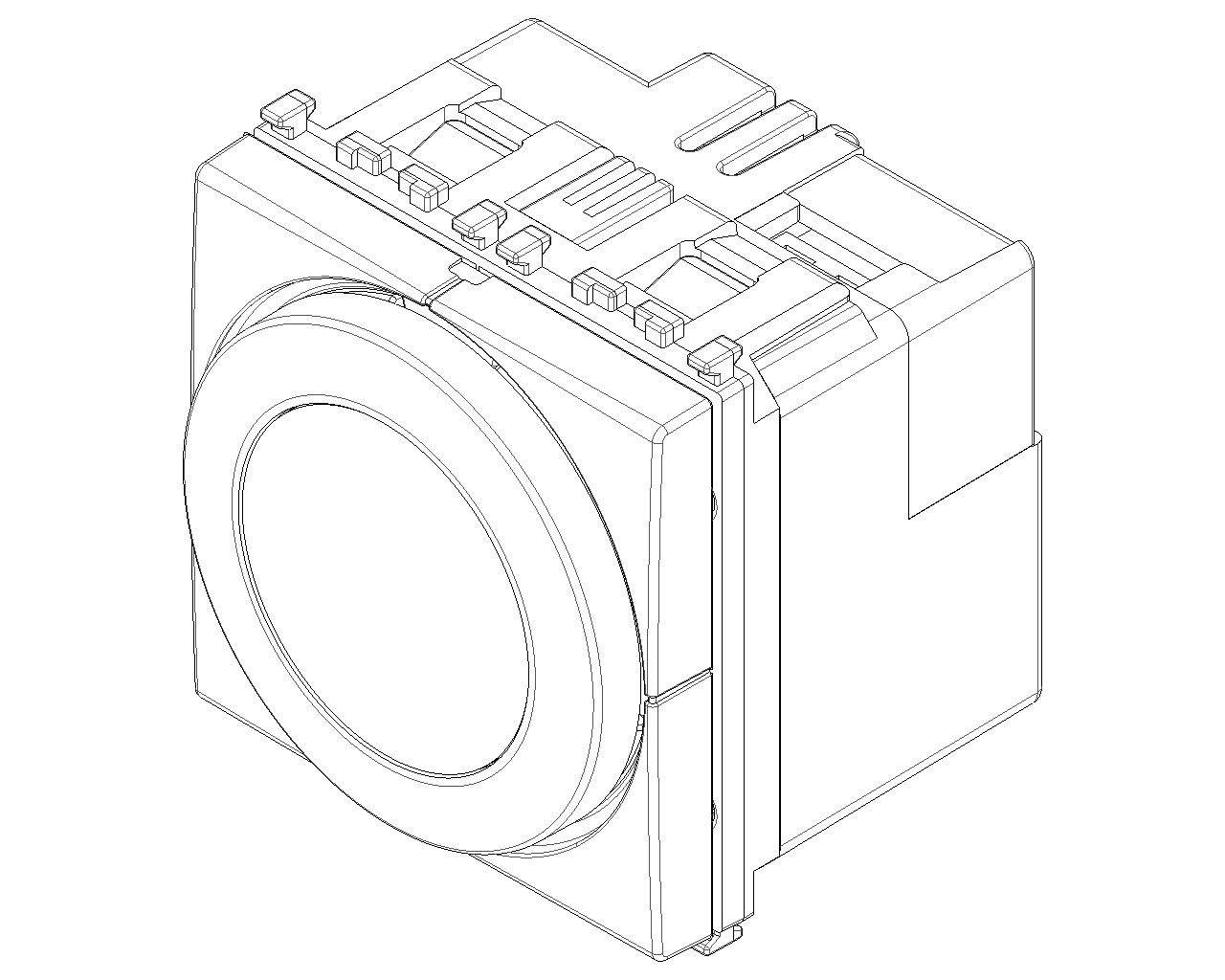

图纸
Class group
Stats, switches and controllers
Stats, switches and controllers
Class
Room thermostat
Room thermostat
Model
Other
Other
Connection
2-wire
2-wire
With receiver
No
No
External sensor
Yes
Yes
Thermal feedback
Parallel
Parallel
Control characteristic
PID
PID
Suitable for heating
Yes
Yes
Number of heater outputs
1
1
Number of cooler outputs
1
1
Adjustable differential
Yes
Yes
Temperature readable
Yes
Yes
With sound indicator
No
No
Sensor/feeler type
Resistance sensor
Resistance sensor
Mounting method
Flush-mounted
Flush-mounted
Number of modules (module system)
2
2
With display
Yes
Yes
Operation
Turn
Turn
With tap water circuit
No
No
Max. contact voltage
29 V
29 V
Max. contact load
0 A
0 A
Degree of protection (IP)
IP20
IP20
Explosion-proof
Yes
Yes
Colour
Grey
Grey
RAL-number
7024
7024

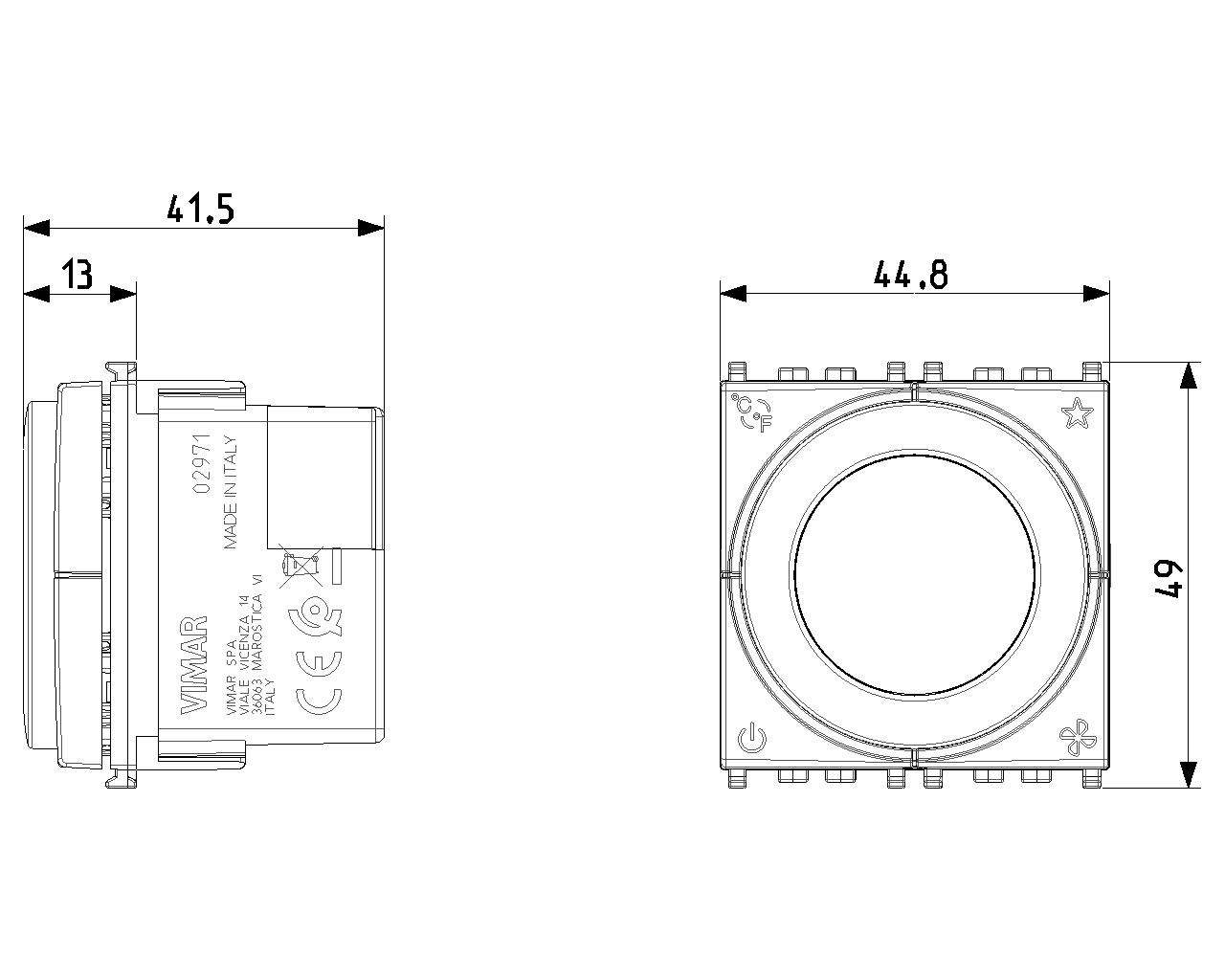

Height
49,00 mm
49,00 mm
Width
44,80 mm
44,80 mm
Depth
41,50 mm
41,50 mm
Diameter
0,00 mm
0,00 mm
Class of the temperature control
V
V
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
92. RoHS UAE
最小订单数量: 1 NR
条形码
8007352668454
1 NR
5.7x5.3x7.7 [cm]
75 [g]
8007352746381
60 NR
37.5x30x13.5 [cm]
4,816.8 [g]
