2P+E 16A universal outlet white - 06416.B

Pdf

Vimar - 06416.B - 2P+E 16A universal outlet white

06416.B

Mascot / Devices / Italian standard socket outlets

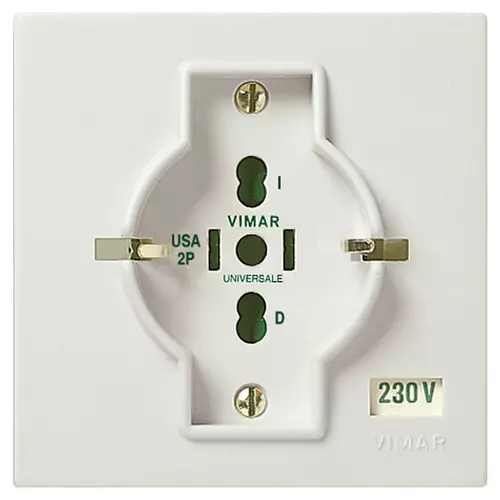

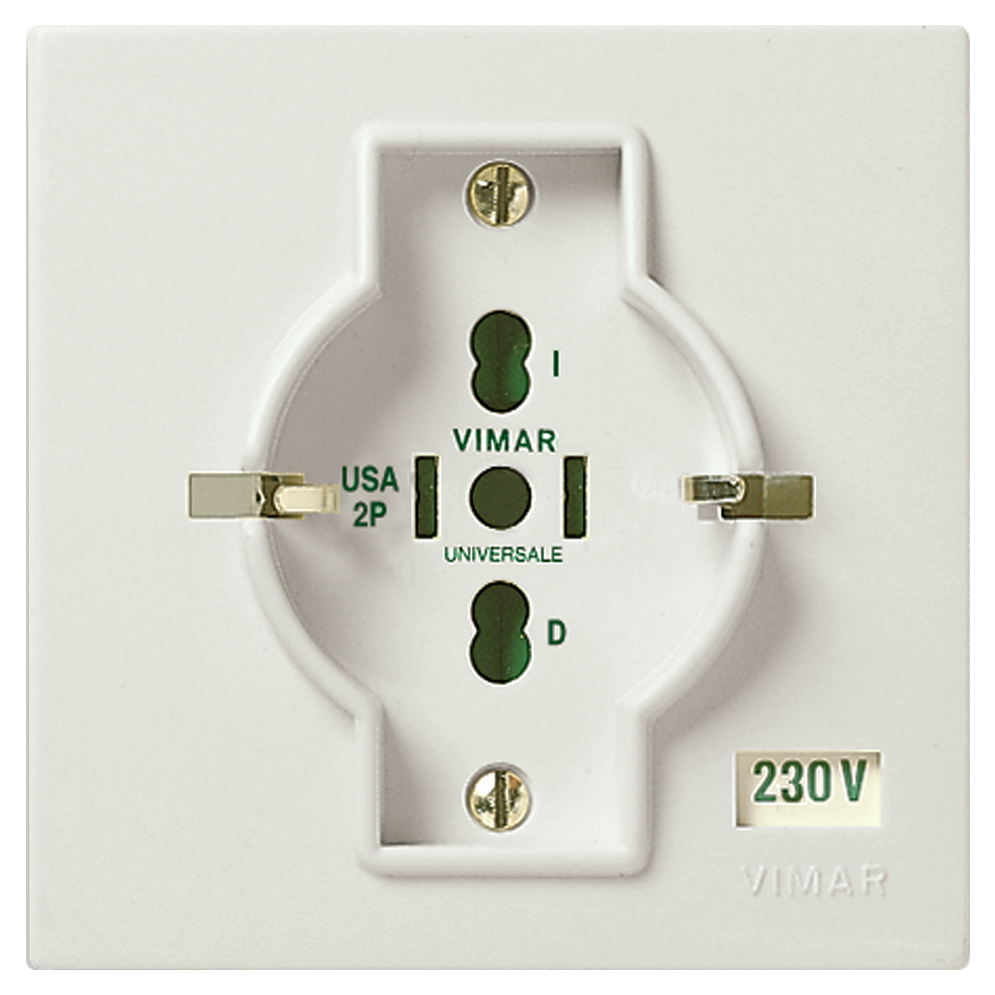

2P+E 16A universal outlet white
2P+E 16 A 250 V~ SICURY socket outlet, universal, for 2P 2,5 A Europlugs, for 2P and 2P+E 10 A and 16 A Italian standard plugs, for 2P+E 16 A German standard plugs and for 2P 15 A 125 V~ American standard plugs with non-polarized flat blades, white. Earth connection is not realized with 2P+E 16 A 250 V~ French standard plug

产品状态
2 - Will be discontinued

您可能也感兴趣

V71001 - Flush mounting box ø 60mm light blue

V71001.AU - Flush mounting box ø 60mm light black

V71701 - Round flush-mount box f/hollow wall blue

Class group
Domestic switching devices

Class
Socket outlet

Model
Other

With built-in USB power supply
No

Number of units
1

Number of modules (module system)
2

Number of socket outlets switchable
0

Imprint/indication
None

Connection type
Screwed terminal

With hinged lid
No

With enhanced contact protection
Yes

Label space/information surface
Yes

Colour
White

RAL-number (similar)
9003

Metallic colour
No

Transparent
No

Lockable
No

Eject-mechanism
No

Insulated mounting
No

With function lighting
No

Over voltage protection
No

Fault current protection
No

Mounting method
Flush mounted (plaster)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

With on/off switch
No

With loop through function
No

Rotated central insert
No

Nominal current
16 A

Nominal voltage
250 v

Frequency
50,00 - 60,00 HZ

Suitable for degree of protection (IP)
IP20

Impact strength
Other

Width of device
80,00 mm

Height of device
80,00 mm

Depth of device
41,00 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

最小订单数量: 20 NR

条形码

8007352094956

1 NR

8x8x4.1 [cm]

80.87 [g]

8007352094963

20 NR

35.5x24.8x8.7 [cm]

1,855.47 [g]

分享

Codice QR scheda articolo

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
