2P+E 16A Multivimar outlet - 08148

Pdf
08148

8000 / Devices / Italian standard socket outlets

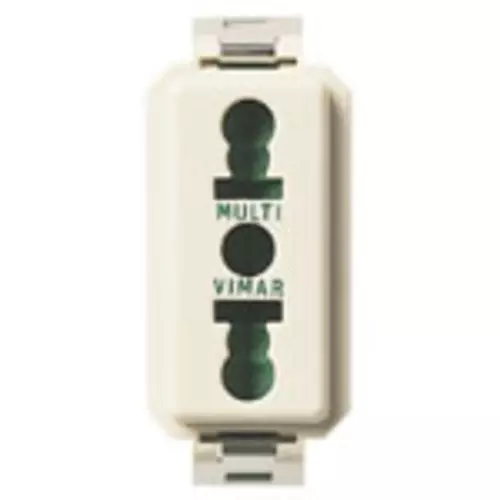

2P+E 16A Multivimar outlet
2P+E 16 A 250 V~ multivimar SICURY socket outlet, for 2P 2,5 A Europlugs, for 2P and 2P+E 10 A and 16 A Italian standard plugs and for 2P 15 A 125 V~ American standard plugs with non-polarized flat blades

产品状态
2 - Will be discontinued

Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9001
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device height
45,00 mm
Device depth
35,50 mm

00. CE Marking - EU

37. Marking - Morocco

最小订单数量: 50 NR

条形码

Barcode Qty 1 NR
8007352014114
1 NR
4.1x2.8x5.3 [cm]
28.27 [g]
Barcode Qty 50 NR
8007352005716
50 NR
21.4x11.6x14.2 [cm]
1,501.07 [g]
