Plate 2M aluminium screw fix. gold - 08506

Pdf

08506
Wiring devices / Traditional wiring devices / 8000 / Cover plates

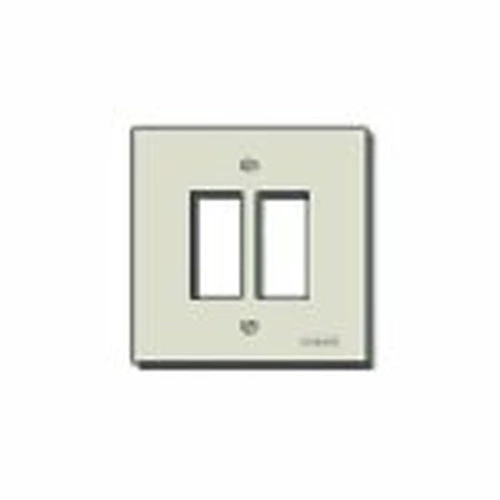

Plate 2M aluminium screw fix. gold
2-module cover plate for ø 60 mm round mounting boxes, anodized aluminium, screw fixing, gold. For mounting frame 08502

产品状态
2 - Will be discontinued

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Screw mounting
Width
79,50 mm
Height
79,50 mm
Depth
6,00 mm
Built-in width
79,50 mm
Built-in height
79,50 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352040991
1 NR
8x8x0.6 [cm]
14.2 [g]
Barcode Qty 20 NR
8007352007192
20 NR
14.2x9.8x9.1 [cm]
328.07 [g]
