Plate 3M alum. screwfix gold - 08537

Pdf
08537

8000 / Cover plates / Screw fixing metal cover plates

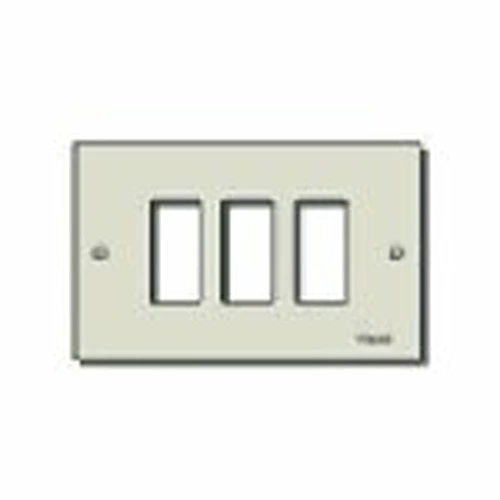

Plate 3M alum. screwfix gold
3-module cover plate, anodized aluminium, for 3-module mounting boxes, screw fixing, gold. For mounting frame 08531

产品状态
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Screw mounting
Width
120,00 mm
Height
75,50 mm
Depth
6,00 mm
Built-in width
120,00 mm
Built-in height
75,50 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352041271
1 NR
12x7.5x0.6 [cm]
22.33 [g]
Barcode Qty 20 NR
8007352004986
20 NR
13.8x13.4x8.7 [cm]
503.93 [g]
