Plate 2M alum. snapfix gold - 08606

Pdf
08606

8000 / Cover plates / Snap fixing metal cover plates

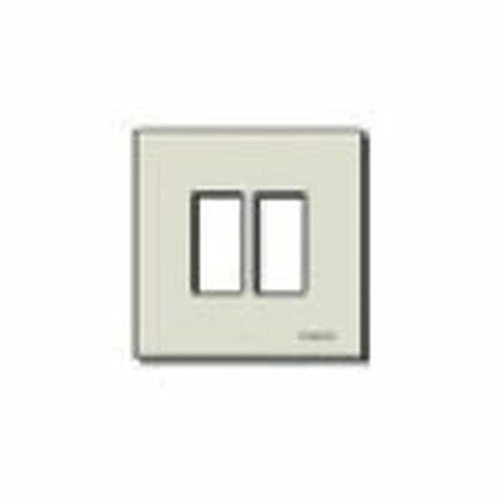

Plate 2M alum. snapfix gold
2-module cover plate for ø 60 mm round mounting boxes, anodized aluminium, snap fixing, gold. For mounting frame 08502

产品状态
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
79,50 mm
Height
79,50 mm
Depth
6,00 mm
Built-in width
79,50 mm
Built-in height
79,50 mm
Diameter bore hole (opening)
0 mm

37. Marking - Morocco

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352041929
1 NR
8x8x0.6 [cm]
13.47 [g]
Barcode Qty 20 NR
8007352009615
20 NR
14.2x9.8x9.1 [cm]
311.67 [g]
