Plate 4M alum. snapfix gold - 08638

Pdf

08638
Wiring devices / Traditional wiring devices / 8000 / Cover plates

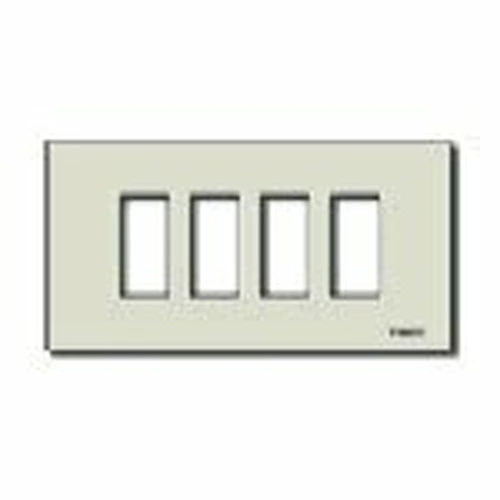

Plate 4M alum. snapfix gold
4-module cover plate for 4-module flush mounting boxes, anodized aluminium, snap fixing, gold. For mounting frame 08532

产品状态
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
145,00 mm
Height
75,50 mm
Depth
6,00 mm
Built-in width
145,00 mm
Built-in height
75,50 mm
Diameter bore hole (opening)
0 mm
最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352042377
1 NR
14.5x7.5x0.6 [cm]
25.2 [g]
Barcode Qty 20 NR
8007352009776
20 NR
22x15.9x8.2 [cm]
599.53 [g]
