Plate 4M alum. snapfix bronze - 08638.BR

Pdf
08638.BR

8000 / Cover plates / Snap fixing metal cover plates

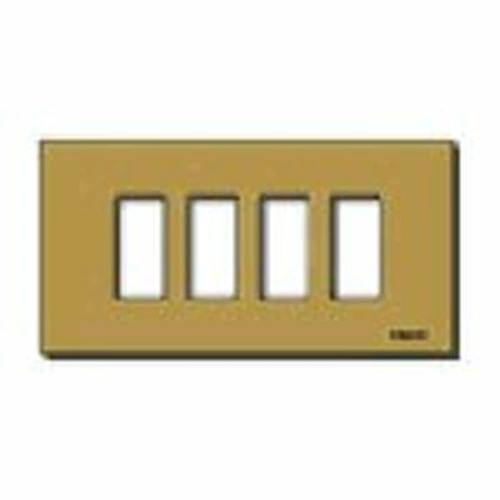

Plate 4M alum. snapfix bronze
4-module cover plate for 4-module flush mounting boxes, anodized aluminium, snap fixing, bronze. For mounting frame 08532

产品状态
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
Number of switch inserts
0
With mounting grid
Yes
Suitable for floor box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
145,00 mm
Height
75,50 mm
Depth
6,00 mm
Built-in width
145,00 mm
Built-in height
75,50 mm
Diameter bore hole (opening)
0 mm

37. Marking - Morocco

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352042391
1 NR
14.5x7.5x0.6 [cm]
24.53 [g]
Barcode Qty 20 NR
8007352009783
20 NR
22x15.9x8.2 [cm]
551.47 [g]
