09594.0
Wiring devices / View Wireless wiring devices / NEVE UP / Devices

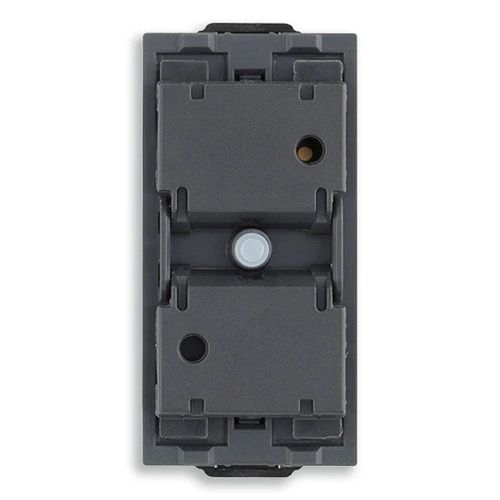

Rolling shutter IoT connected mechanism
产品状态
3 - Active
您可能也感兴趣
单, 说明书, 文档
- Light multilanguage instructions sheet (749 kb)
- Foglio istruzioni Full (378 kb)
- Notice technique Full (378 kb)
- Ficha de instrucciones Full (376 kb)
- Full instructions sheet (373 kb)
- Φυλλάδιο οδηγιών Full (510 kb)
- Anweisungsblatt Full (377 kb)
- ورقة الإرشادات Full (438 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)

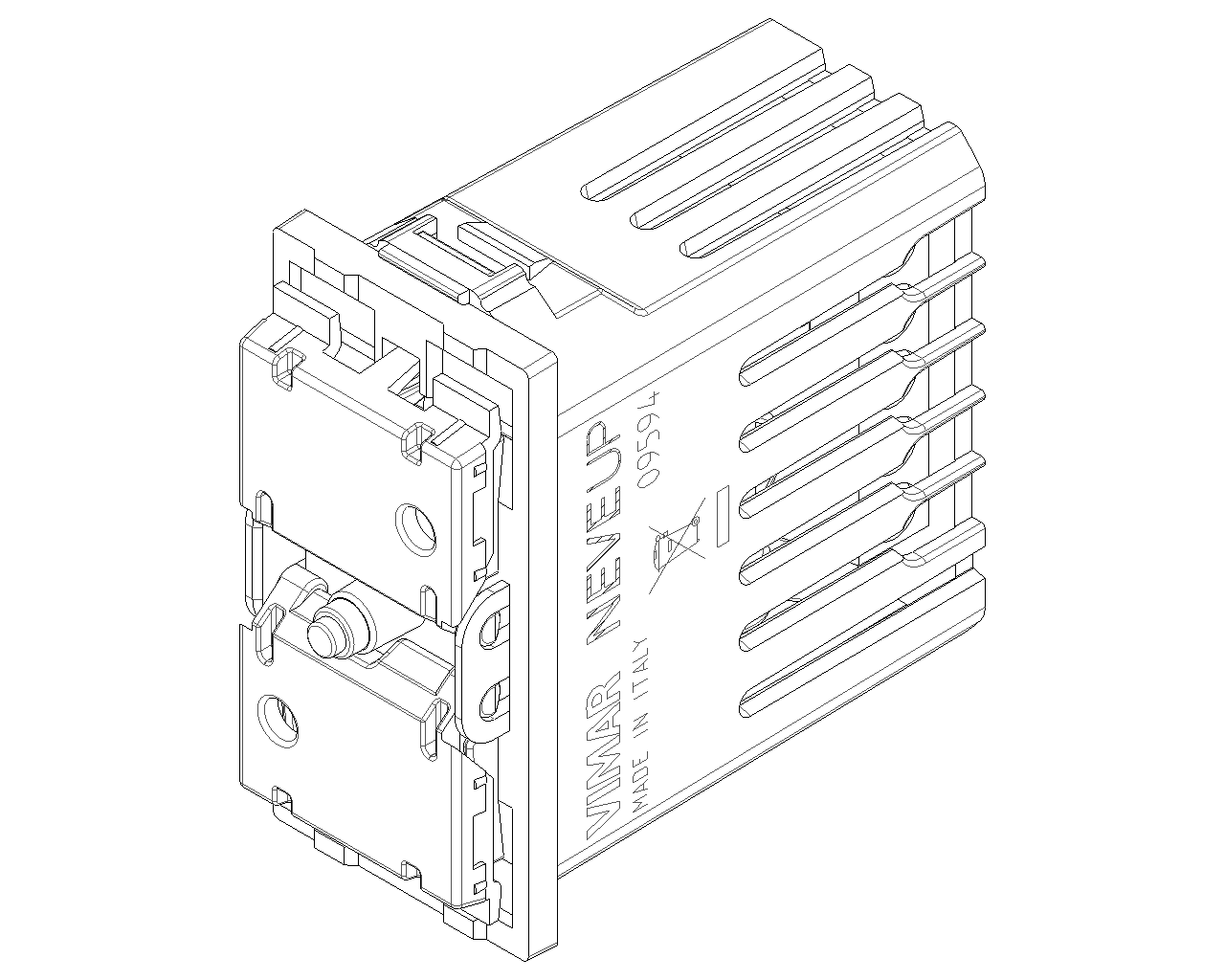

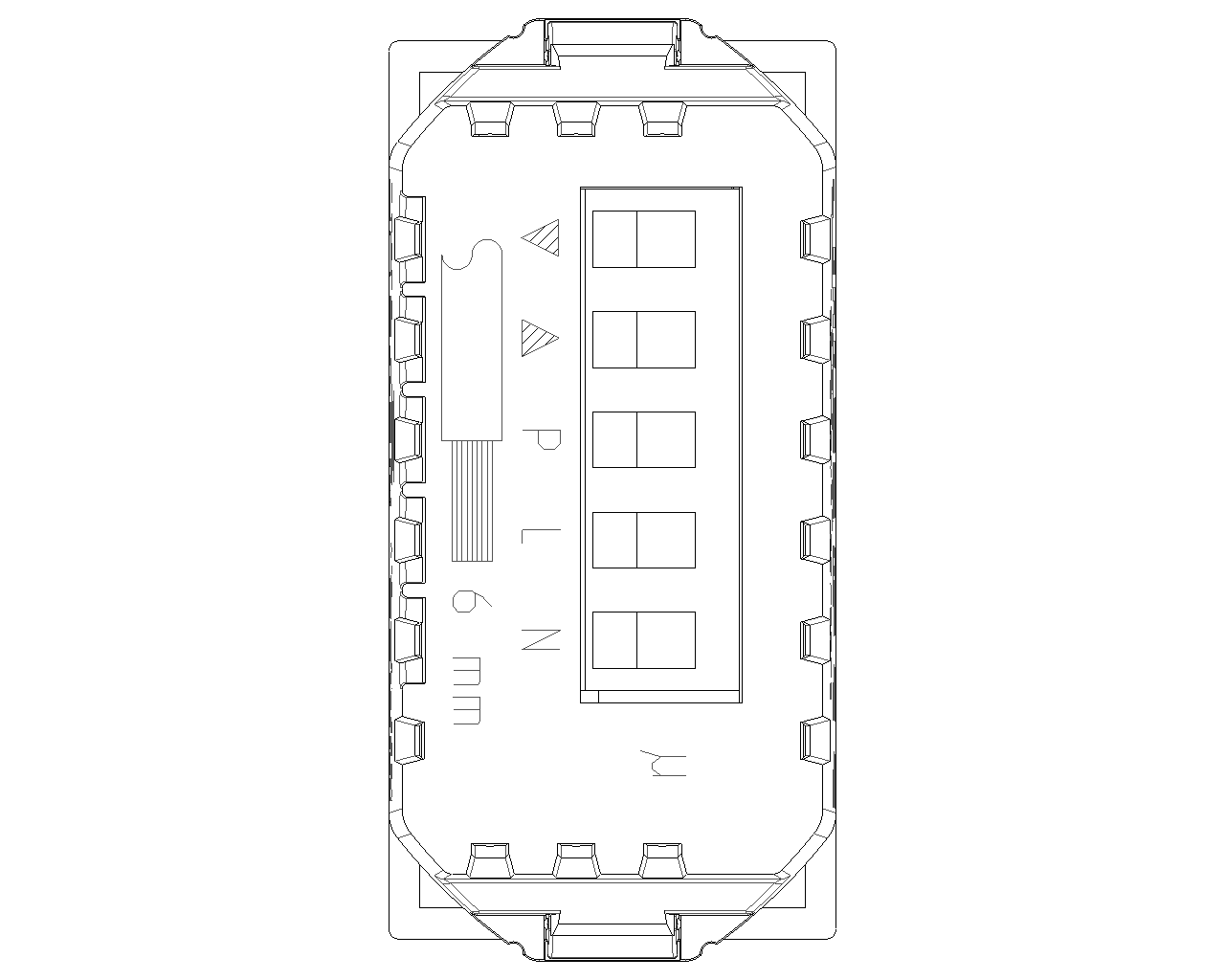

图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Normally open contact (NO)
Normally open contact (NO)
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Control element
Control element
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Built-in installation
Built-in installation
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
Yes
Yes
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
Green
Green
RAL-number (similar)
9003
9003
Label space/information surface
No
No
Lighting
Yes
Yes
Function lighting
Illuminated (on)
Illuminated (on)
Type of lighting
LED not exchangeable
LED not exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Impact strength
Not available
Not available
Nominal voltage
240 V
240 V
Rated current
2,00 A
2,00 A
Switching current for fluorescent lamps
0
0
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No

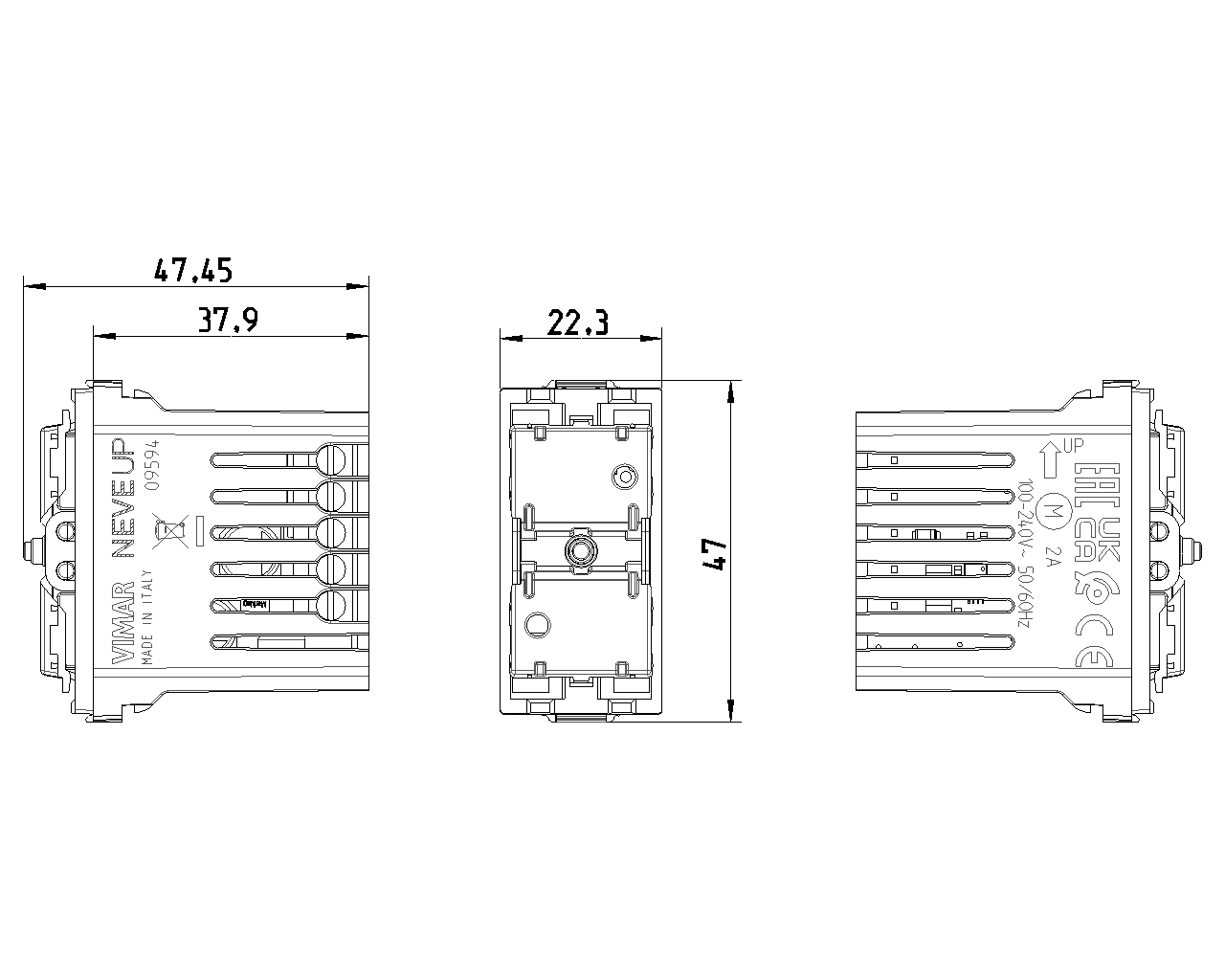

Device width
22,30 mm
22,30 mm
Device height
47,00 mm
47,00 mm
Device depth
47,50 mm
47,50 mm
Built-in depth
37,90 mm
37,90 mm
Min. depth of built-in installation box
0,00 mm
0,00 mm
Compatible with Apple HomeKit
Yes
Yes
Compatible with Google Assistant
Yes
Yes
Compatible with Amazon Alexa
Yes
Yes
IFTTT support available
Yes
Yes
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
40. Bluetooth technology
42. Zigbee certified
最小订单数量: 1 NR
条形码
8007352732223
1 NR
5.2x3.5x5.3 [cm]
44.4 [g]
8007352732230
60 NR
27x23x12.5 [cm]
2,846 [g]
