Vimar - 09920.14 - Surface-box 12-14M Idea grey

09920.14
System infrastructure / Enclosures and control units / Connector block boxes / Surface mounting

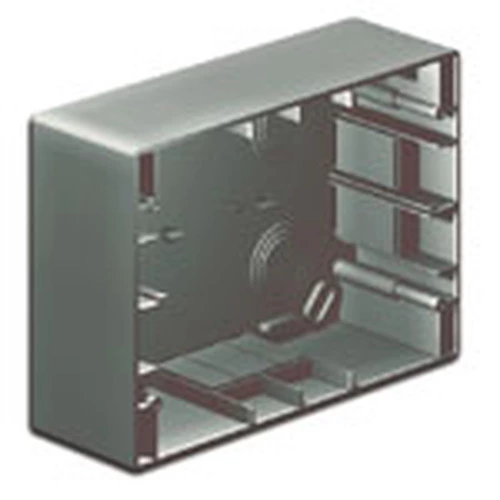

Surface-box 12-14M Idea grey
Surface mounting box for 12 (6+6)-module Idea and 14 (7+7)-module Eikon or Plana with relevants mounting frames and cover plates, Idea grey

产品状态
2 - Will be discontinued

ETIM技术数据
供应数据

Class group
Connection material (electrotechnical)

Class
Box/housing for surface mounting on the wall/ceiling

Max. conductor cross section
0

Equipped with
None

Shape
Rectangular

Mounting method
Wall-/ceiling mounting

Mounting in the soil
No

Mounting under water
No

For tube diameter
20/25 mm

Inlet from the rear
Yes

Length
152,00 mm

Width
206,00 mm

Depth
70,00 mm

Diameter
0 mm

Tackable
No

Number of inlets
8

Type of housing feed-through
None

Material
Plastic

Halogen free
Yes

Surface protection
Untreated

Colour
Grey

Degree of protection (IP)
IP20

Cover model
Other

Transparent cover
No

Cover attachment
Screwed

Castable
No

With casting compound
No

Sealable
No

Rated insulation voltage Ui
450 V

Circuit integrity
None

With screening
No

Weatherproof
No

Operating temperature
0 - 60 °C

Explosion-tested version
No

For Ex-zone gas
None

For Ex-Zone dust
None

最小订单数量: 25 NR

条形码

8007352117112

1 NR

24.8x14.6x7.5 [cm]

240 [g]

8007352117129

25 NR

59x38.5x30 [cm]

6,842 [g]

合法

Vimar保留随时修改所示产品的特性的权利，恕不另行通知。安装必须由符合资质的人员执行，严格遵守所在国家现行的电气材料安装相关规定。有关产品卡信息的使用条件，请参阅使用条件。
