1P NC 10A push button mechanism - 14010.0

Pdf

14010.0
Wiring devices / Traditional wiring devices / PLANA / Devices

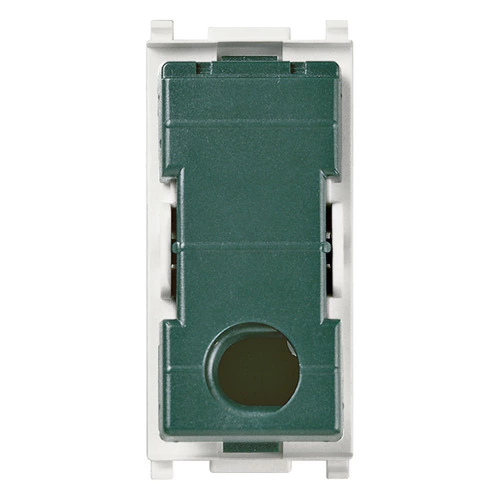

1P NC 10A push button mechanism
1P NC 10 A 250 V~ push button mechanism, lightable, to complete with 1, 2 or 3-module button

产品状态
3 - Active

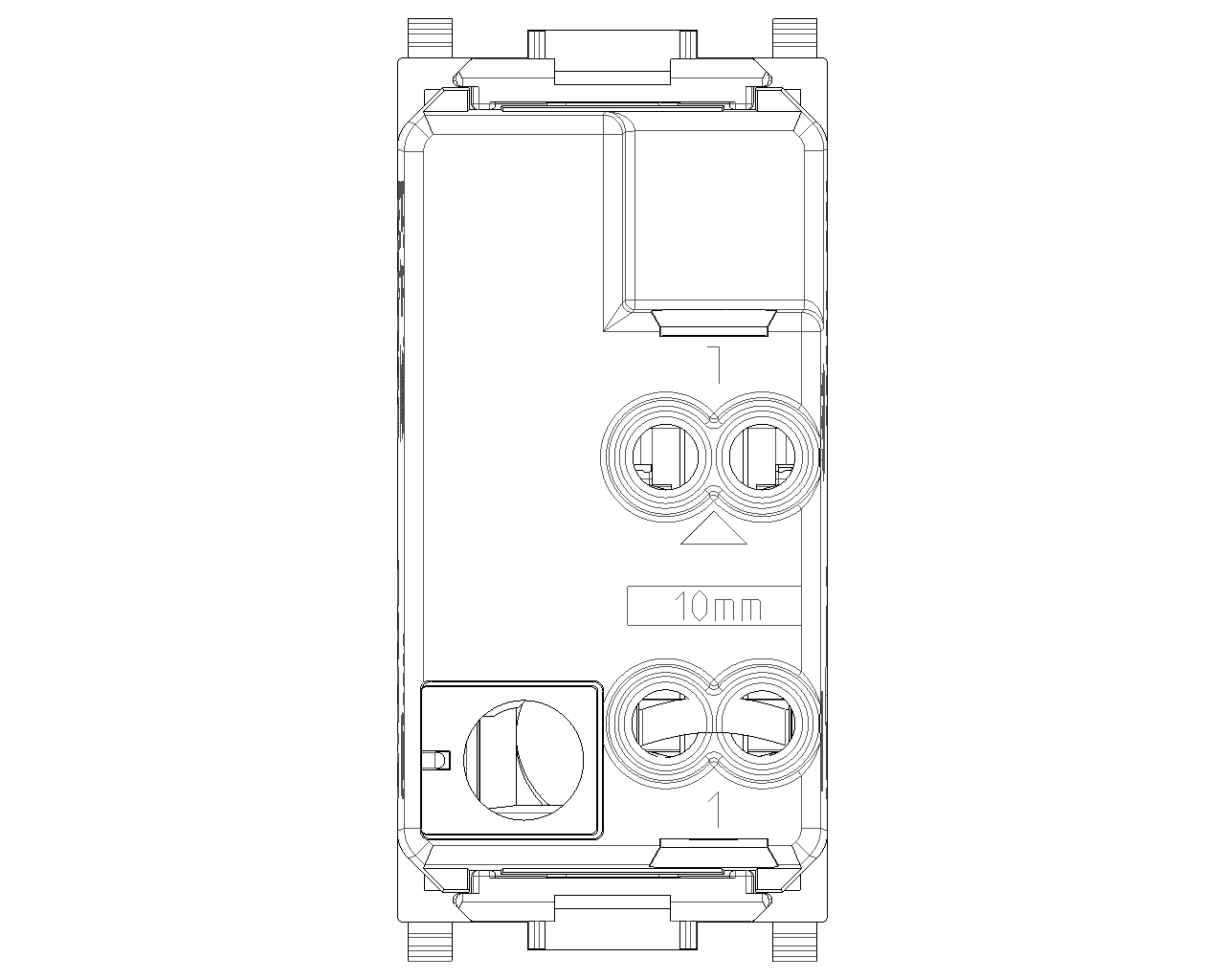

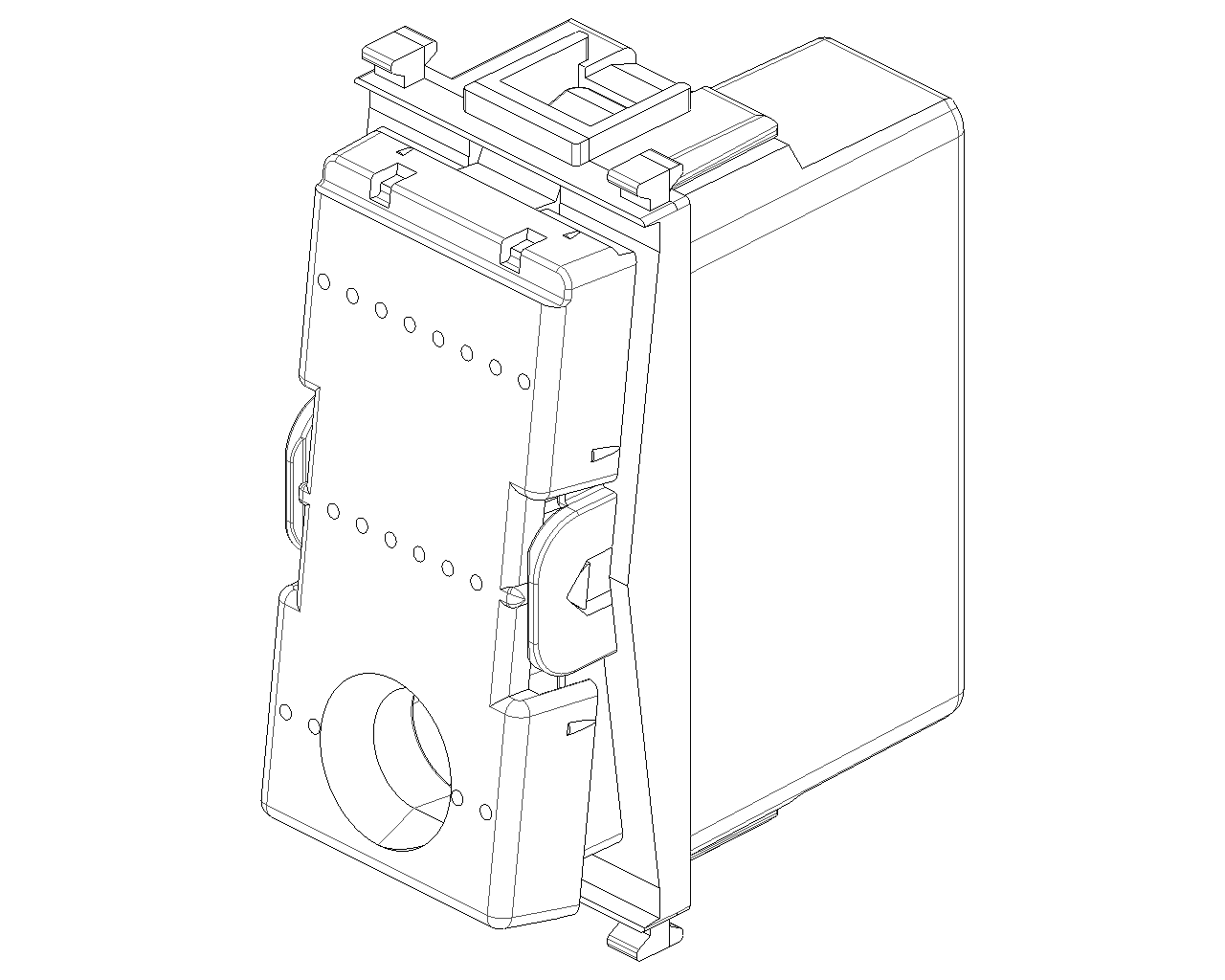

图纸

Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40

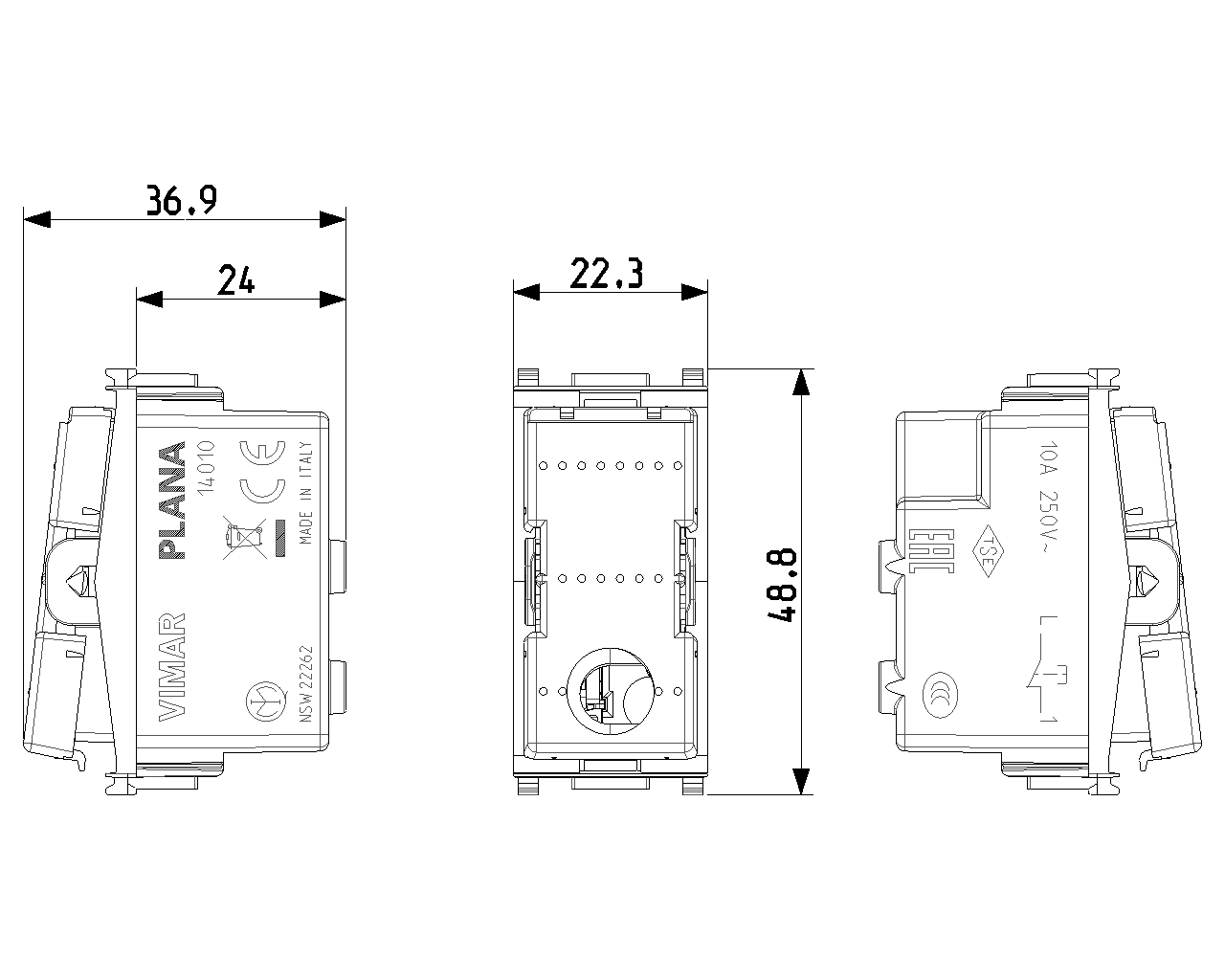

Device width
22,30 mm
Device height
49,00 mm
Device depth
38,70 mm

00. CE Marking - EU

10. EAC Eurasian Customs Union

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

37. Marking - Morocco

43. UKCA mark - Great Britain

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352117273
1 NR
4.1x2.8x5.3 [cm]
24.53 [g]
Barcode Qty 10 NR
8007352263697
10 NR
14.4x9x6 [cm]
280.67 [g]
Barcode Qty 160 NR
8007352642102
160 NR
37.5x30x13.5 [cm]
4,840 [g]
