Button 1M bell symbol white - 14021.C

Pdf
Vimar - 14021.C - Button 1M bell symbol white
Vimar - 14021.C - Button 1M bell symbol white

14021.C
Wiring devices / Traditional wiring devices / PLANA / Buttons

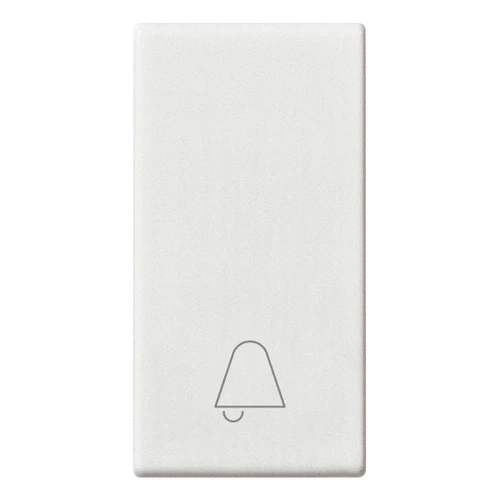

Button 1M bell symbol white
Interchangeable 1-module button, with lightable bell symbol, white

产品状态
3 - Active

图纸

PNG DXF
PNG DXF
PNG DXF
Class group
Domestic switching devices
Class
Control element/cover plate for domestic switching devices
Model
One-part rocker
Imprint/indication
Symbol ˝bell˝
Utilization
Switch/push button
Suitable for touch sensor connector for bus system
No
Type of fastening
Clamp mounting
Monitoring window/light outlet
Yes
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9003
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP40
Depth
790,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

43. UKCA mark - Great Britain

96. Electrotechnical expert

最小订单数量: 50 NR

条形码

Barcode Qty 1 NR
8007352114753
1 NR
4.4x2.2x0.8 [cm]
3.2 [g]
Barcode Qty 5 NR
8007352114760
5 NR
4.1x2.8x5.3 [cm]
19 [g]
Barcode Qty 50 NR
8007352114777
50 NR
14.4x9x6 [cm]
223.4 [g]
Barcode Qty 800 NR
8007352636323
800 NR
37.5x30x13.5 [cm]
3,880 [g]
