14591.0
Wiring devices / View Wireless wiring devices / PLANA / Devices
IoT connected device mechanism
VIEW Wireless electronic control mechanism, local control with push button or remote control, double IoT technology on Bluetooth 5.0 standard for the creation of VIEW Wireless mesh system and on Zigbee 3.0 standard, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, to be completed with Plana 1-module interchangeable buttons
产品状态
3 - Active
您可能也感兴趣
单, 说明书, 文档
- Light Multilanguage instructions sheet (680 kb)
- Foglio istruzioni Full (505 kb)
- Full instructions sheet (503 kb)
- Φυλλάδιο οδηγιών Full (647 kb)
- Anweisungsblatt Full (507 kb)
- Feuille d’instructions Full (509 kb)
- Hoja de instrucciones Full (506 kb)
- Manuale app View Wireless (19181 kb)
- Manual View Wireless app (40958 kb)
- Manual app View Wireless (40735 kb)
- Installationsanleitung View Wireless (40757 kb)
- Manuel appli View Wireless (40963 kb)
- Εγχειρίδιο τεχνικού εγκατάστασης (41171 kb)
图纸
Class group
Domestic switching devices
Domestic switching devices
Class
Installation switch
Installation switch
Wiring system
Other
Other
Method of operation
Rocker/button
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Modular device for domestic switching devices
Number of modules (module system)
1
1
Push button switch
Yes
Yes
Number of rockers
1
1
Mounting method
Flush-mounted
Flush-mounted
Type of fastening
Engage (snap)
Engage (snap)
With mounting plate
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Halogen free
No
No
Anti-bacterial treatment
No
No
Surface protection
Untreated
Untreated
Surface finishing
Glossy
Glossy
Colour
Green
Green
RAL-number (similar)
9003
9003
Label space/information surface
No
No
Lighting
Yes
Yes
Function lighting
Other
Other
Type of lighting
LED not exchangeable
LED not exchangeable
Suitable for degree of protection (IP)
IP40
IP40
Switching current for fluorescent lamps
0
0
Monitoring contact
No
No
Connection type
Screwed terminal
Screwed terminal
Heating switch
No
No
Washing machine switch
No
No

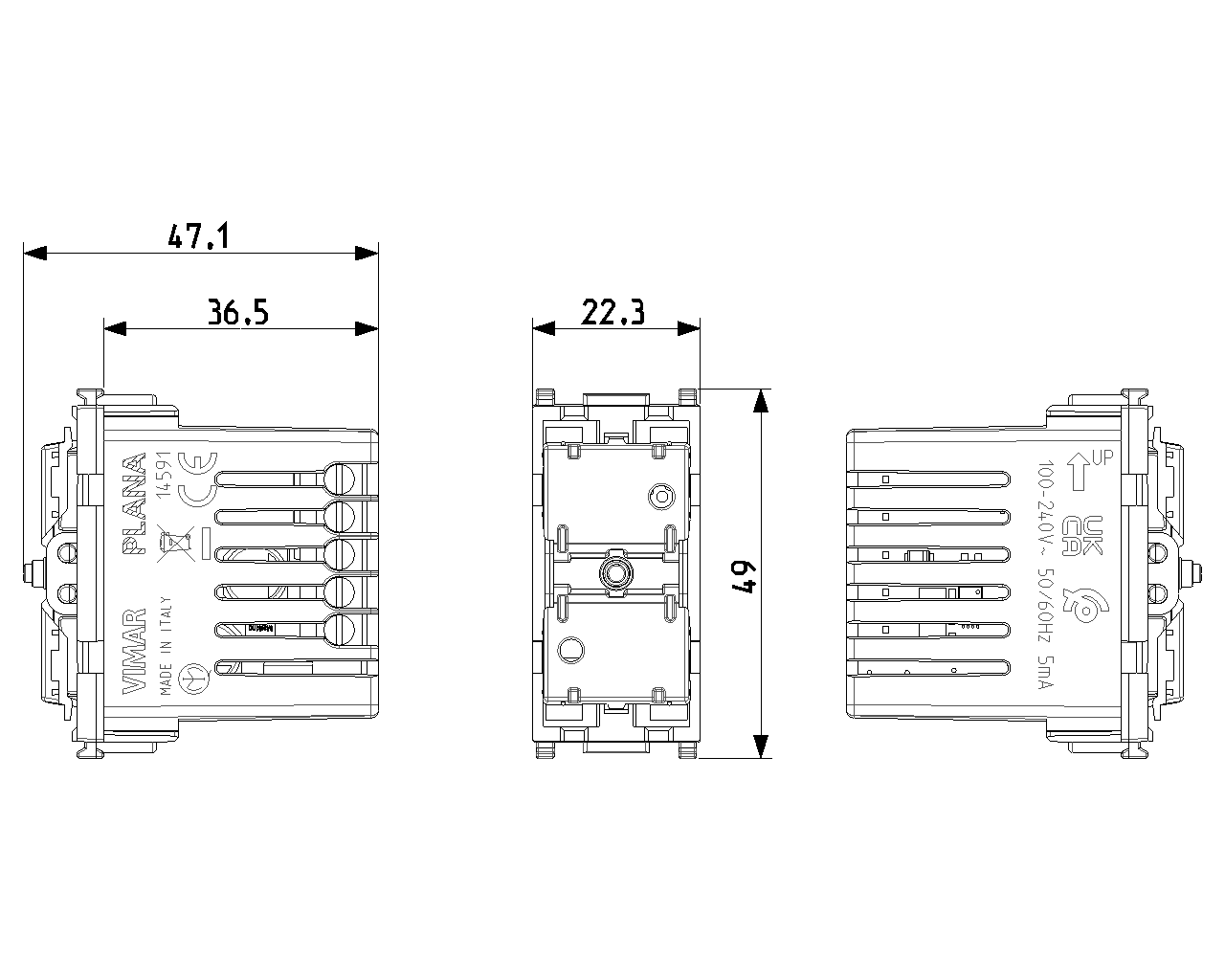

Device width
22,30 mm
22,30 mm
Device height
49,00 mm
49,00 mm
Built-in depth
36,50 mm
36,50 mm
Min. depth of built-in installation box
40,00 mm
40,00 mm
Compatible with Apple HomeKit
No
No
Compatible with Google Assistant
No
No
Compatible with Amazon Alexa
No
No
IFTTT support available
No
No
37. Marking - Morocco
40. Bluetooth technology
92. RoHS UAE
最小订单数量: 1 NR
条形码
8007352707191
1 NR
5.2x3.5x5.3 [cm]
34.6 [g]
8007352711181
60 NR
27x23x12.5 [cm]
2,255.8 [g]
