1P 16AX reversing switch white - 16013.B

Pdf

Vimar - 16013.B - 1P 16AX reversing switch white

16013.B
Wiring devices / Traditional wiring devices / IDEA / Devices

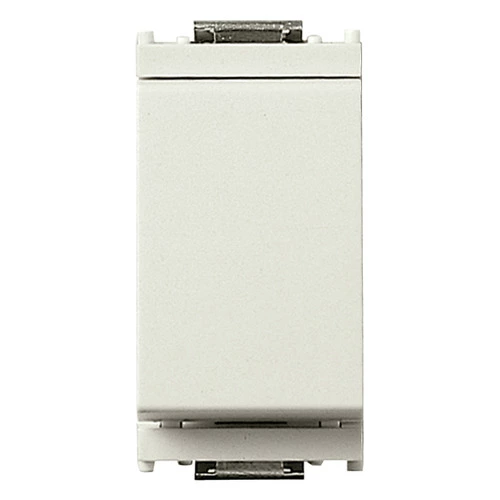

1P 16AX reversing switch white
1P 16 AX 250 V~ reversing switch, white. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

图纸

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Intermediate switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
White

RAL-number (similar)
9001

Label space/information surface
Yes

Illumination
No

Function lighting
Other

Type of lighting
Other

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
24,80 mm

Device height
50,10 mm

Device depth
39,30 mm

Built-in depth
25,50 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

37. Marking - Morocco

43. UKCA mark - Great Britain

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 50 NR

条形码

8007352047389

1 NR

4.1x2.8x5.3 [cm]

35.39 [g]

8007352047433

50 NR

21.4x11.6x14.2 [cm]

1,851.53 [g]

8007352640764

500 NR

57.5x22.5x30 [cm]

19,020 [g]
