BNC cable soldering socket conn. grey - 16350.S

Pdf
Vimar - 16350.S - BNC cable soldering socket conn. grey
Vimar - 16350.S - BNC cable soldering socket conn. grey

16350.S
Wiring devices / Traditional wiring devices / IDEA / Devices

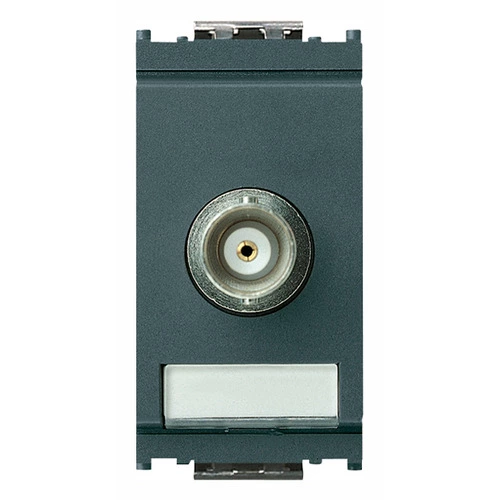

BNC cable soldering socket conn. grey
Bayonet type coaxial socket connector, jack BNC, for RG58, RG59/62, RX93 cables soldering, grey

产品状态
2 - Will be discontinued

Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
BNC/TNC
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
24,80 mm
Device height
50,10 mm
Device depth
30,50 mm

00. CE Marking - EU

99. WEEE Directive

最小订单数量: 10 NR

条形码

Barcode Qty 1 NR
8007352002937
1 NR
5.1x2.8x5.3 [cm]
18.93 [g]
Barcode Qty 10 NR
8007352003231
10 NR
14.4x11.6x6 [cm]
227.47 [g]
