1P 16AX 1-way switch lums grey - 17001.L

Pdf
17001.L

Idea / Reduced module devices / Basic devices

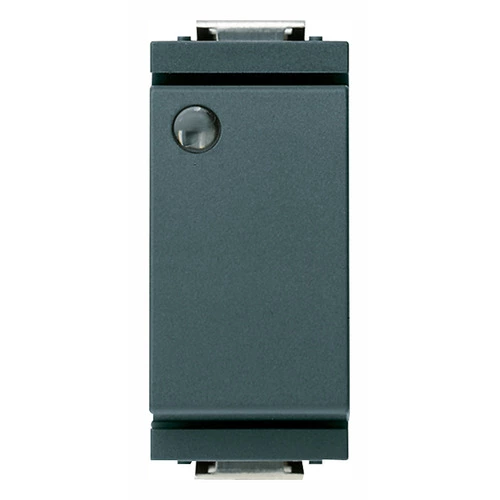

1P 16AX 1-way switch lums grey
1P 16 AX 250 V~ 1-way switch, luminous, for signalling unit, grey - reduced module. Provided without signalling unit. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush mounted (plaster)
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7015
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 v
Rated current
16 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Width of device
21,80 mm
Height of device
50,10 mm
Depth of device
32,50 mm
Built-in depth
23,30 mm

00. CE Marking - EU

01. IMQ - Italy

10. EAC Eurasian Customs Union

19. NOM - Mexico

20. IRAM - Argentina

37. Marking - Morocco

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352078369
1 NR
4.1x2.8x5.3 [cm]
25.13 [g]
Barcode Qty 20 NR
8007352078376
20 NR
21.4x11.6x6 [cm]
560.67 [g]
