1P 20AX 2-way switch 2M Metal - 19006.2.M

Pdf

19006.2.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

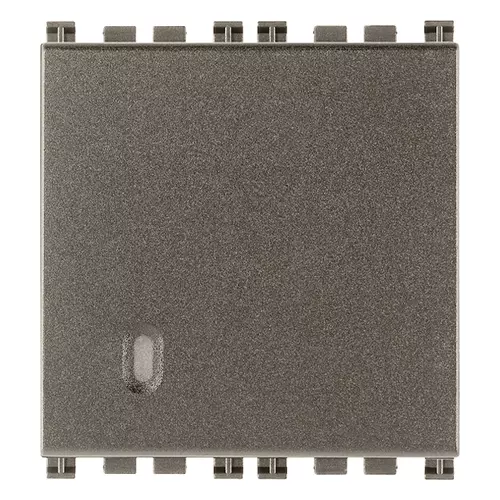

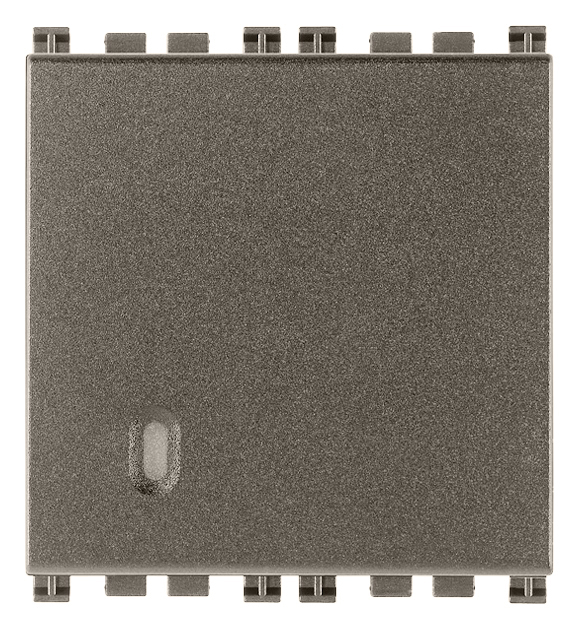

1P 20AX 2-way switch 2M Metal
1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, Metal - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44,80 mm
Device height
49,00 mm
Device depth
36,90 mm
Built-in depth
26,00 mm

00. CE Marking - EU

19. NOM - Mexico

36. ISI - India

37. Marking - Morocco

最小订单数量: 20 NR

条形码

Barcode Qty 1 NR
8007352590809
1 NR
5.1x4.3x5.3 [cm]
37.5 [g]
Barcode Qty 20 NR
8007352590816
20 NR
26.9x11.6x9 [cm]
831.4 [g]
