1P 20AX 2-way switch Metal - 19006.M

Pdf
Vimar - 19006.M - 1P 20AX 2-way switch Metal
Vimar - 19006.M - 1P 20AX 2-way switch Metal

19006.M
Wiring devices / Traditional wiring devices / ARKÉ / Devices

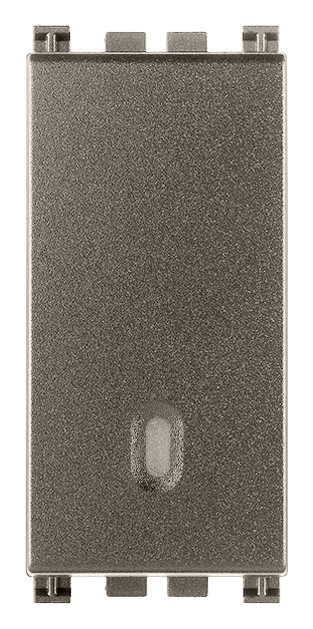

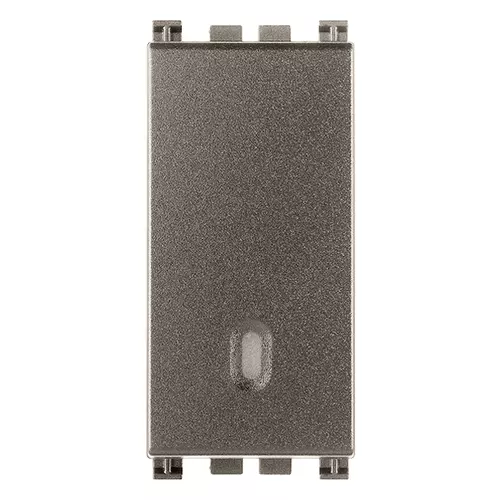

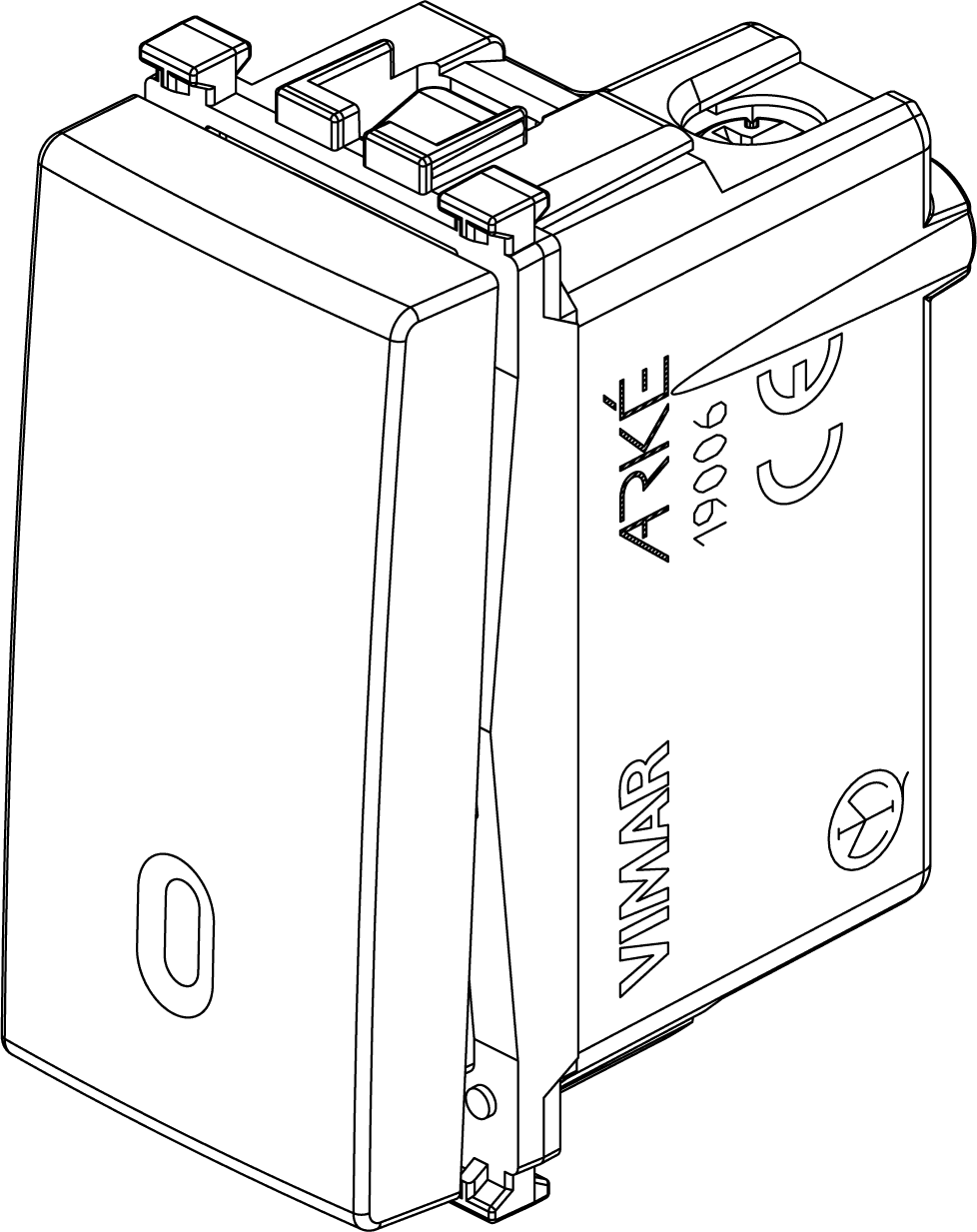

1P 20AX 2-way switch Metal
1P 20 AX 250 V~ 2-way switch, lightable, replaceable button, Metal. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

产品状态
3 - Active

Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Aluminium
RAL-number (similar)
9007
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No

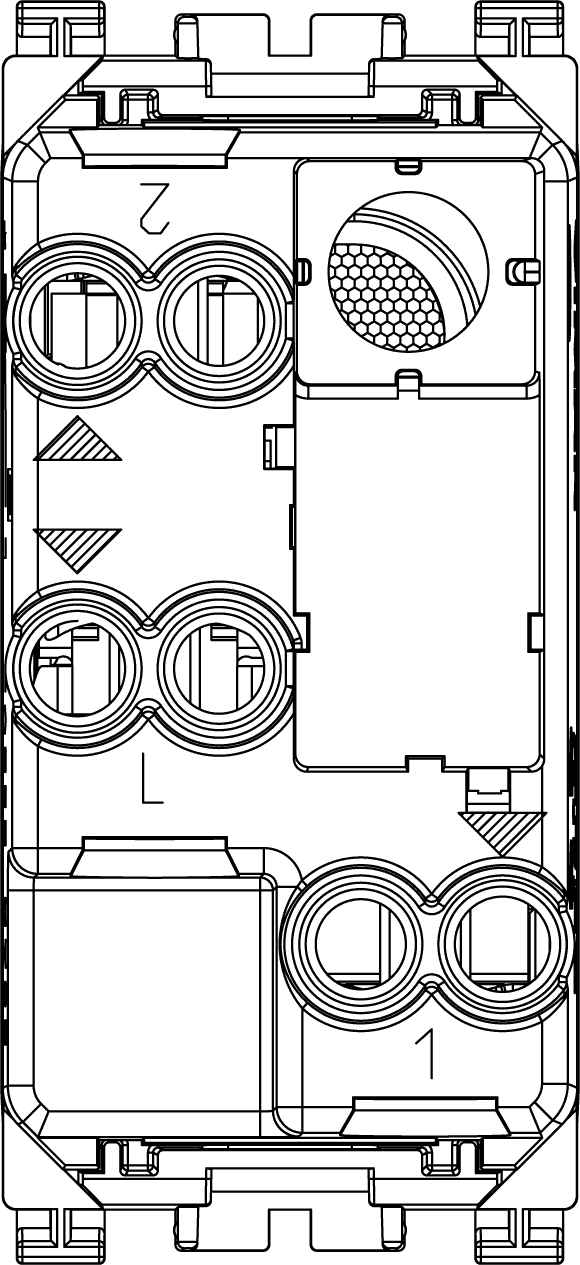

Connection type
Screwed terminal
Washing machine switch
No

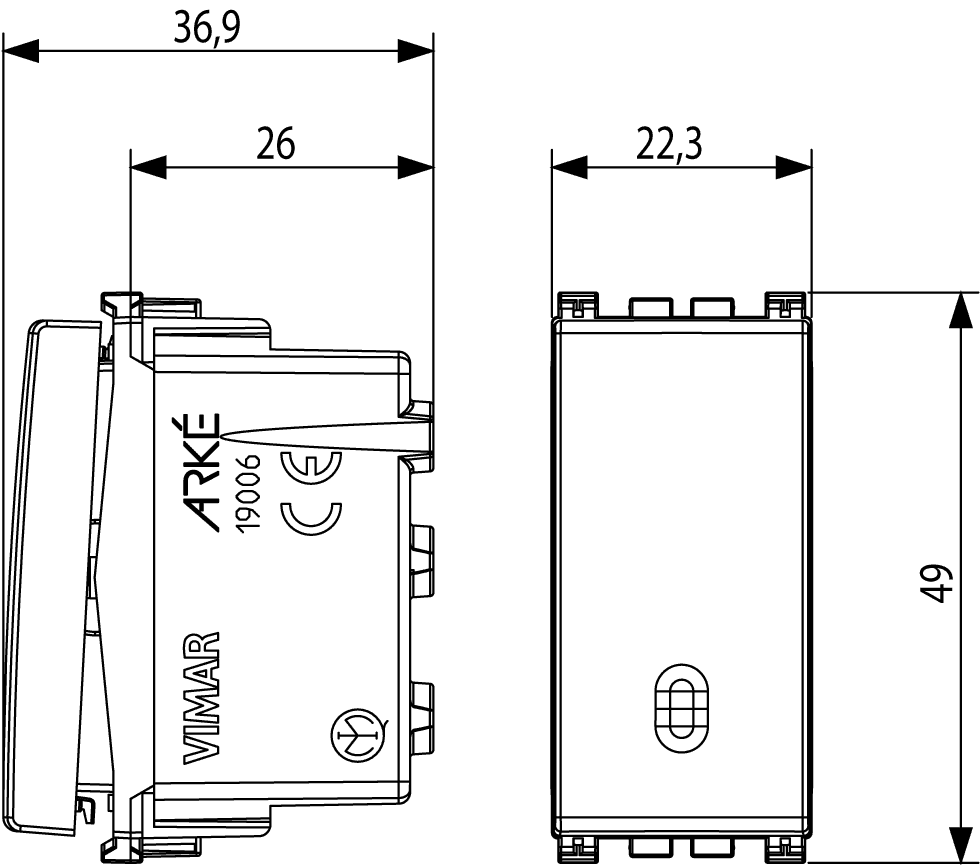

Device width
22,30 mm
Device height
49,00 mm
Device depth
36,90 mm
Built-in depth
26,00 mm

00. CE Marking - EU

01. IMQ - Italy

19. NOM - Mexico

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

最小订单数量: 50 NR

条形码

Barcode Qty 1 NR
8007352591097
1 NR
4.1x2.8x5.3 [cm]
29.3 [g]
Barcode Qty 50 NR
8007352591103
50 NR
21.4x11.6x14.2 [cm]
1,555 [g]
问题： Is the product compatible for assembly with mounting frame 19601 and cover plate 19641.74?
回答： Yes, article 19006.B is compatible with assembly on mounting frame 19601 and cover plate 19641.74.
